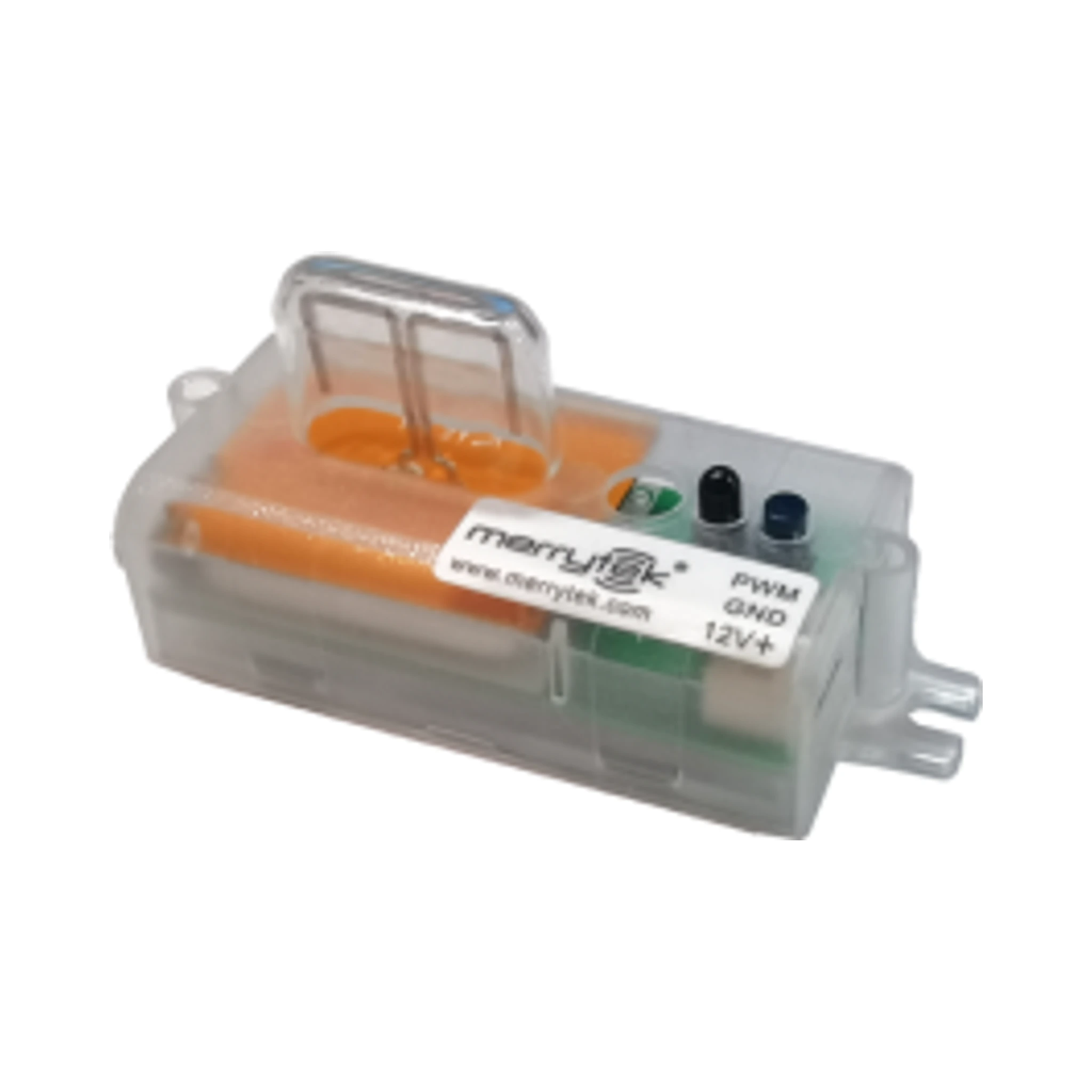

Luminaire Control Sensors
MC087D Series
microwavesensor
MC087D Series is designed for professional lighting-control and building-automation applications. Supported technologies: 5.8GHz, PWM, IP20.
Verified product data
Specifications
Input
- Voltage range
- 7.5-12VDC
- Operating current
- 25mA
- Ripple voltage
- <100mVp-p
Output
- PWM dimming signal
- 5V PWM
Sensing parameters
- Working frequency
- 5.8 G Hz ±75 MHz, ISM band.
- Transmit power
- 1mW Max.
- Detection Area
- 100%/50%
- Delay setting (Hold Time)
- 5s/5min/10min/30min
- Stand-by Period
- 0s/3min/10min/+∞
- Daylight setting
- Ordinary light control / 30Lux/50Lux/100lux/Disable; Light control priority / on / off; Light control priority / 30Lux / 150Lux; Light control priority / 50Lux / 150Lux; Light control priority / 100lux / 200Lux
- Dimming ratio (Stand-by DIM Level)
- 10%/30%
- Detection range (100% sensitivity radius)
- Ceiling installation 3m high: 0.3m/S ≥4m, 1m/S ≥2.5m
- Installation height
- 3m typical (6m Max)
- 3dB beam angle (XZ plane)
- 90 degrees @Xz plane
- 3dB beam angle (YZ plane)
- 130 degrees @Yz plane
Environment
- Working environment temperature
- -25~70℃
- Storage temperature
- -40℃~+80℃ Humidity: 85% (non-condensing)
Certification Standard
- Comply with certification
- RED
- Environmental protection requirements
- Comply with EU RoHS requirements
- Protection level
- IP20
Others
- Wiring method
- Terminal / 3pin 2.0mm terminal
- Installation requirements
- Built-in installation
- Product size
- See dimensional drawing
- Packaging requirements
- Partition + outer box (K=A)
- Net weight
- 18g
- Lifespan
- 5-year warranty@Ta
