Luminaire Control Sensors

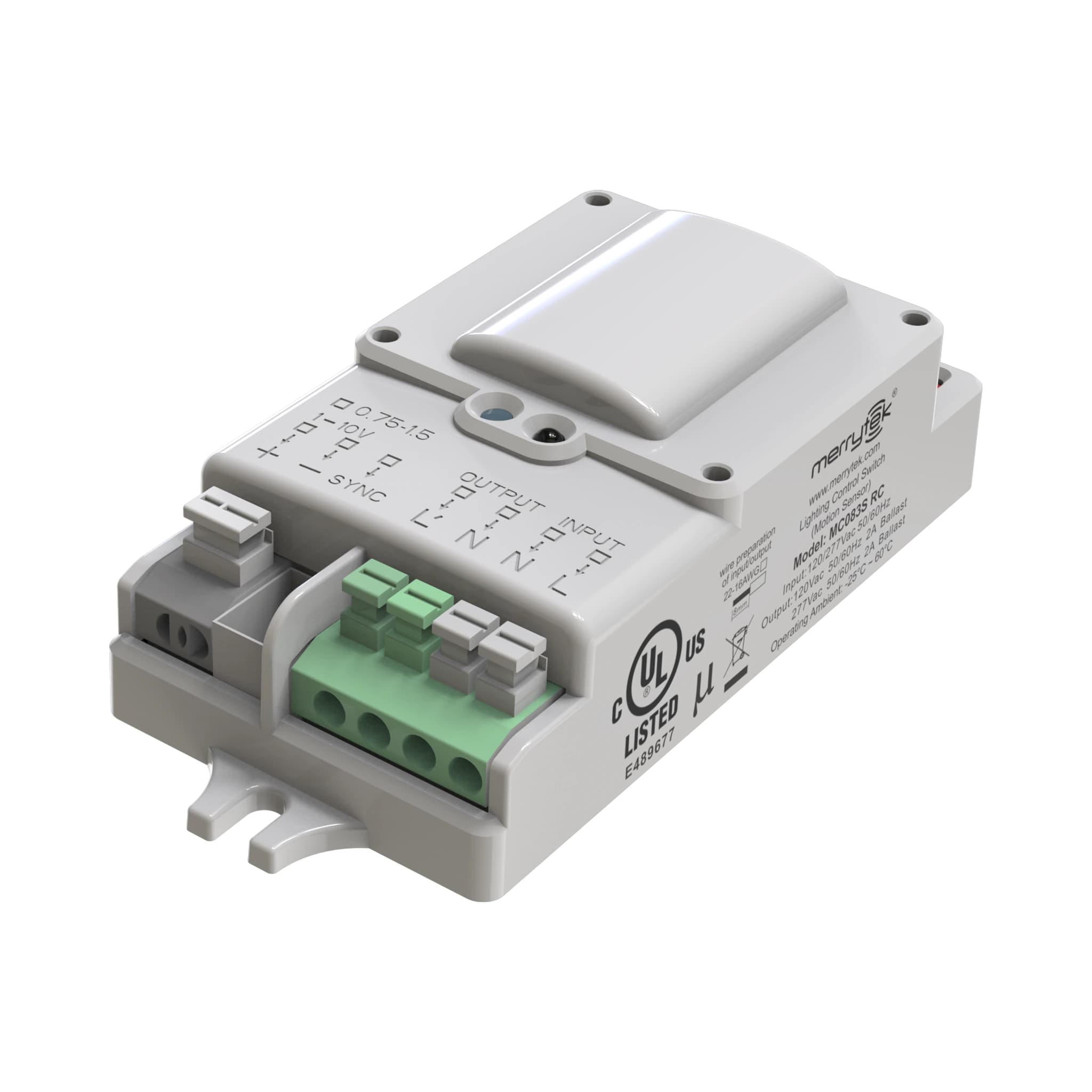

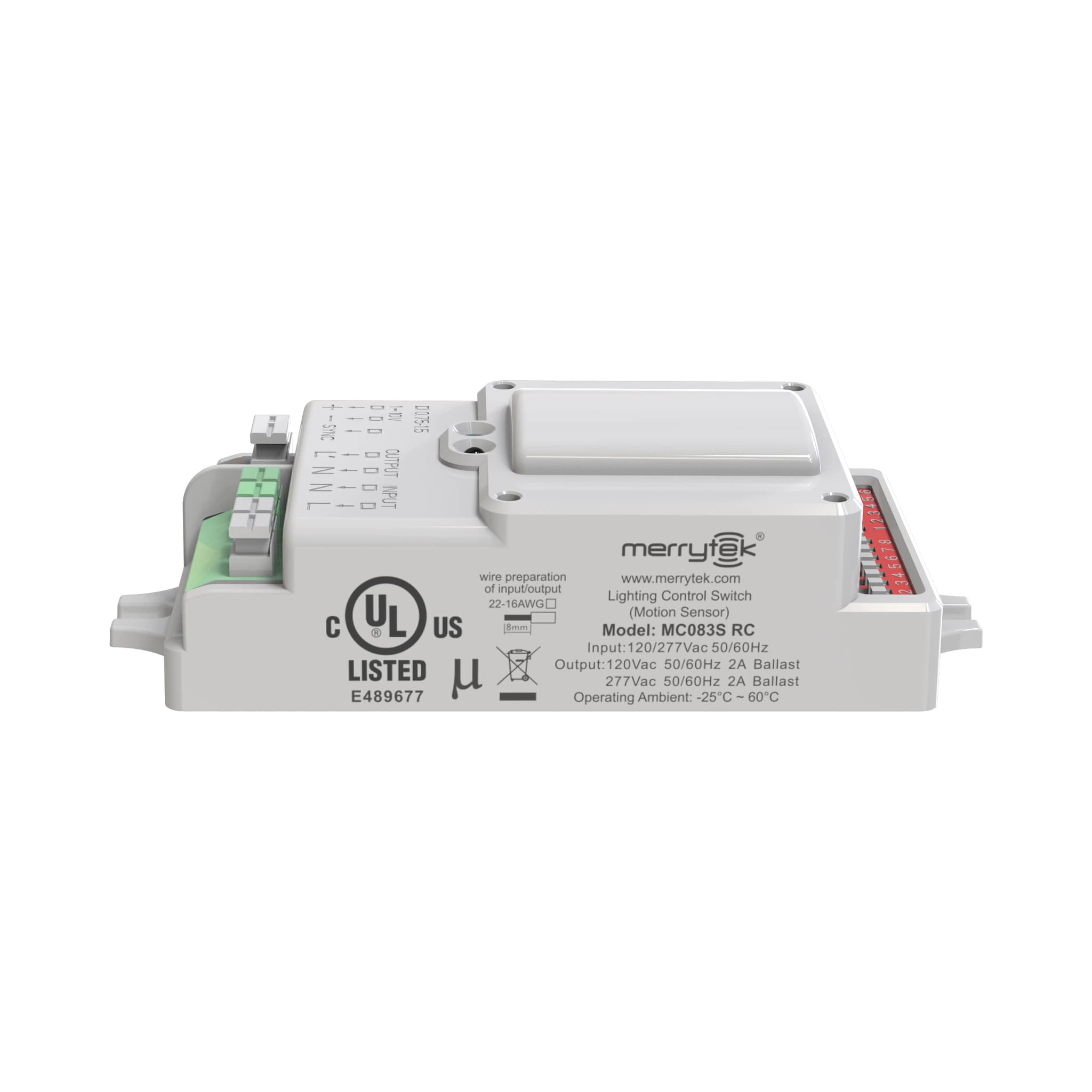

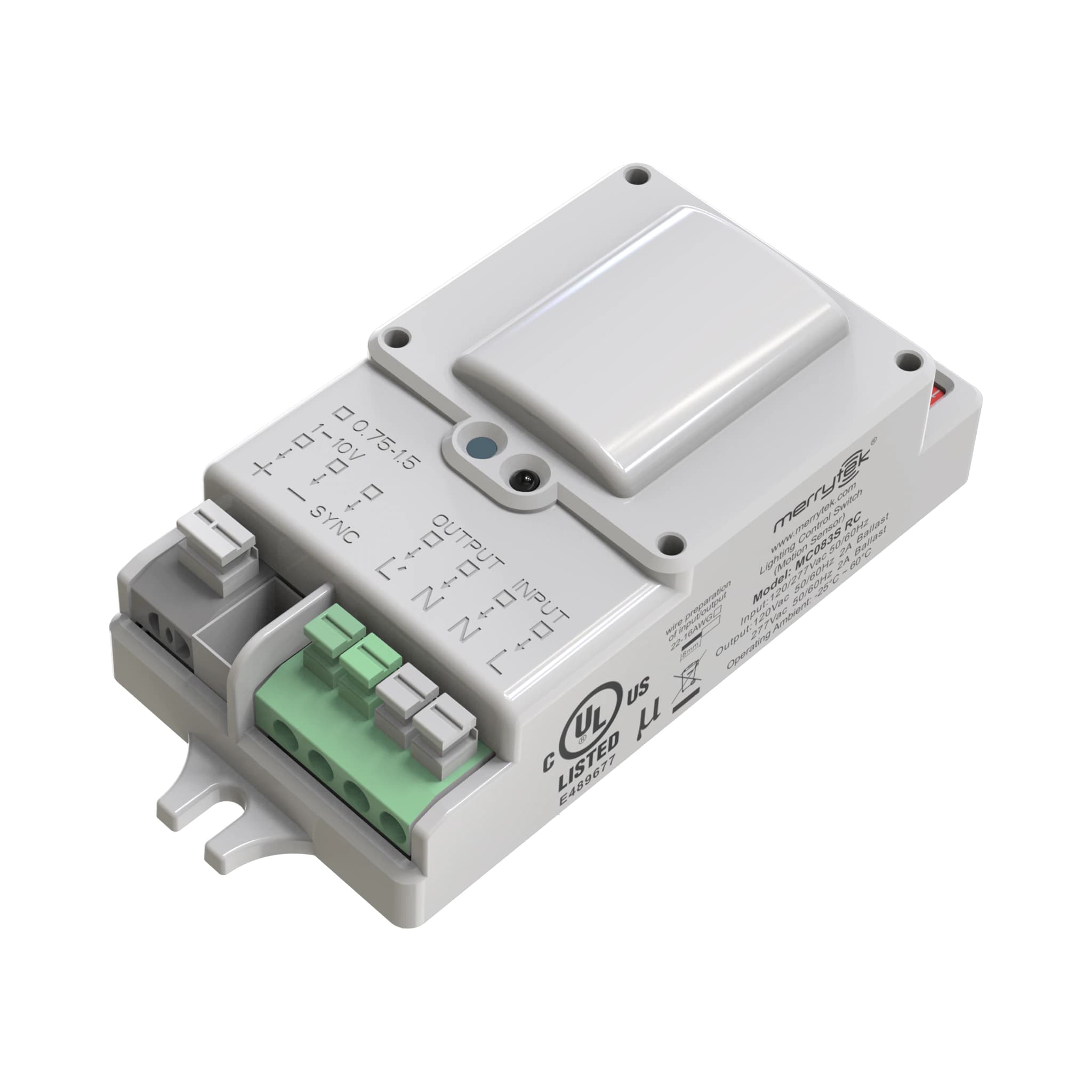

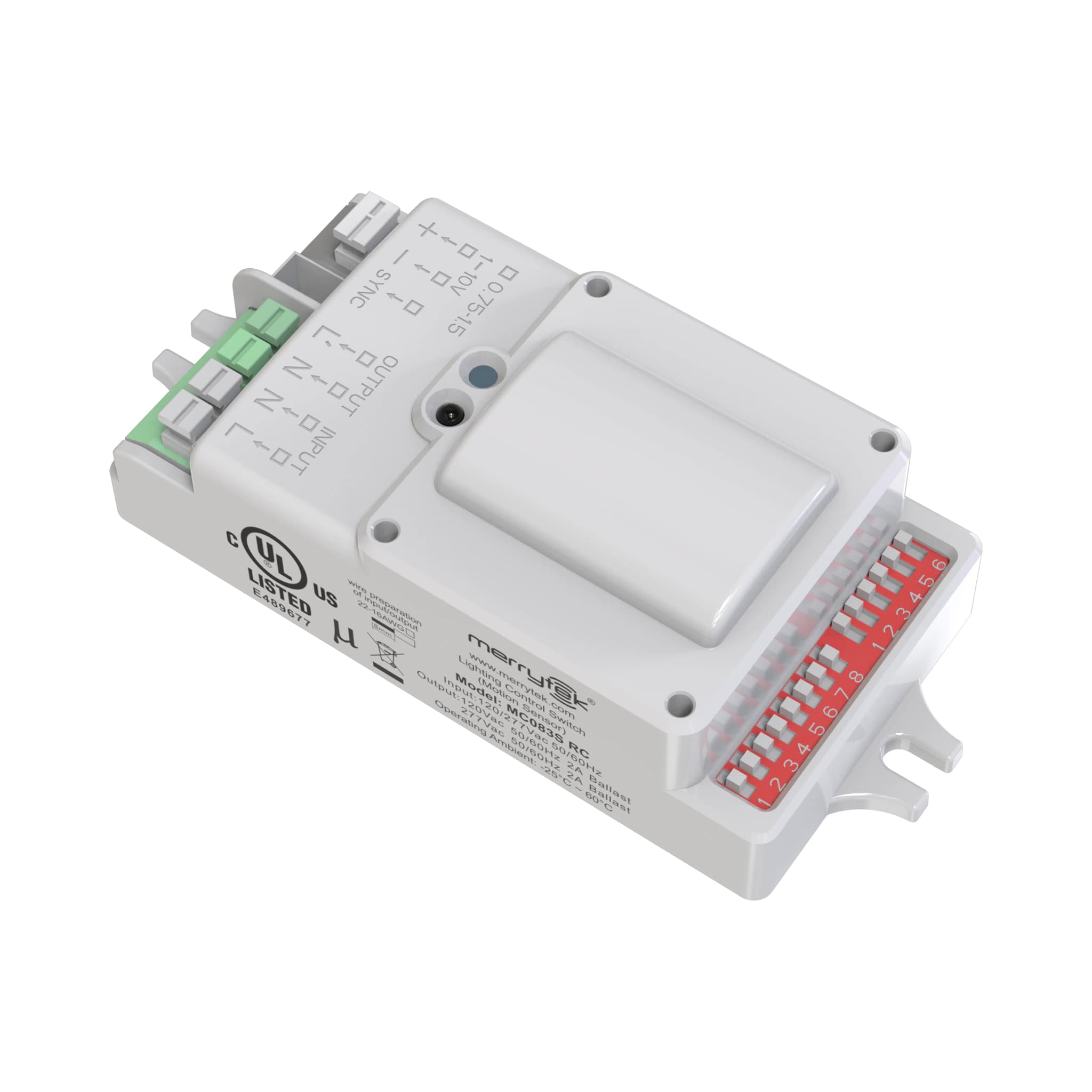

MC083S RC
Luminaire Control Sensors
MC083S RC is designed for professional lighting-control and building-automation applications.
Verified product data
Specifications
Input
- Operating voltage
- 108-305VAC, 50/60Hz
- Rated voltage
- 120/277VAC, 50/60Hz
- Stand-by power
- <=1W
- Surge test
- L-N: 1kV
Output
- Working mode
- ON/OFF
- Load capacity
- 2A at 120VAC / 3A at 277VAC / 3A at 220-240VAC
- Maximum surge capacity
- 30A at 230VAC cold start
Sensor
- Operating frequency
- 5.8G Hz +/-75MHz, ISM band
- Detection radius
- >=3m
Installation
- Mounting height
- 10m typical / 12m maximum
Environment
- IP rating
- IP20
