Luminaire Control Sensors
MC079D RC3
Luminaire Control Sensors
MC079D RC3 is designed for professional lighting-control and building-automation applications.
Verified product data
Specifications
Input
- Rated voltage
- 12V DC +/-1V
- Stand-by power
- <0.3W
Output
- Working mode
- 0-10V DC dimming
Sensor
- Operating frequency
- 5.8G Hz +/-75MHz, ISM band
- Transmit power
- 1mW maximum
- Hold time
- 5s / 30s / 1 / 3 / 5 / 10 / 20 / 30min
- Detection area
- 25% / 50% / 75% / 100%
- Stand-by dim level
- 10% / 20% / 30% / 50%
- Stand-by period
- 0s / 10s / 1 / 3 / 5 / 10 / 30min / infinite
- Daylight threshold
- 5 / 15 / 30 / 50 / 100 / 150Lux / Disable
Installation
- Mounting height
- 15m maximum
Environment
- IP rating
- IP65 (A) / IP20 (B)
Mechanical

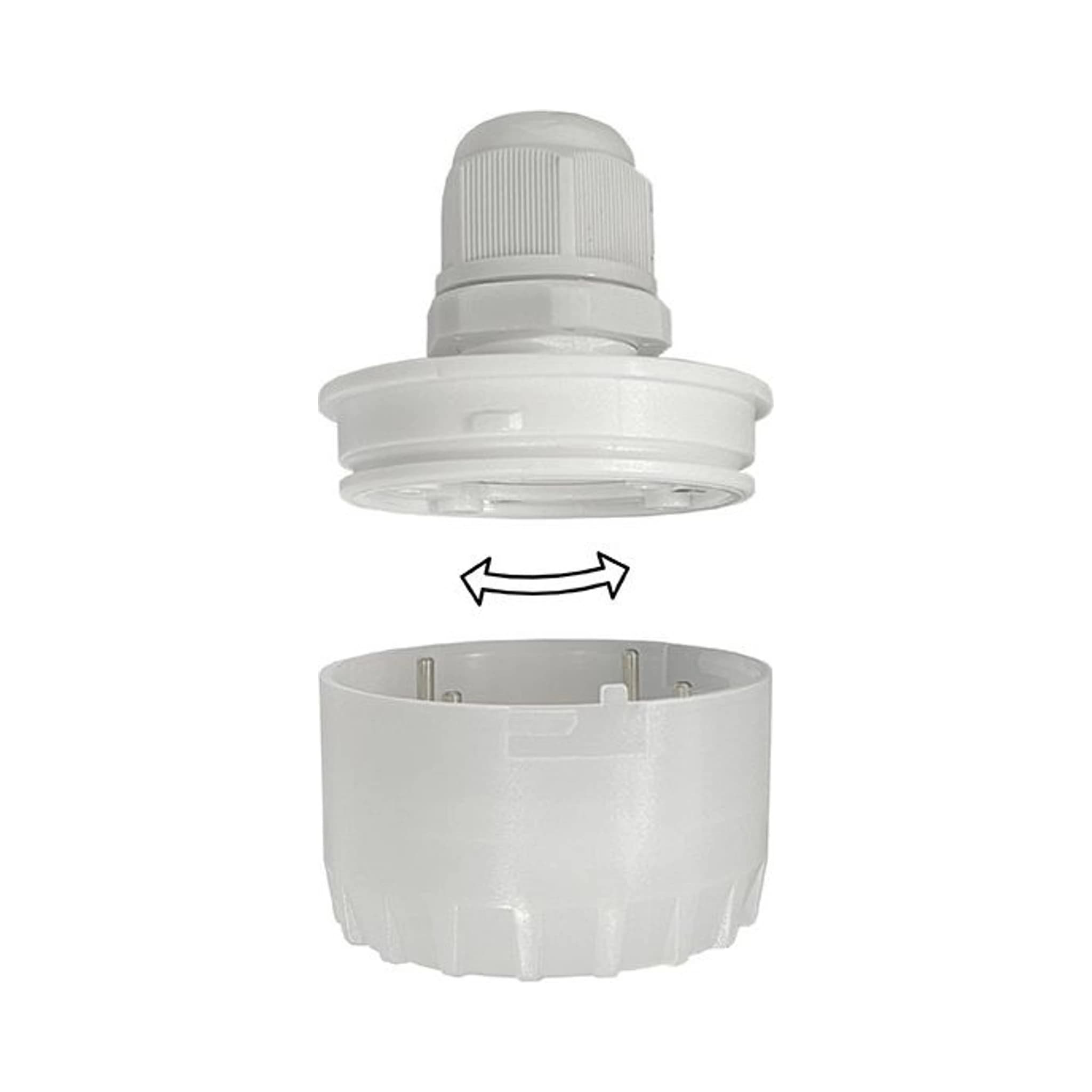

- Sensor head
- Replaceable, waterproof plug-in head
