Smart Drivers

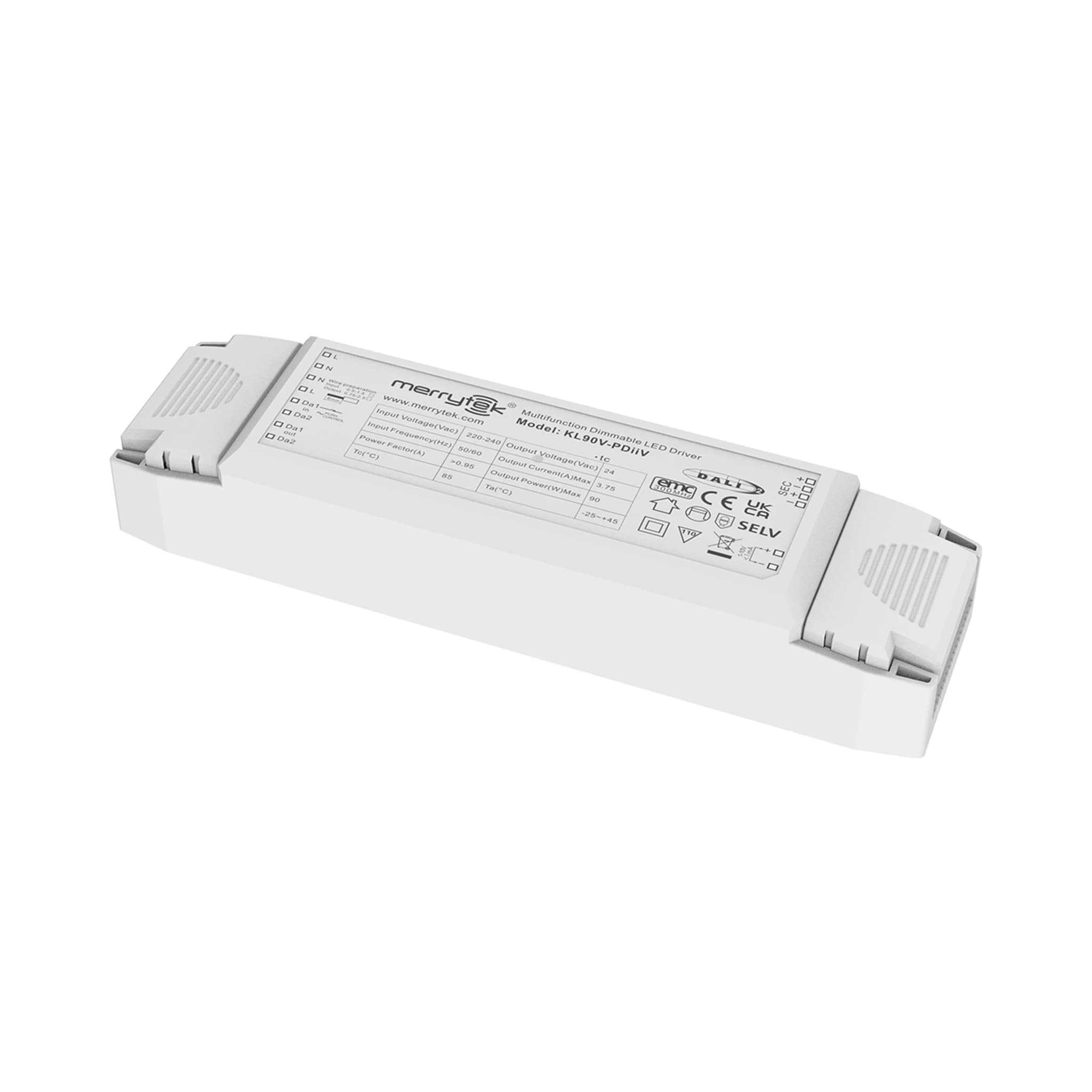

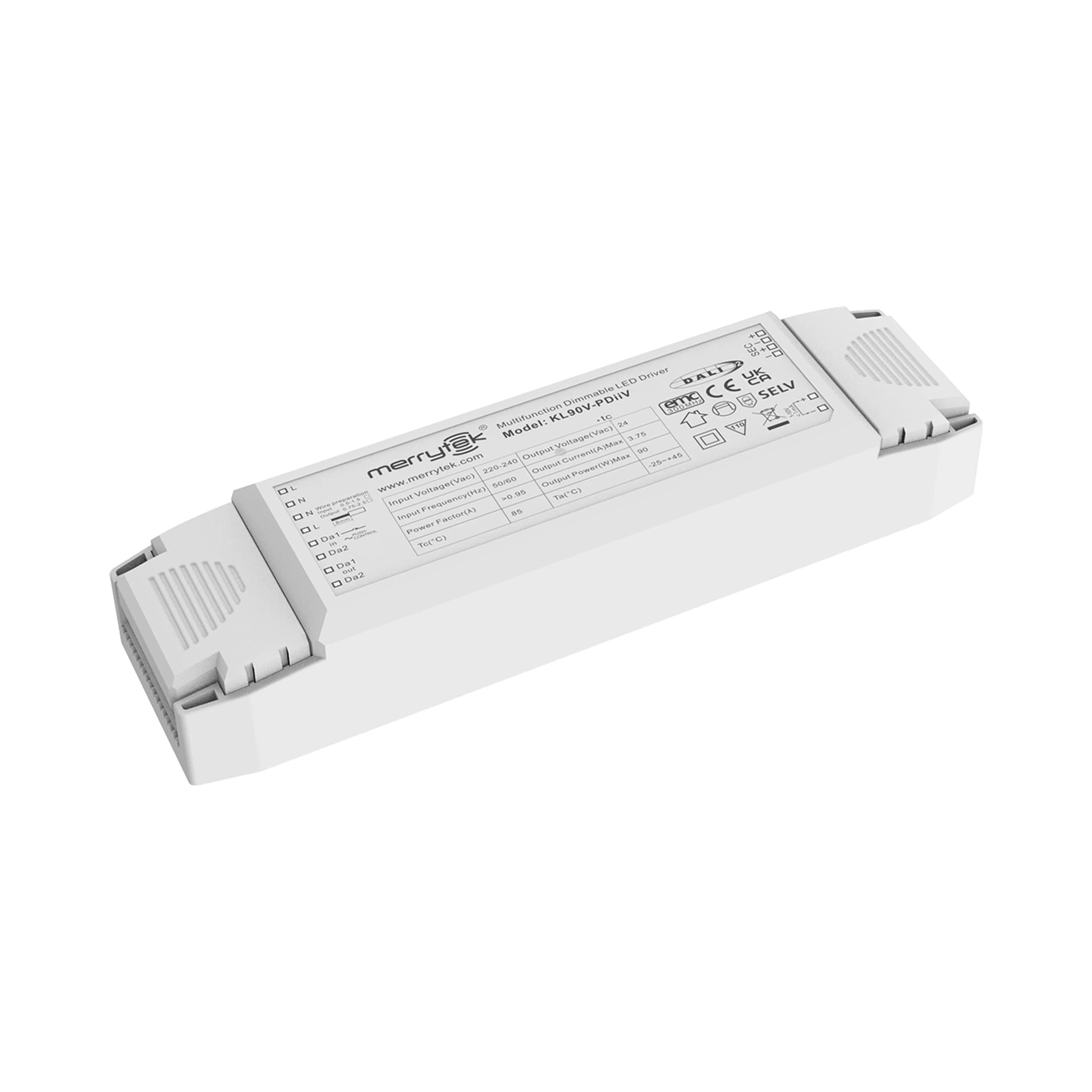

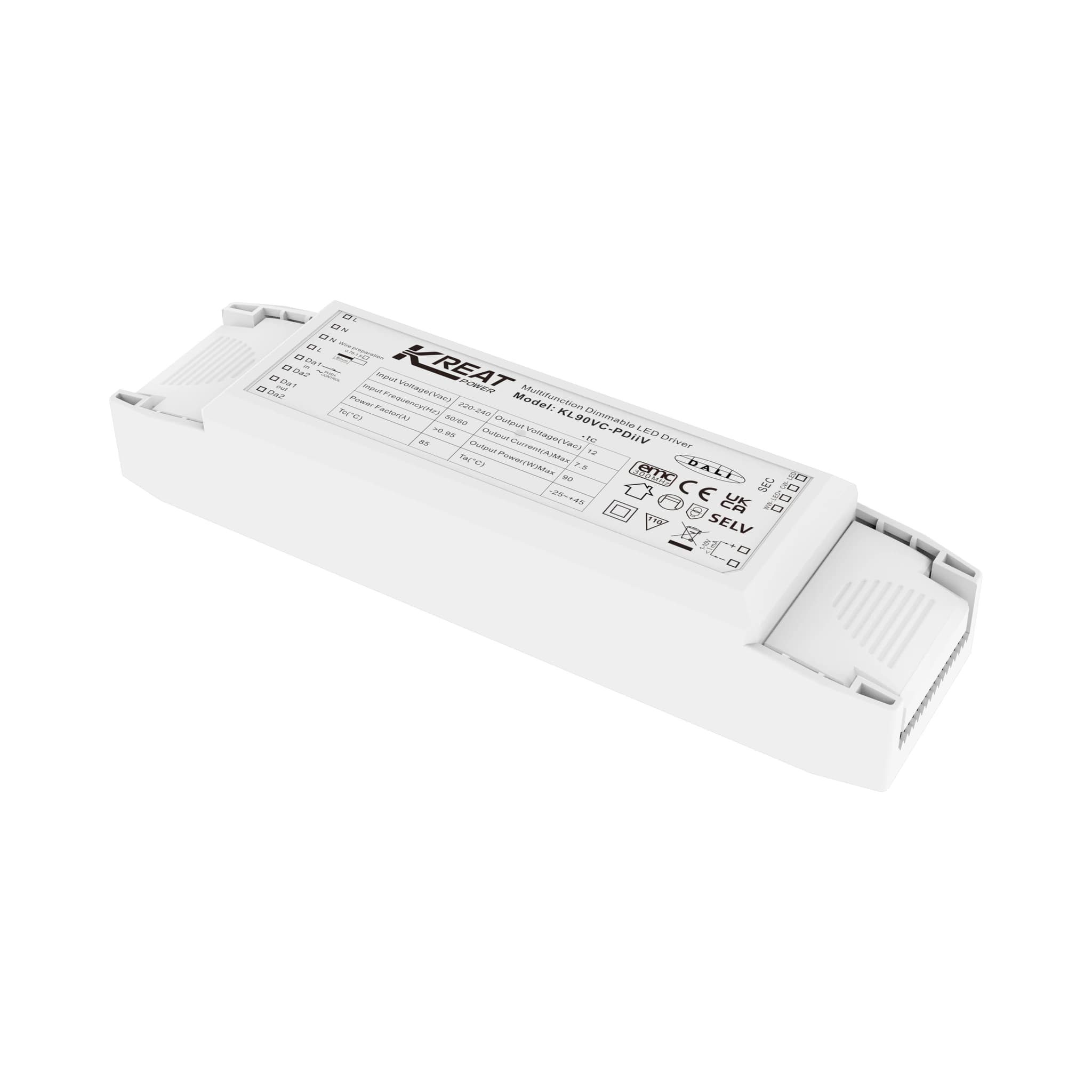

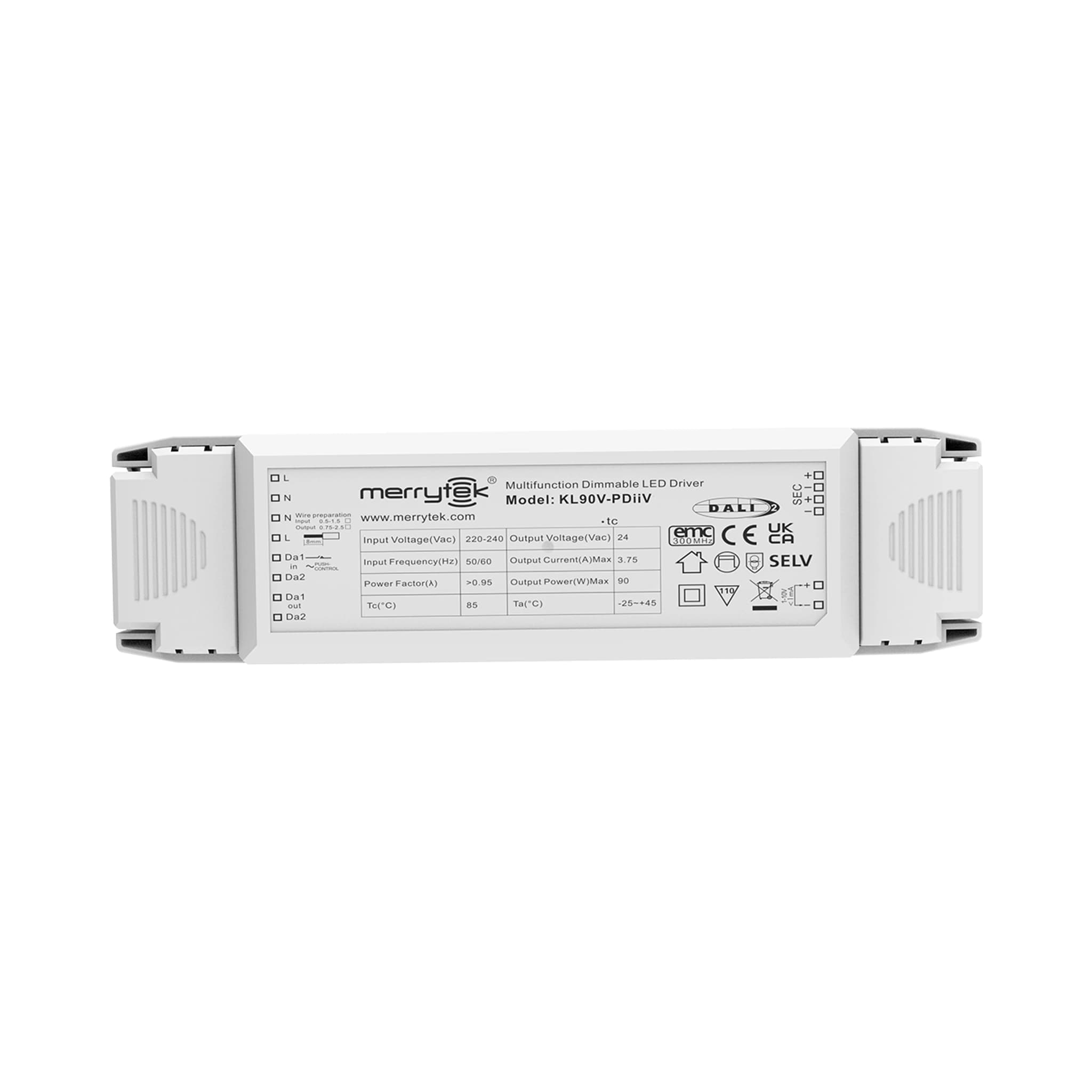

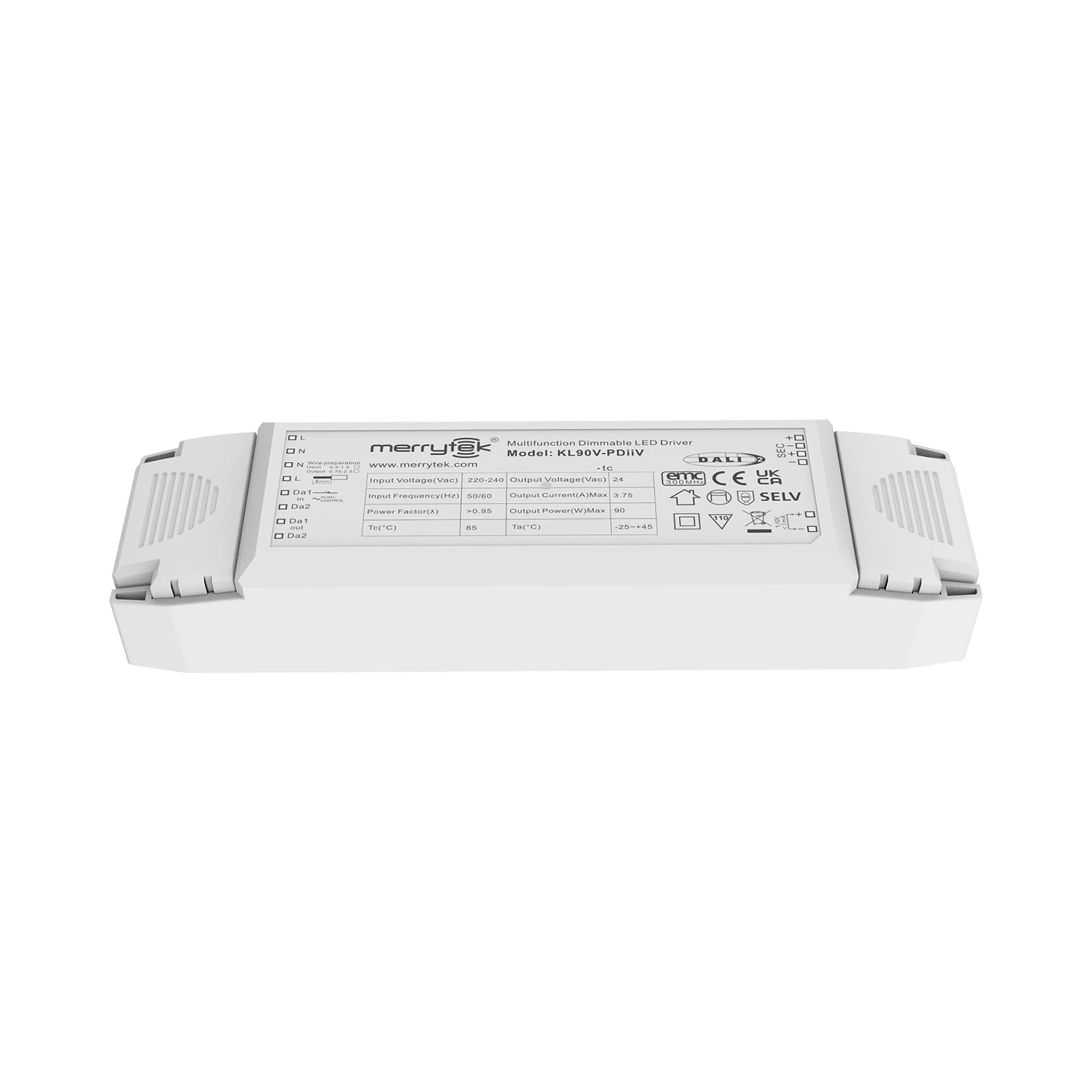

KL90VC-PDiiV
DALI dimming power - DT8
KL90VC-PDiiV is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, 1–10V, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Primary PUSH, secondary 1-10V, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac, 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 91% Max. @230Vac
- Output current/voltage/power
- 7.5A / 12V / 90W
- Safety Standard
- EN61347-1, EN61347-2-13
- EMC standards
- EN55015 EN61547 EN61000-3-2 EN61000-3-3
- DALI standard
- ICE 62386 102, 209
- Certification
- CE
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- 202*58*35
