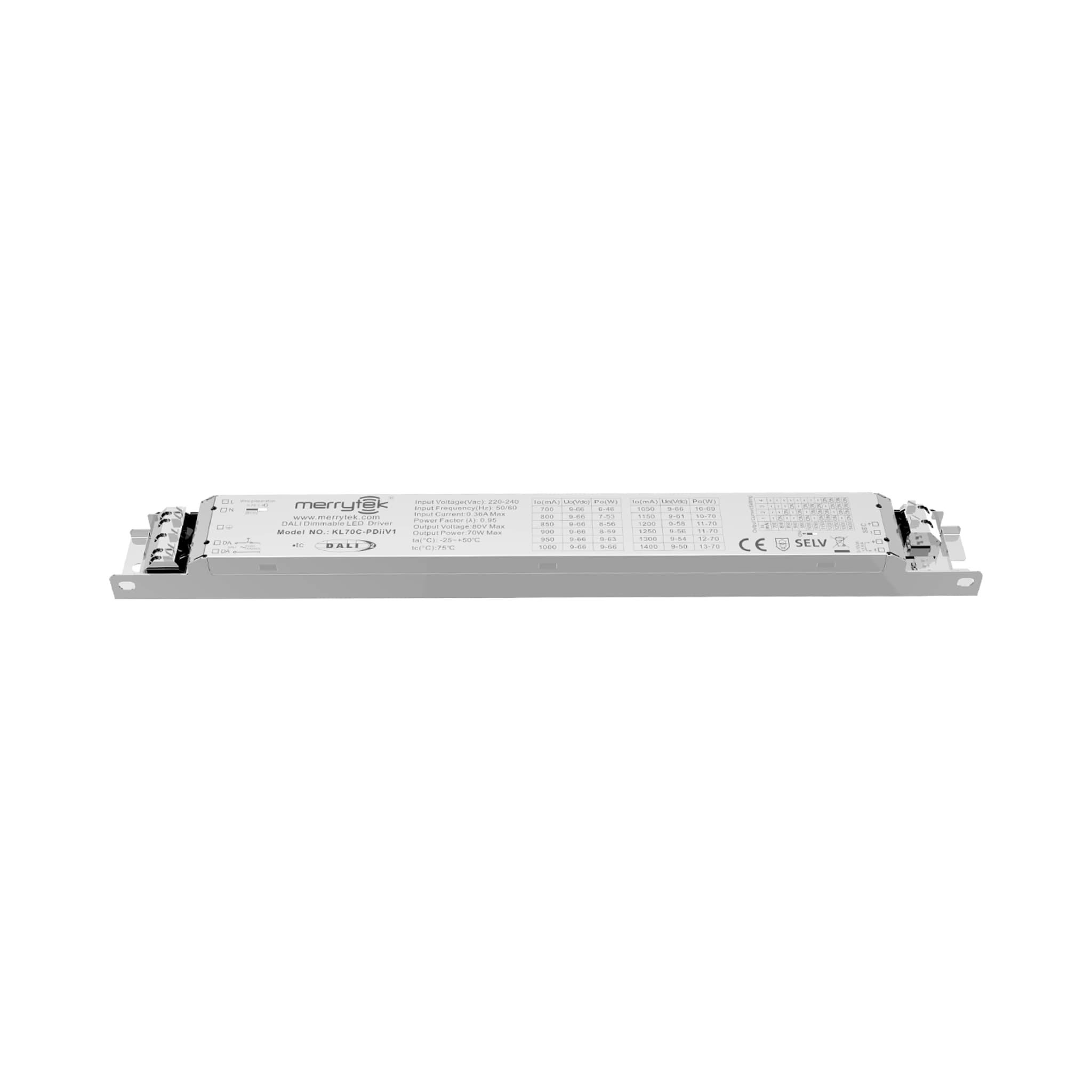

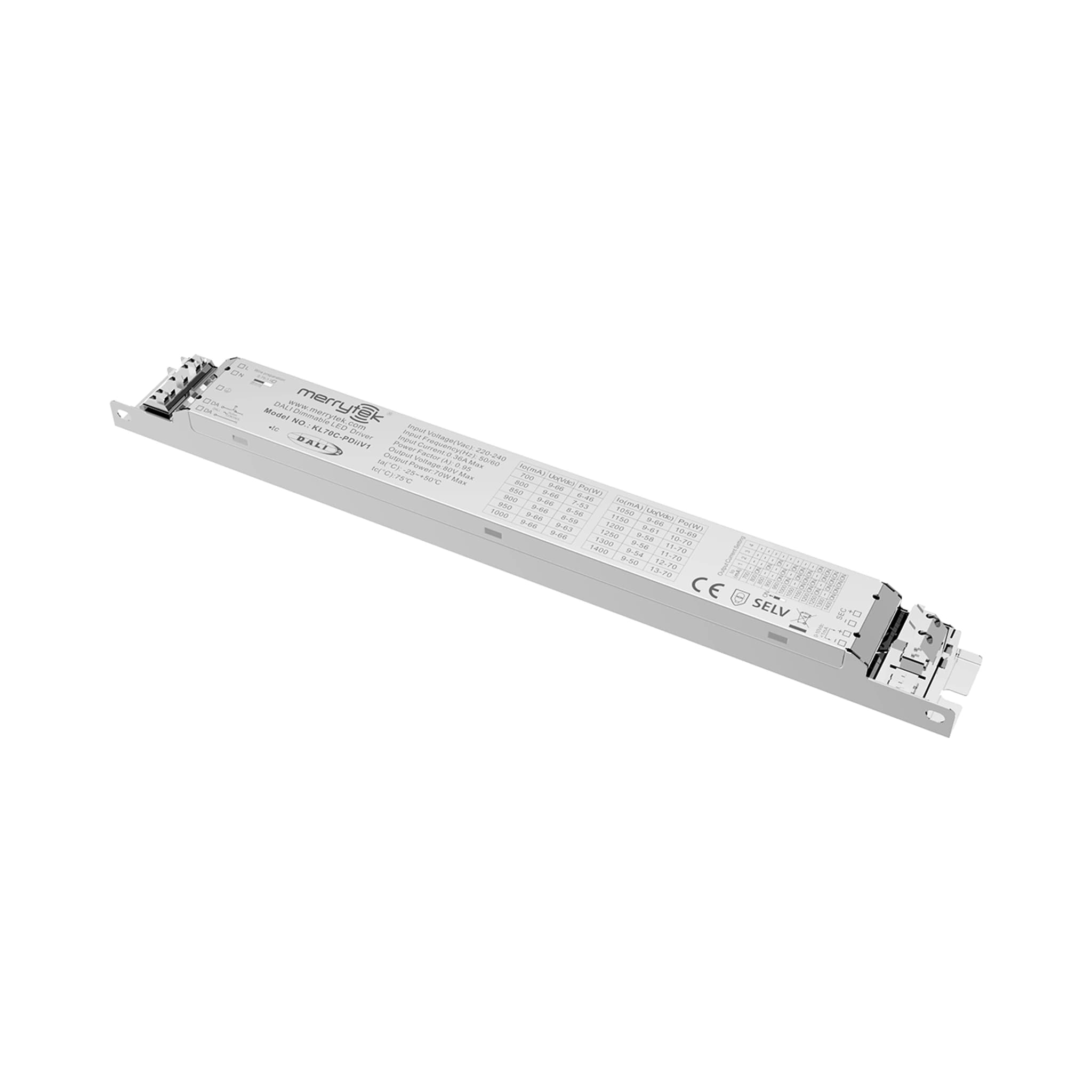

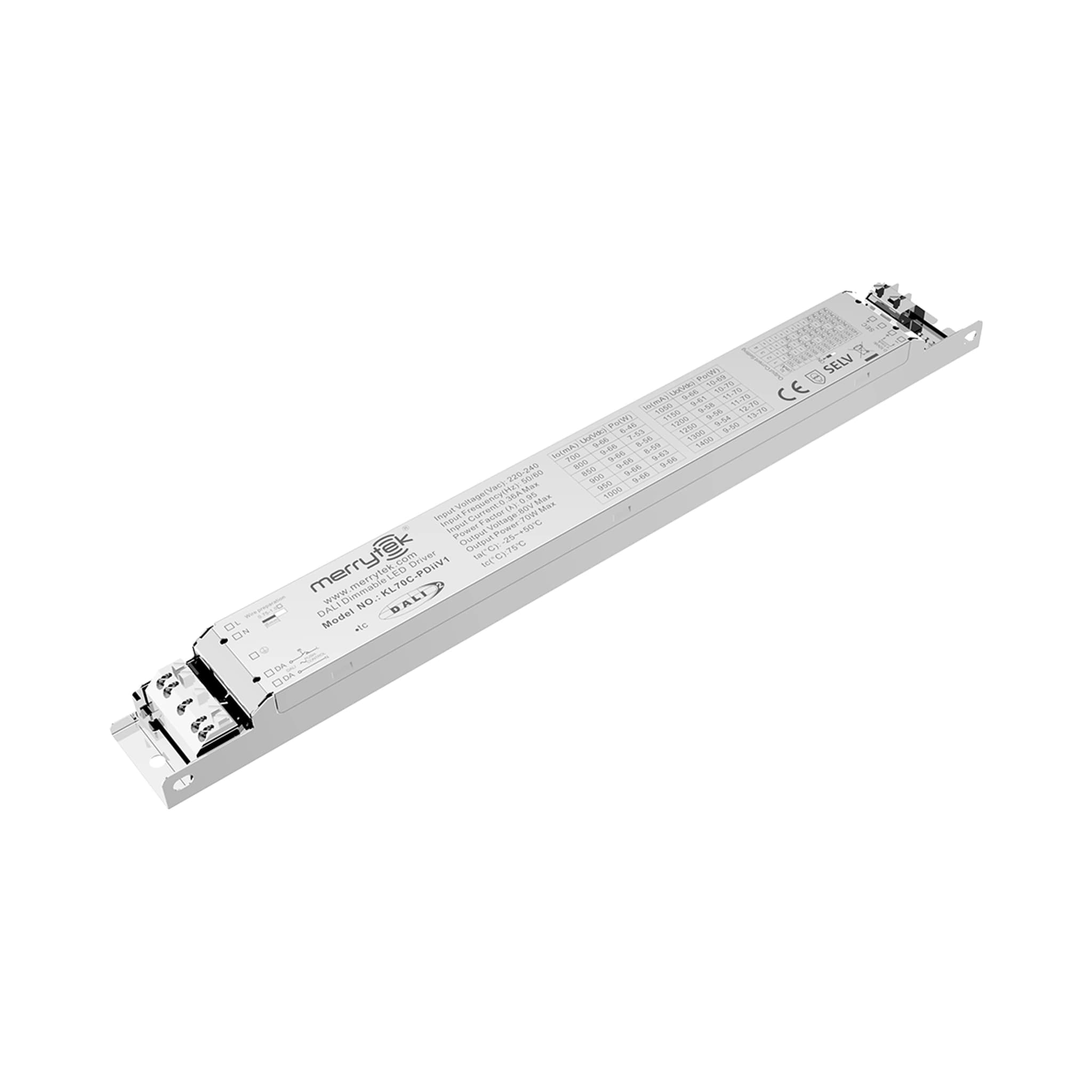

KL70C-PDiiV1
DALI dimming power
KL70C-PDiiV1 is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, 1–10V, PWM.
Verified product data
Specifications
Technical specifications

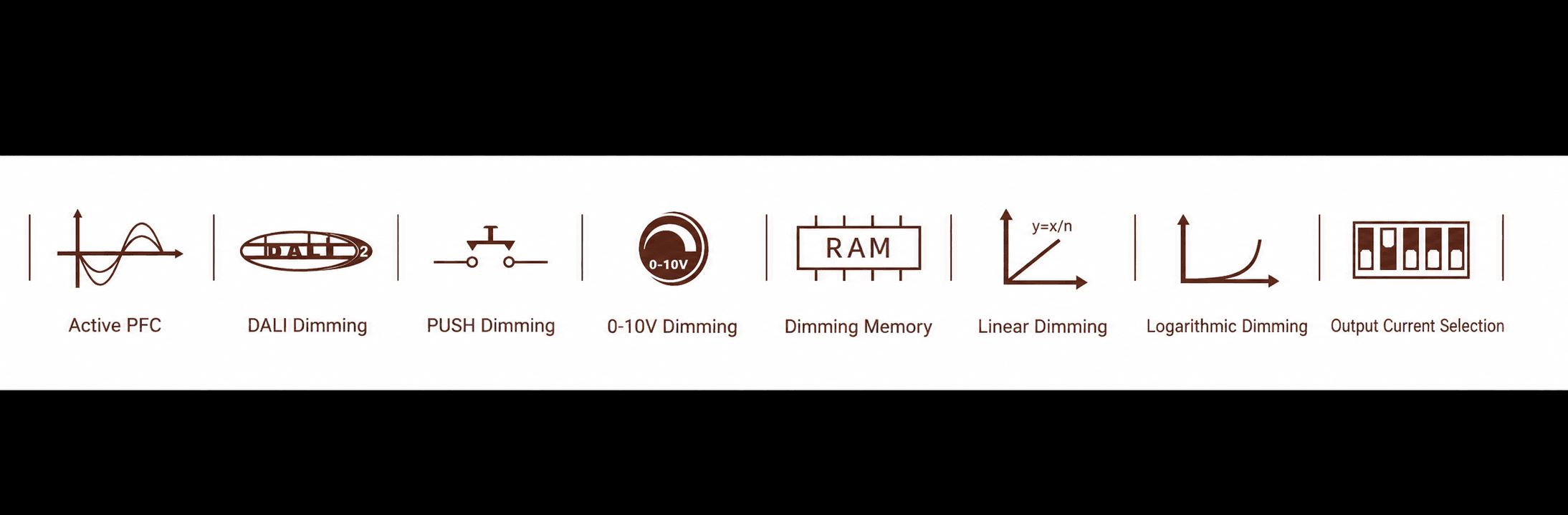

- Dimming interface
- Primary PUSH, secondary 1-10V, primary PWM, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac, 50Hz /60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 87% Max. @230Vac
- Output current/voltage/power
- 700mA / 9-66Vdc / 46.2W 800mA / 9-66Vdc / 52.8W850mA / 9-66Vdc / 56.1W 900mA / 9-66Vdc / 59.4W950mA / 9-66Vdc / 62.1W 1000mA / 9-66Vdc / 66W1050mA / 9-66Vdc / 69.3W 1150mA / 9-61Vdc / 70W1200mA / 9-58Vdc / 70W 1250mA / 9-56Vdc / 70W1300mA / 9-54Vdc / 70W 1400mA / 9-50Vdc / 70W
- Safety Standard
- EN61347-1, EN61347-2-13
- EMC standards
- EN55015 EN61547 EN61000-3-2 EN61000-3-3
- DALI standard
- ICE 62386 102, 207
- Certification
- CE, UKCA
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- 284*30*20.5
