Smart Drivers

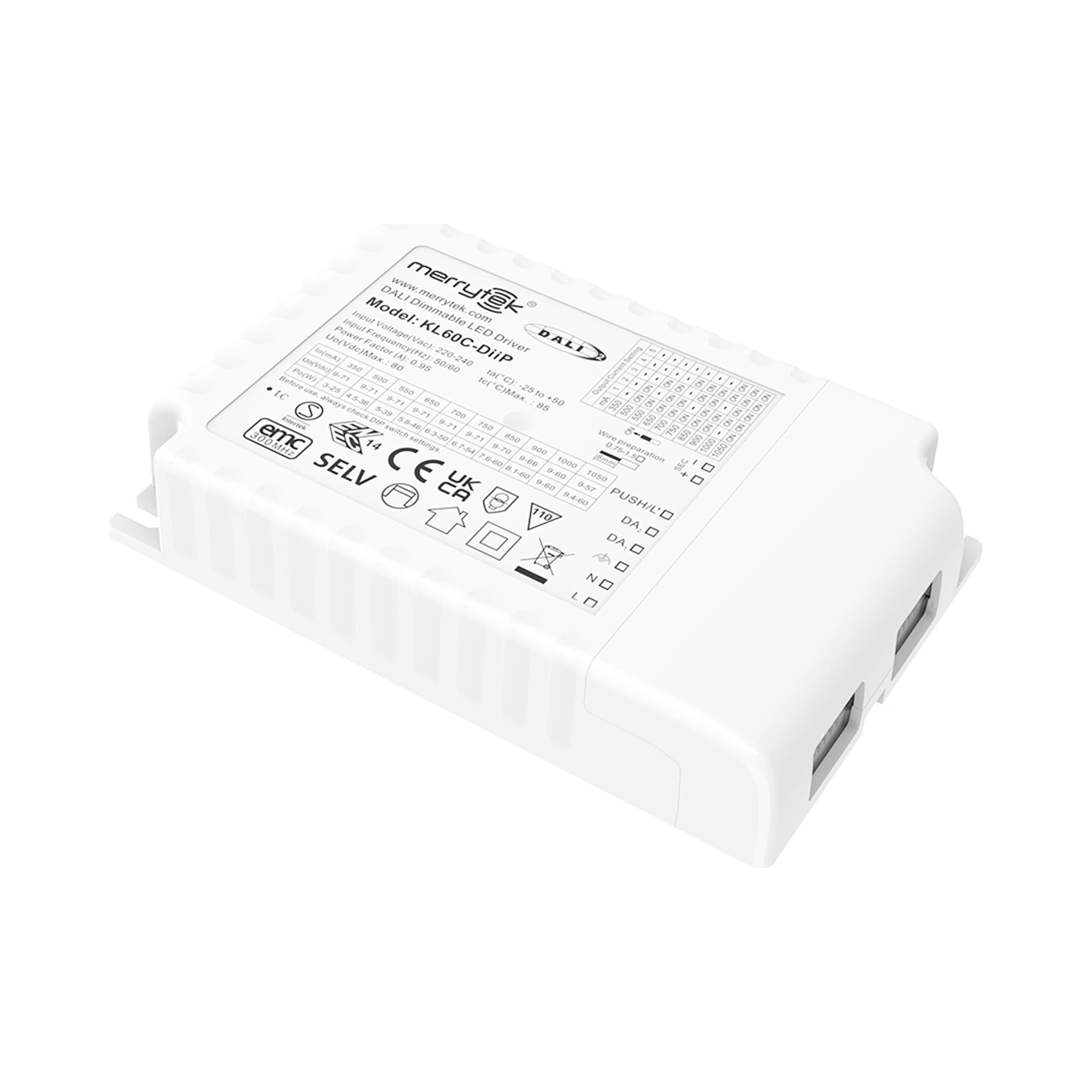

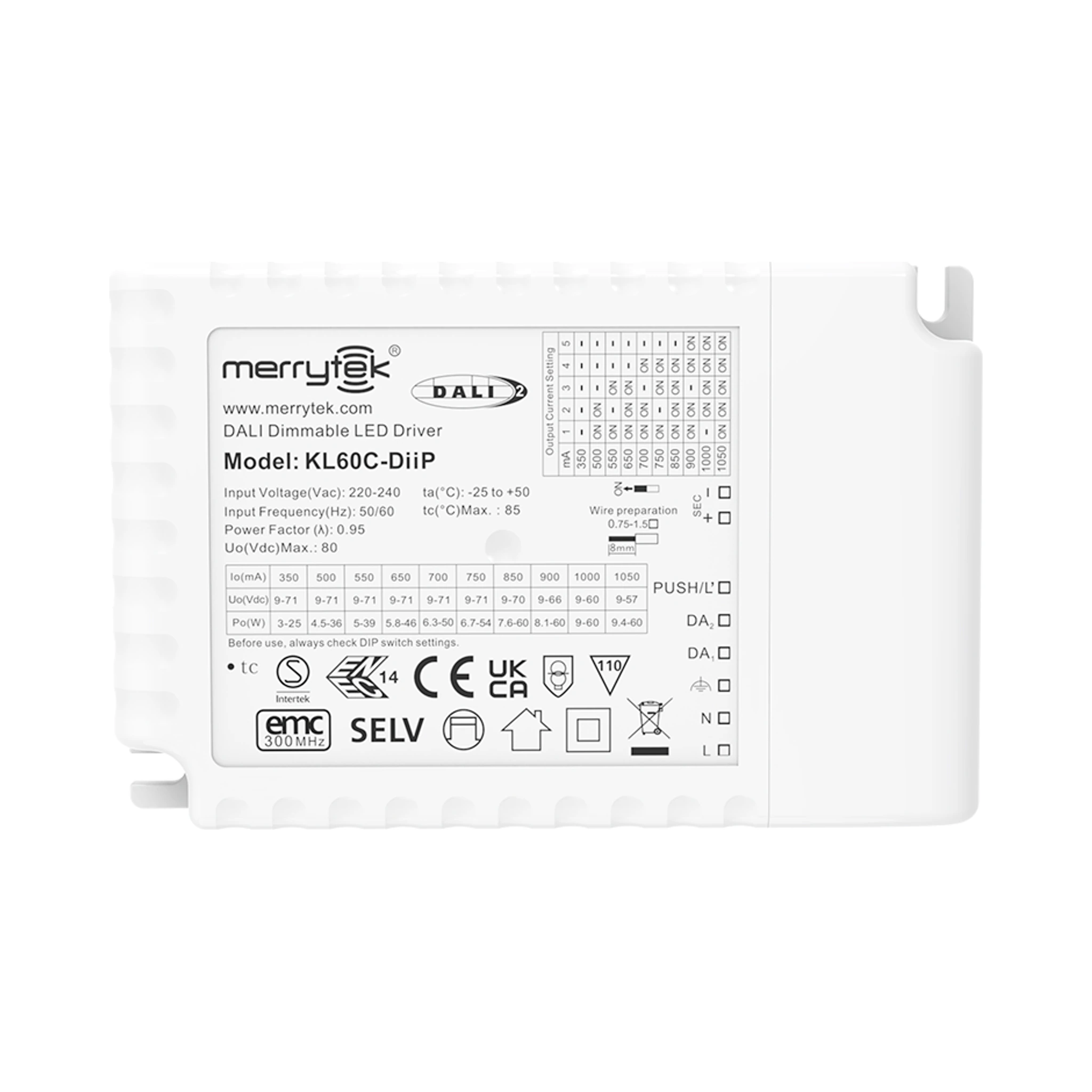

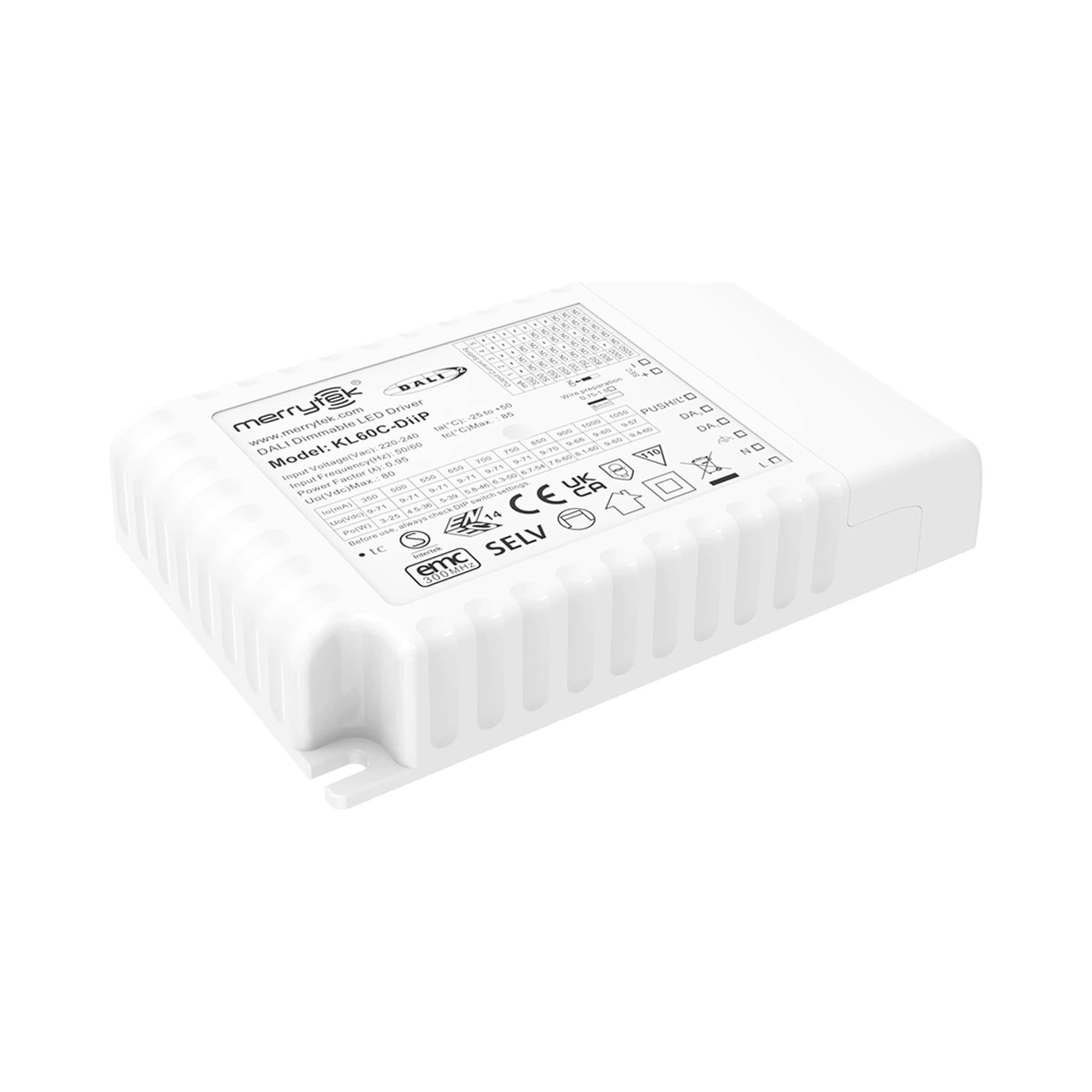

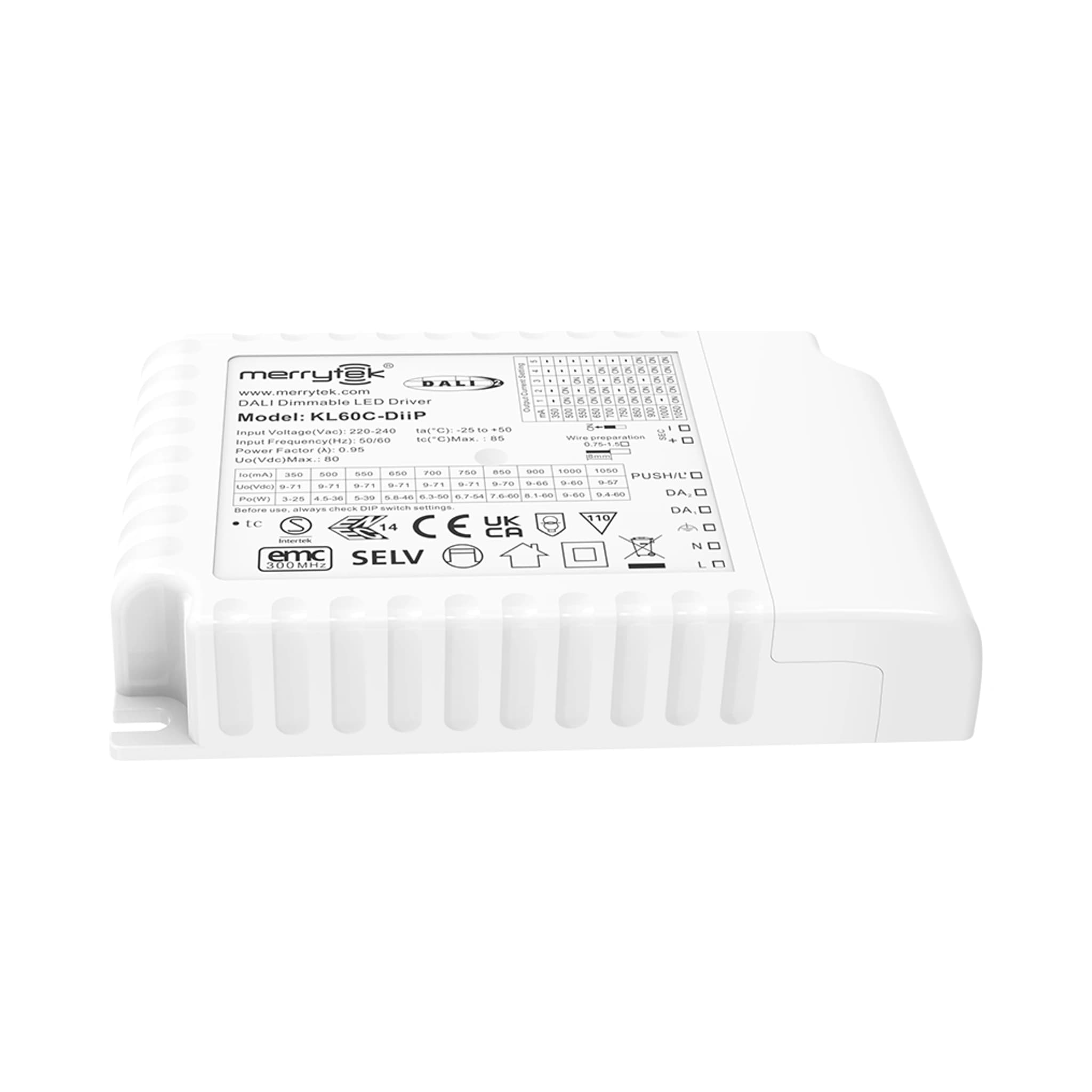

KL60C-DiiP
DALI dimming power
KL60C-DiiP is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Junior PUSH, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac, 50Hz /60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 86% Max. @230Vac
- Output current/voltage/power
- 350mA / 9-71Vdc / 24.8W 500mA / 9-71Vdc / 35.5W550mA / 9-71Vdc / 39W 650mA / 9-71Vdc / 46W700mA / 9-71Vdc / 49.7W 750mA / 9-71Vdc / 53.25W850mA / 9-70Vdc / 60W 900mA / 9-66Vdc / 60W1000mA / 9-60Vdc / 60W 1050mA / 9-57Vdc / 60W
- Safety Standard
- EN61347-1, EN61347-2-13
- EMC standards
- EN55015 EN61547 EN61000-3-2 EN61000-3-3
- DALI standard
- ICE 62386 102, 207
- Certification
- CE, ENEC
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- 123*79*23.8
