Smart Drivers

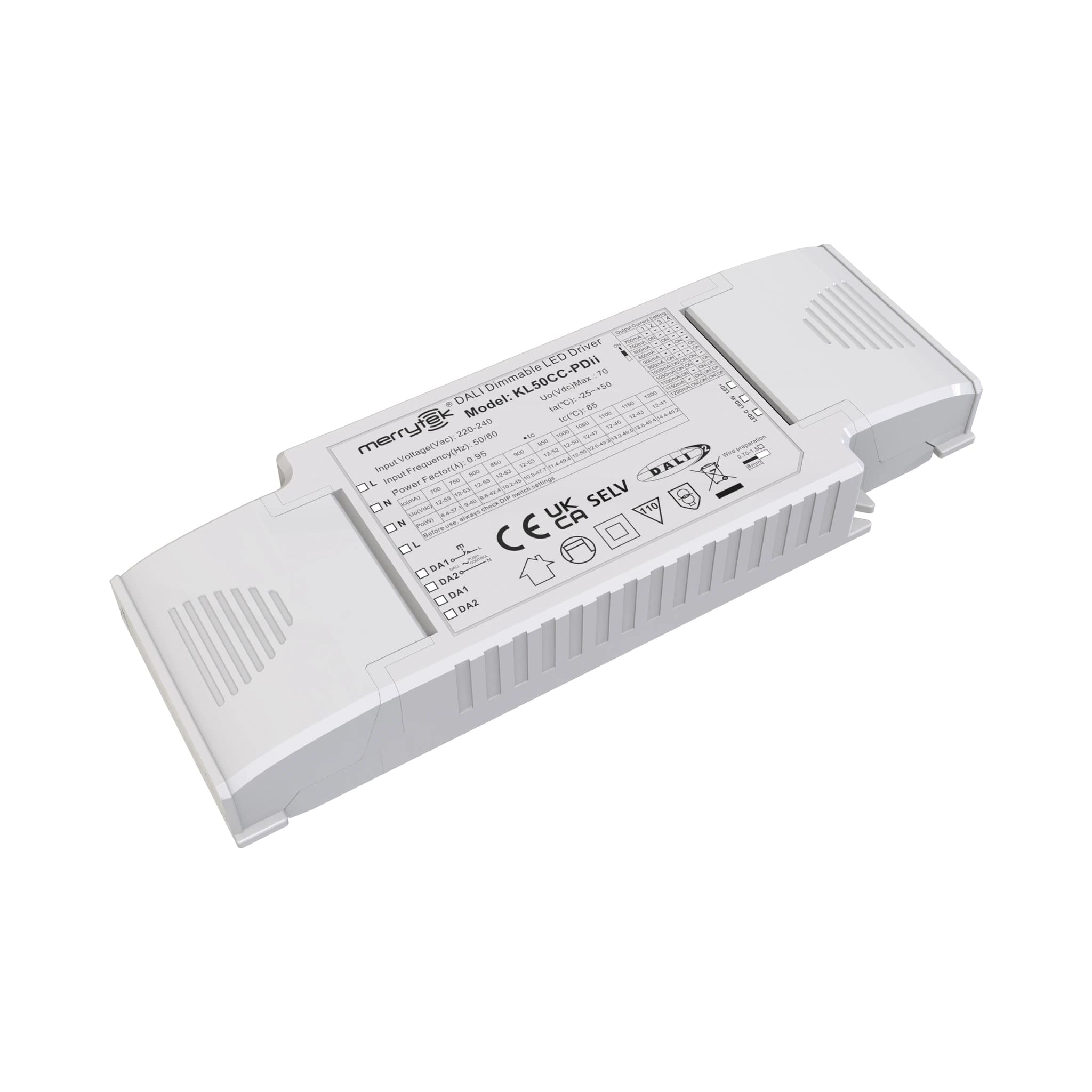

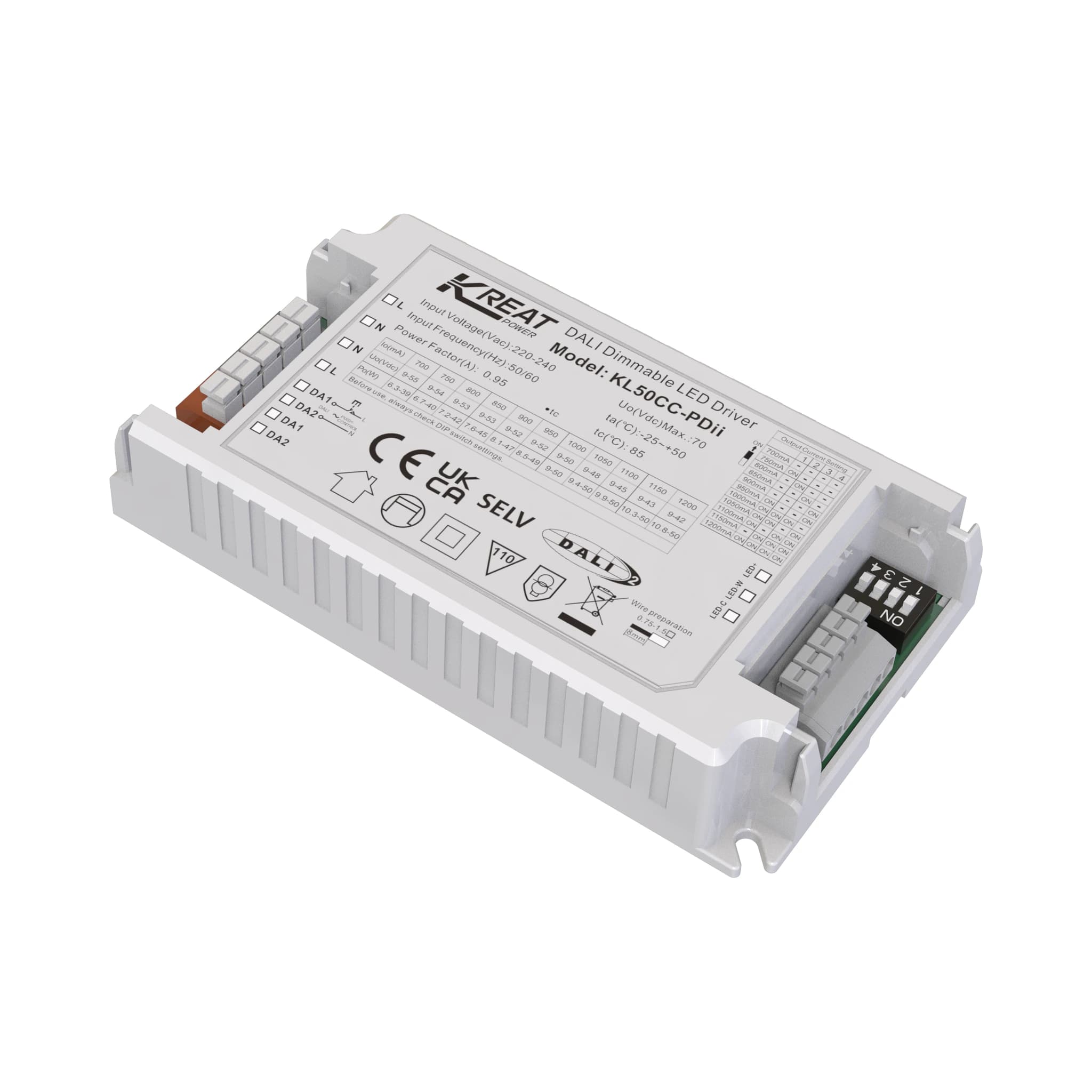

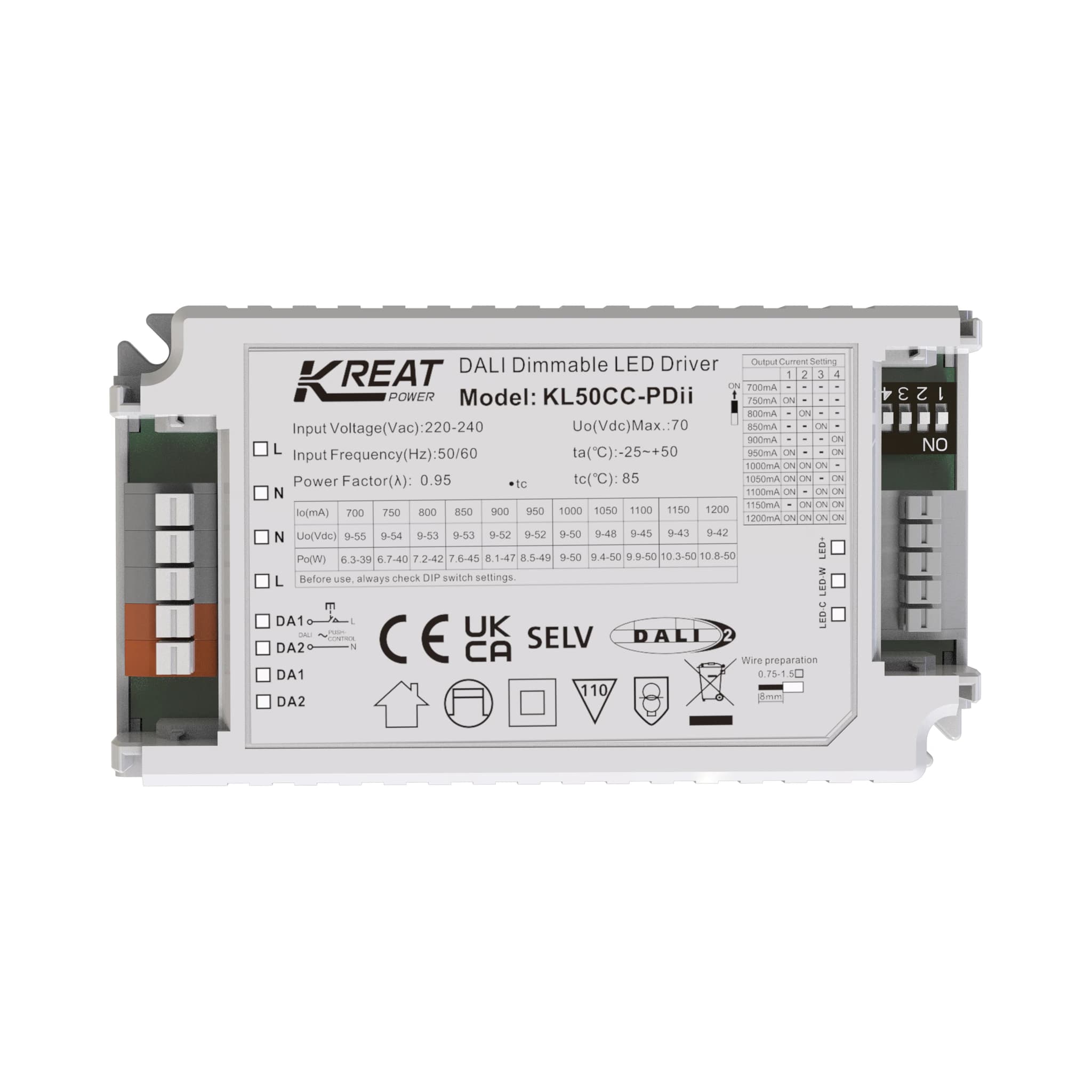

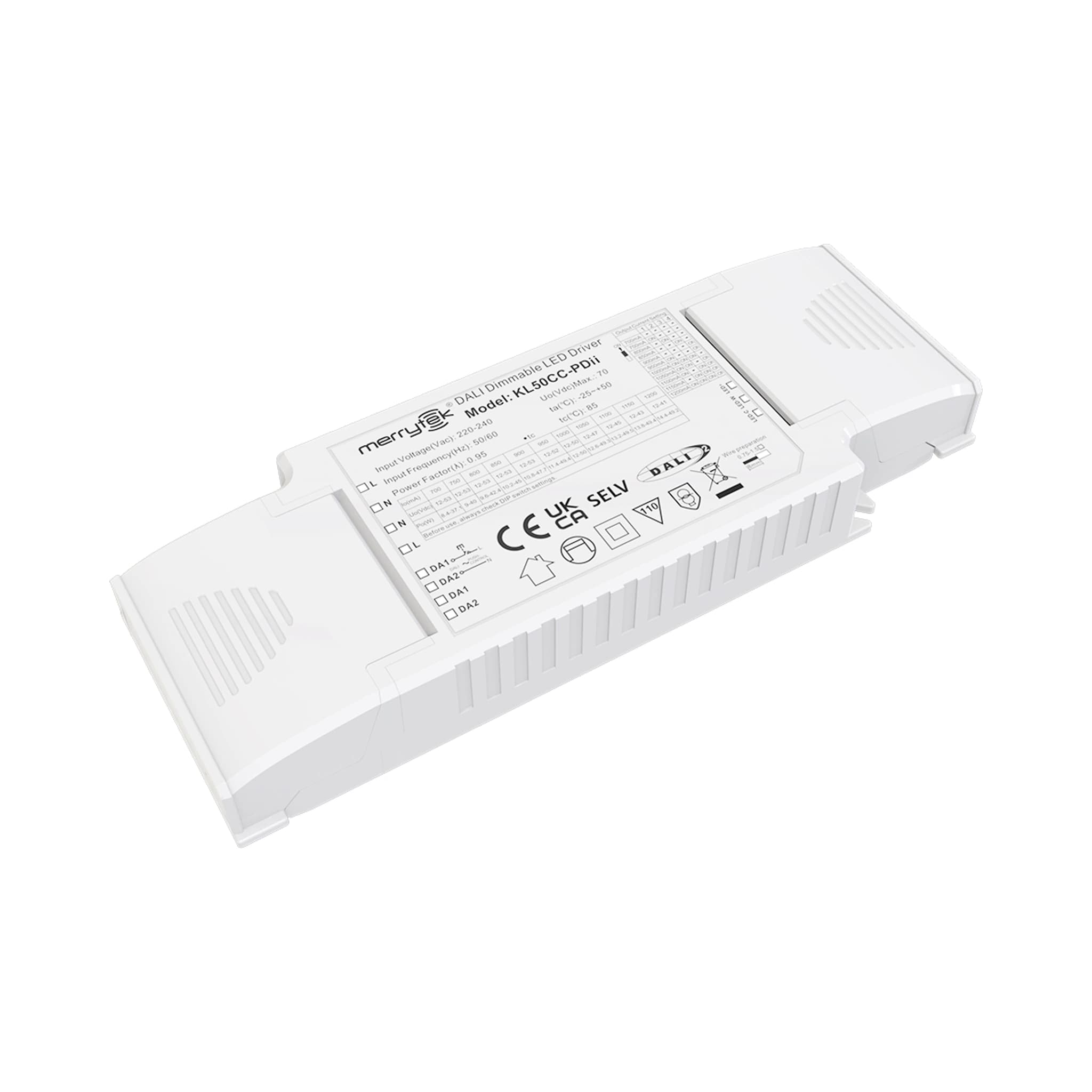

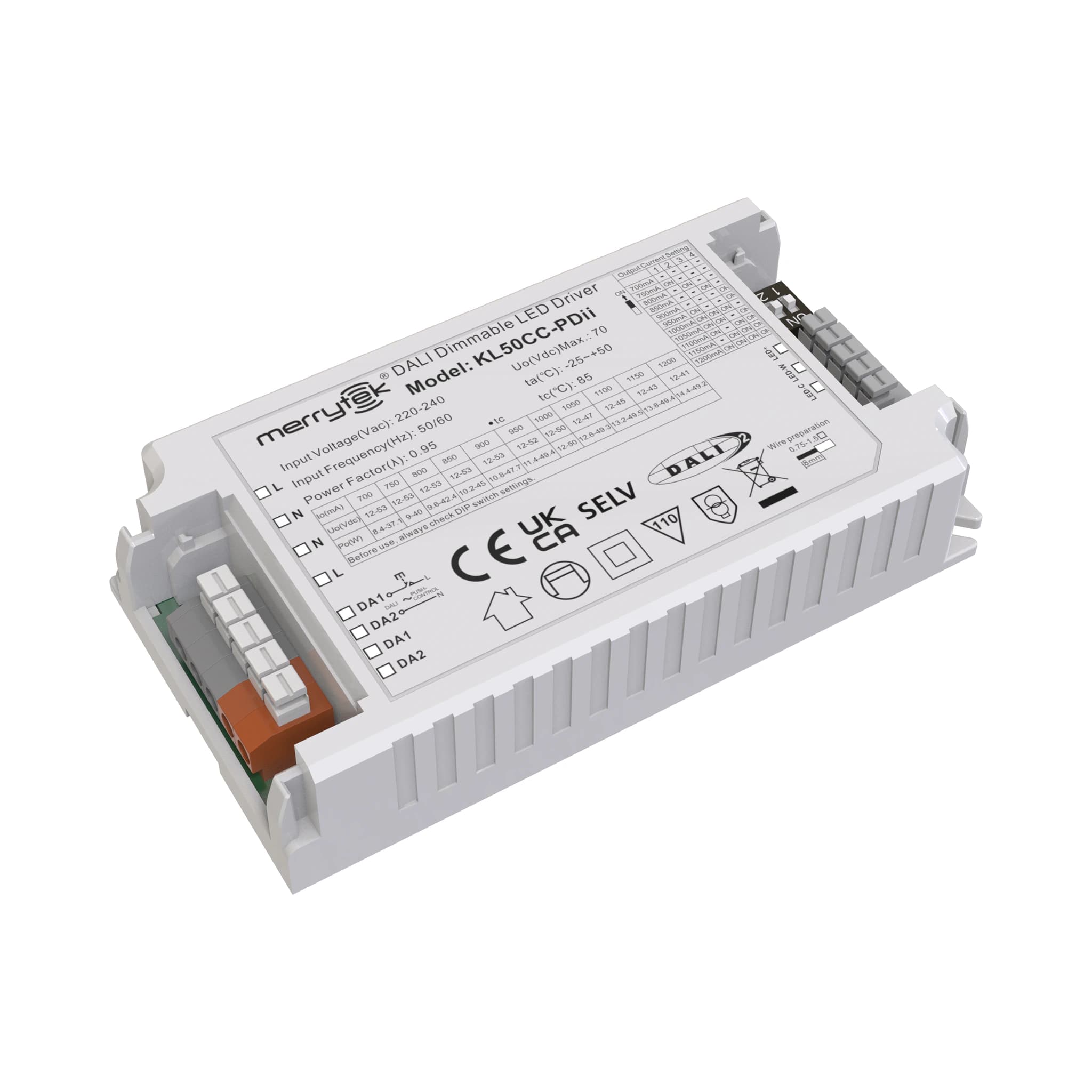

KL50CC-PDii
DALI dimming power - DT8
KL50CC-PDii is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Junior PUSH, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac , 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 87% Max. @230Vac
- Output current/voltage/power
- 700mA / 12-53Vdc / 37.1W 750mA / 12-53Vdc / 40.0W800mA / 12-53Vdc / 42.4W 850mA / 12-53Vdc / 45.0W900mA / 12-53Vdc/ 47.7W 950mA / 12-52Vdc/ 49.4W1000mA / 12-50Vdc / 50.0W 1050mA / 12-47Vdc / 49.3W1100mA / 12-45Vdc/ 49.5W 1150mA / 12-43Vdc/ 49.4W1200mA / 12-41Vdc/ 49.2W
- Safety Standard
- EN61347-1 EN61347-2-13
- EMC standards
- EN55015 EN61547 EN61000-3-2 EN61000-3-3
- DALI standard
- ICE 62386 102, 209, 251, 252, 253
- Certification
- CE
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- External: 179.6*69*24 Internal: 120*64.8*24
