Smart Drivers

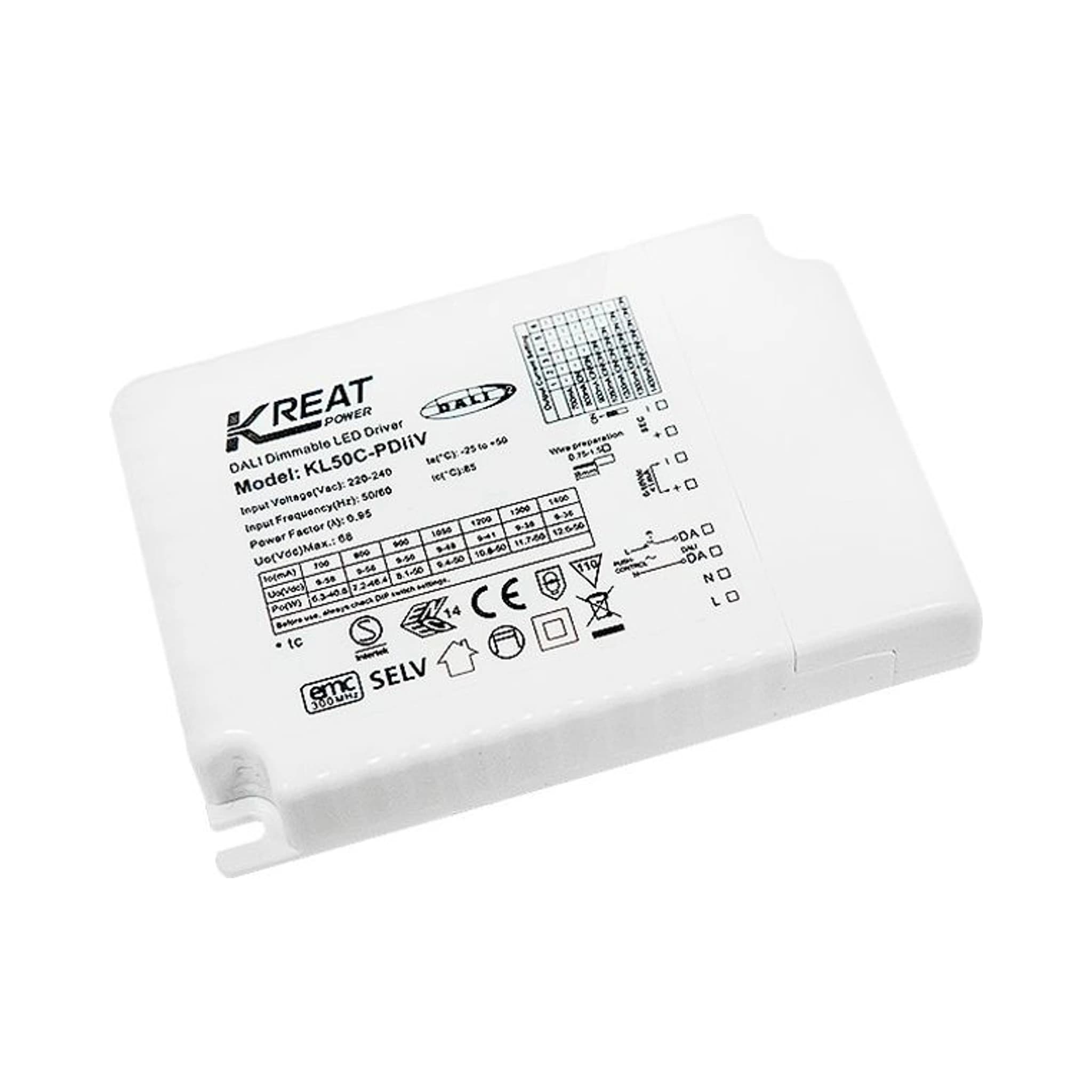

KL50C-PDiiV
DALI 2.0 dimming power 50W
KL50C-PDiiV is designed for professional lighting-control and building-automation applications. Supported technologies: DALI.
Verified product data
Specifications
Input
- Operating voltage
- 198-264VAC, 50/60Hz
- Rated input voltage
- 220-240VAC, 50/60Hz
- Stand-by power
- <=0.5W
- Power factor
- >=0.95 at full load
Output
- Operating mode
- Constant current LED driver
- Full-load output power
- 50W maximum
- Load output current
- 700-1400mA
- Load output voltage range
- 9-58V DC
Control
- Dimming interfaces
- DALI DT6, PUSH and 1-10V
- Dimming range
- 2-100% (1-10V); 0-100% (DALI/PUSH)
Performance
- Maximum efficiency
- 86%
Environment
- Operating temperature
- -25 to +50 C
- IP rating
- IP20
Mechanical
- Dimensions
- 123 x 79 x 24mm
