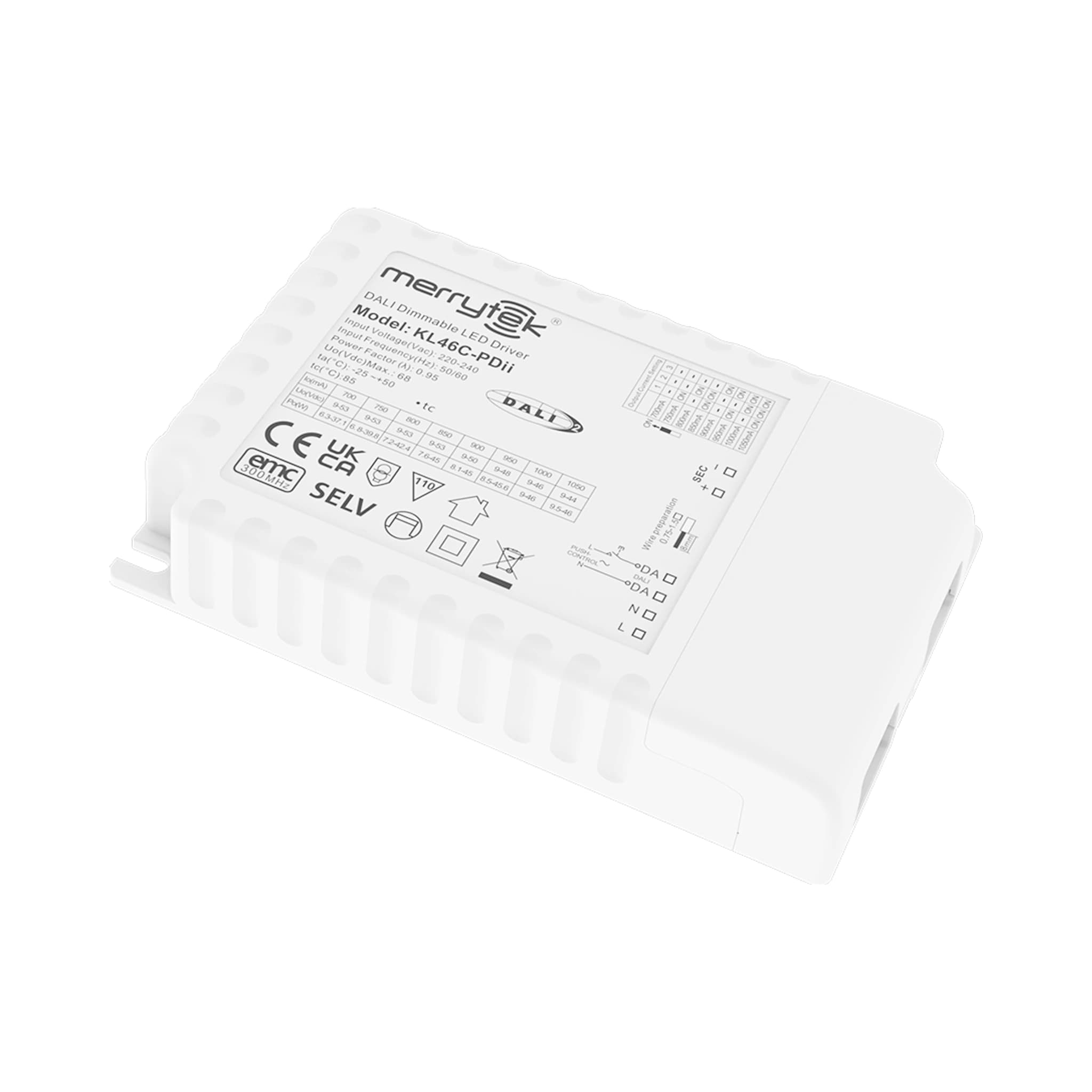

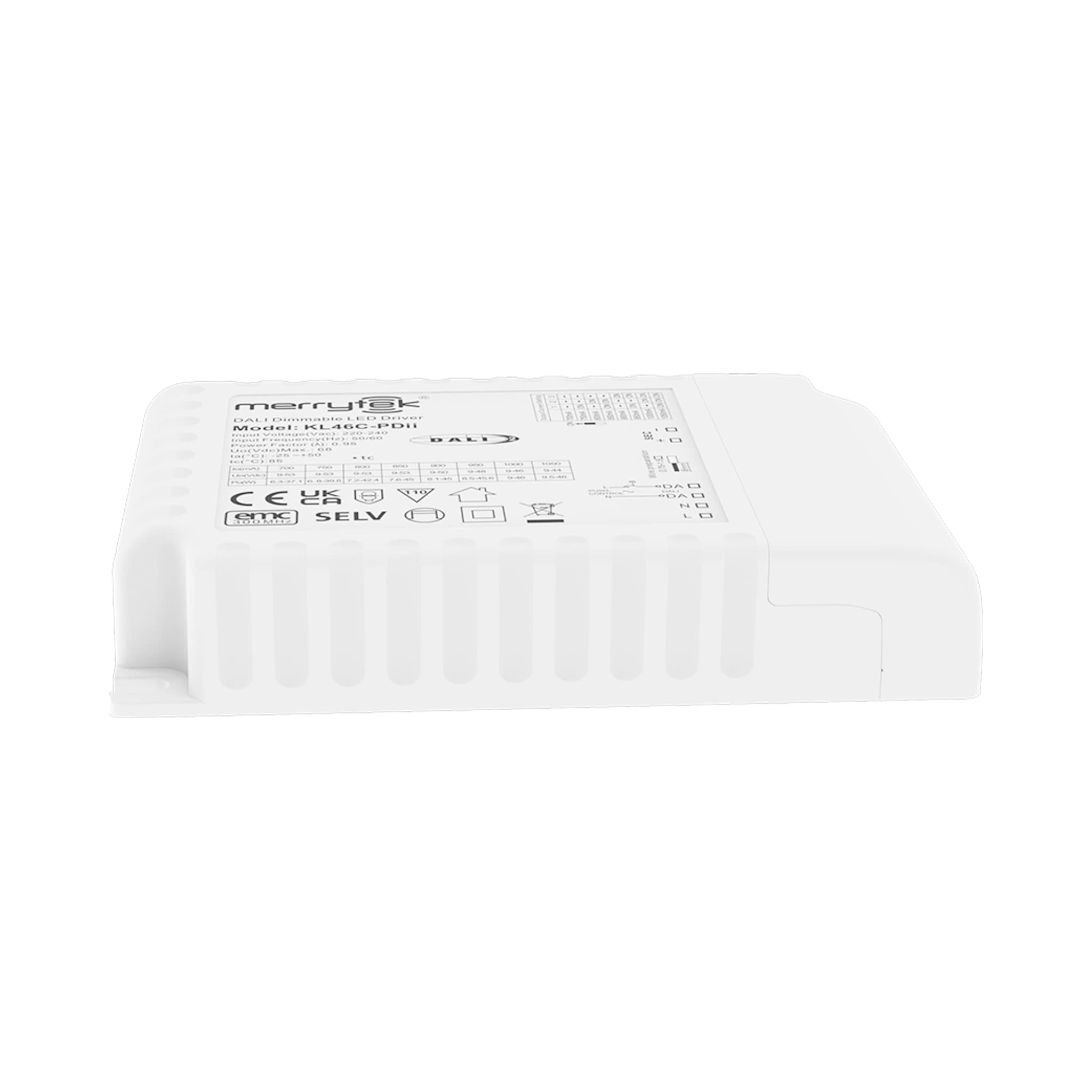

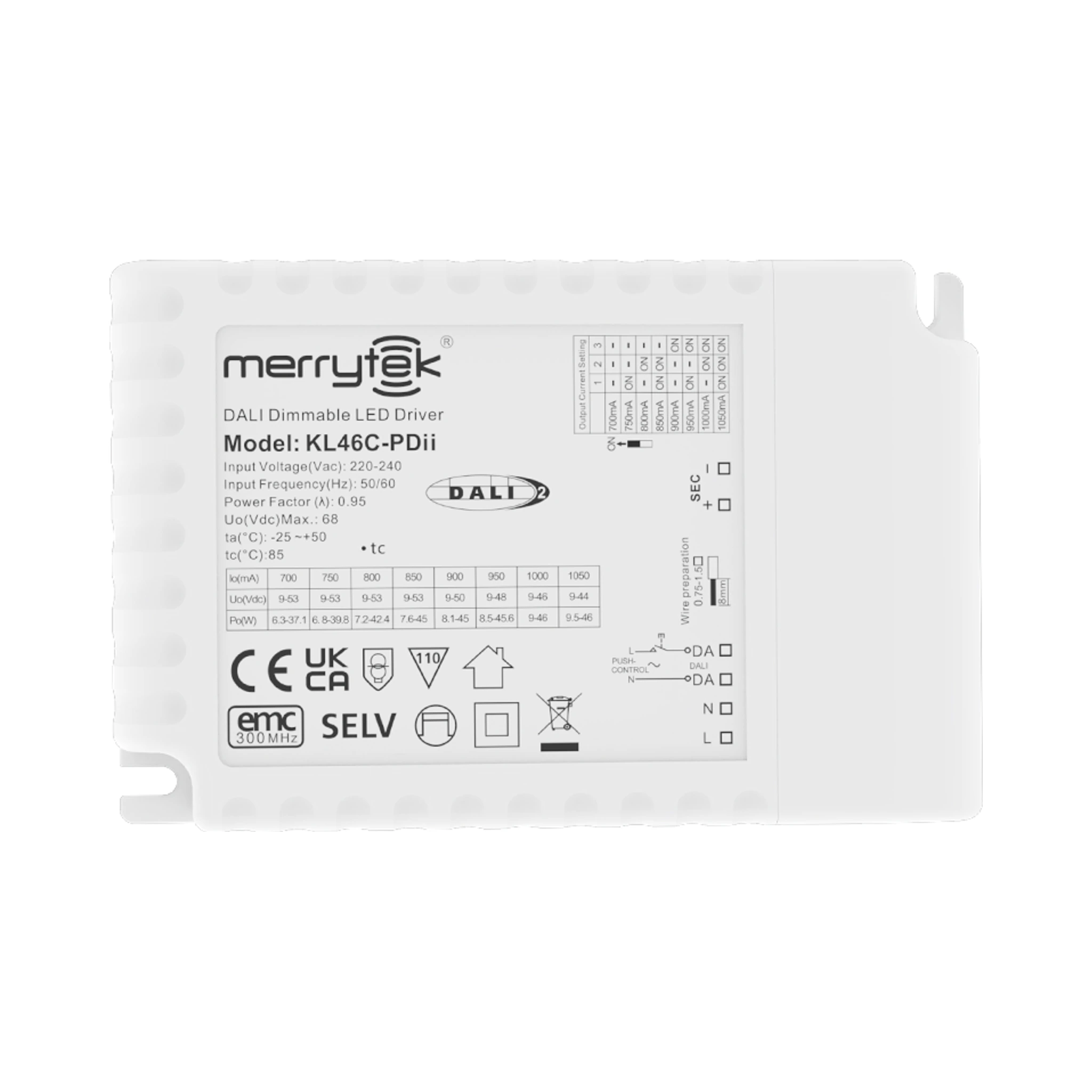

KL46C-PDii
DALI dimming power
KL46C-PDii is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Junior PUSH, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac, 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 87% Max. @230Vac
- Output current/voltage/power
- 700mA / 9-53Vdc / 37.1W 750mA / 9-53Vdc / 39.8W800mA / 9-53Vdc / 42.4W 850mA / 9-53Vdc / 45W900mA / 9-50Vdc / 45W 950mA / 9-48Vdc / 45.6W1000mA / 9-46Vdc / 46W 1050mA / 9-44Vdc / 46W
- Safety Standard
- EN61347-1, EN61347-2-13
- EMC standards
- EN55015 EN61547 EN61000-3-2 EN61000-3-3
- DALI standard
- ICE 62386 102, 207, 220, 251, 252, 253
- Certification
- CE
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- 123*79*23.8
