Smart Drivers

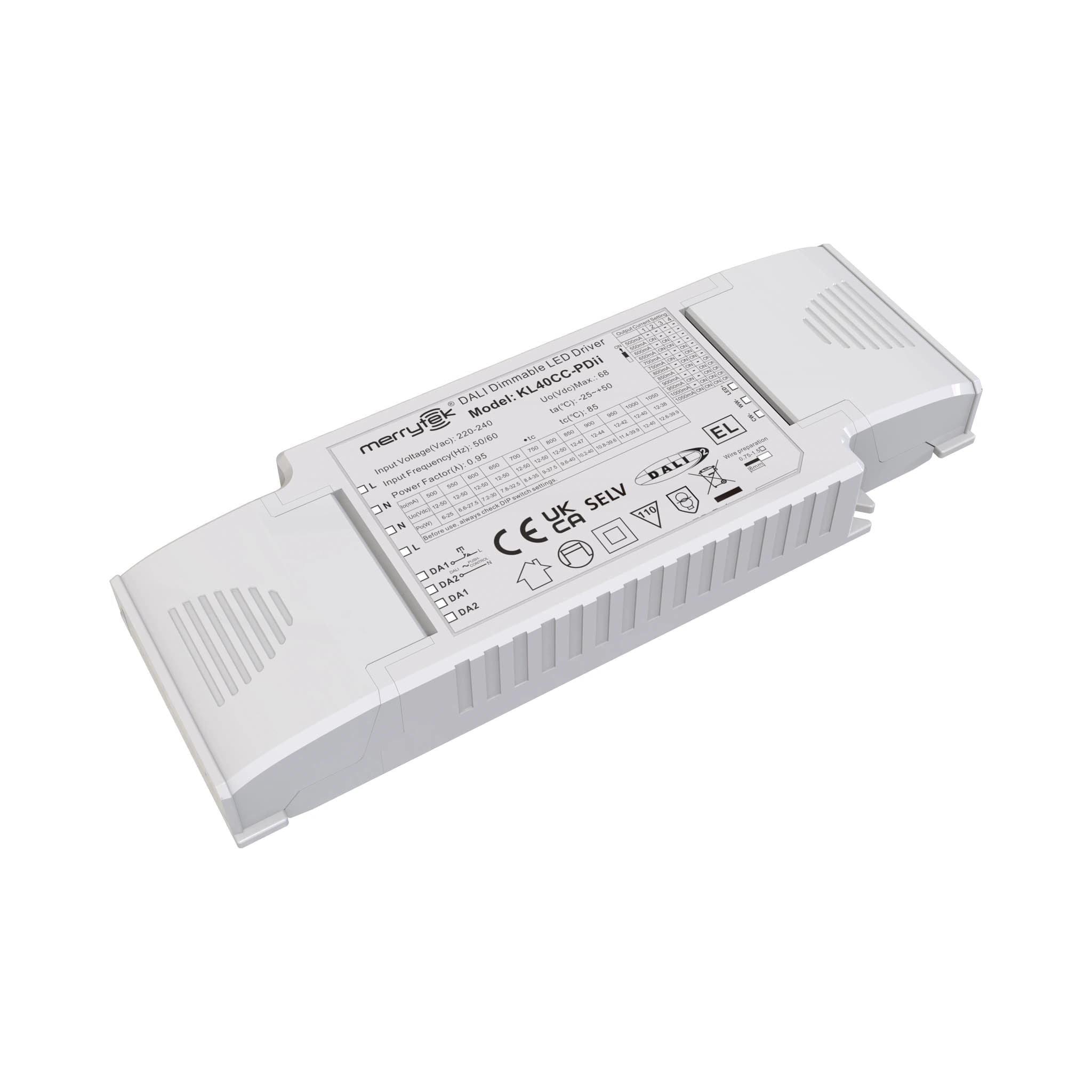

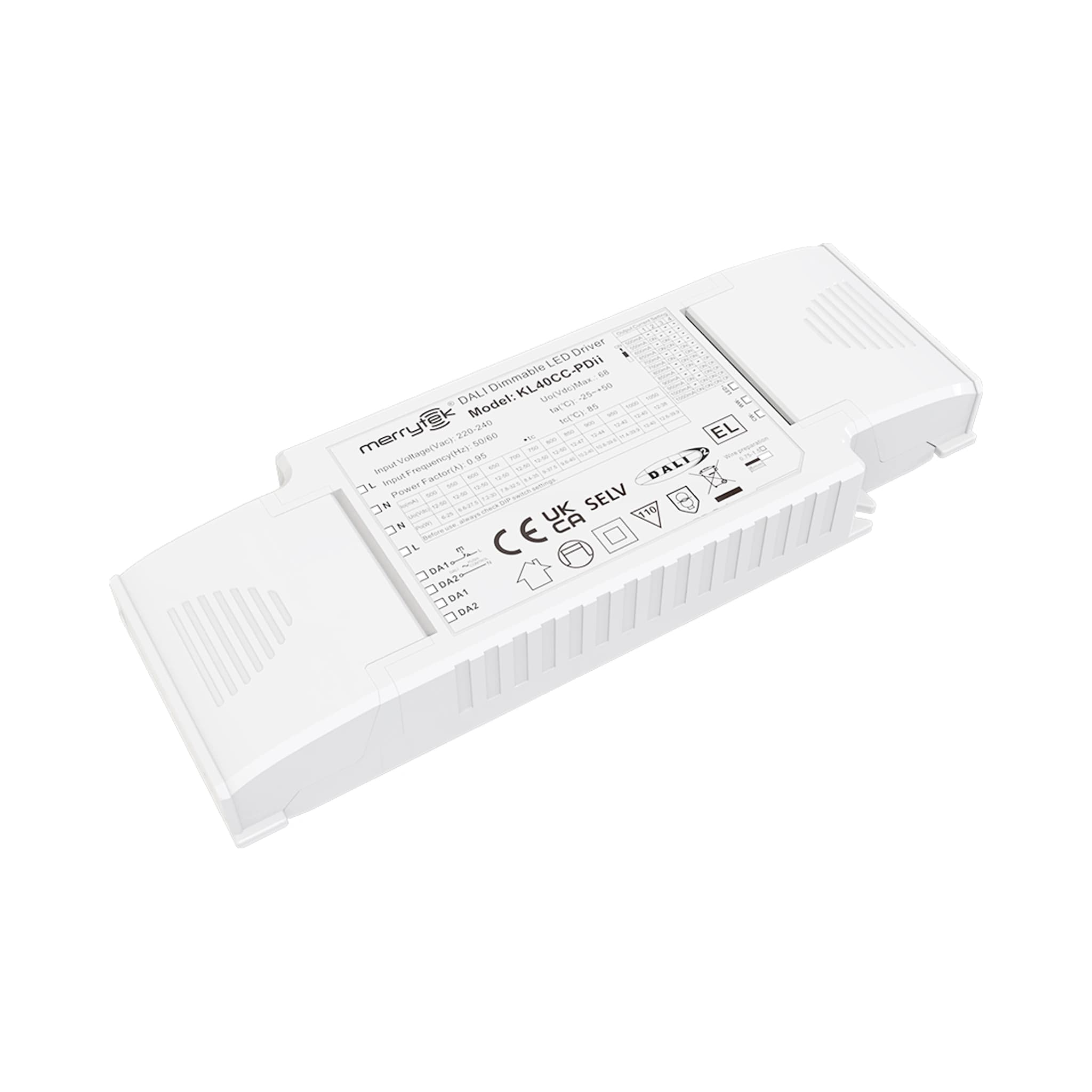

KL40CC-PDii
DALI dimming power - DT8
KL40CC-PDii is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Junior PUSH, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac , 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 86% Max. @230Vac
- Output current/voltage/power
- 500mA / 12-50Vdc / 25.0W 550mA / 12-50Vdc / 27.5W600mA / 12-50Vdc / 30.0W 650mA / 12-50Vdc / 32.5W700mA / 12-50Vdc / 35.0W 750mA / 12-50Vdc / 37.5W800mA / 12-50Vdc / 40.0W 850mA / 12-47Vdc / 40.0W900mA / 12-44Vdc / 39.6W 950mA / 12-42Vdc / 39.9W1000mA / 12-40Vdc / 40.0W 1050mA / 12-38Vdc / 39.9W
- Safety Standard
- EN61347-1 EN61347-2-13
- EMC standards
- EN55015 EN61547 EN61000-3-2 EN61000-3-3
- DALI standard
- ICE 62386 102, 209, 251, 252, 253
- Certification
- CE
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- External: 179.6*69*24 Internal: 120*64.8*24
