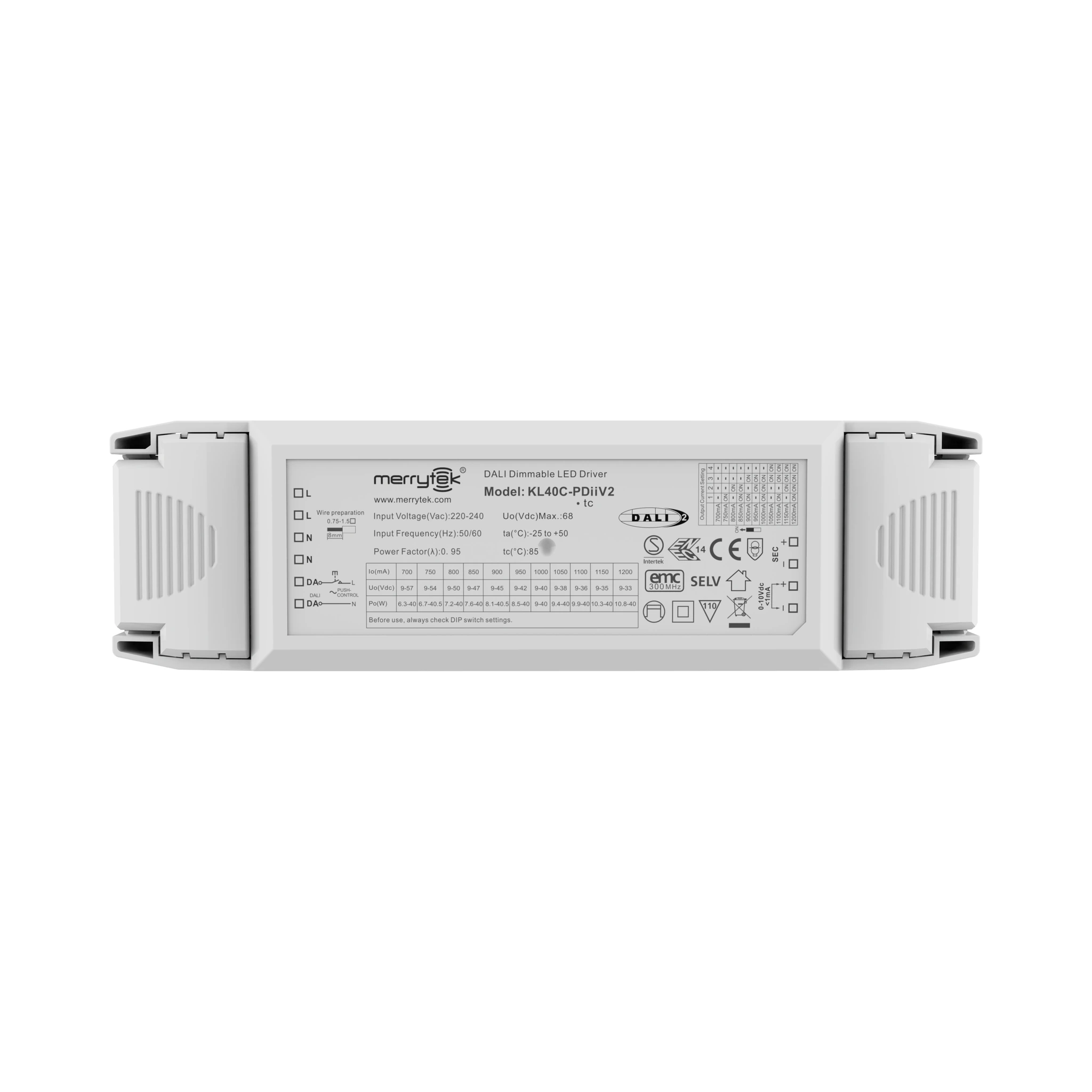

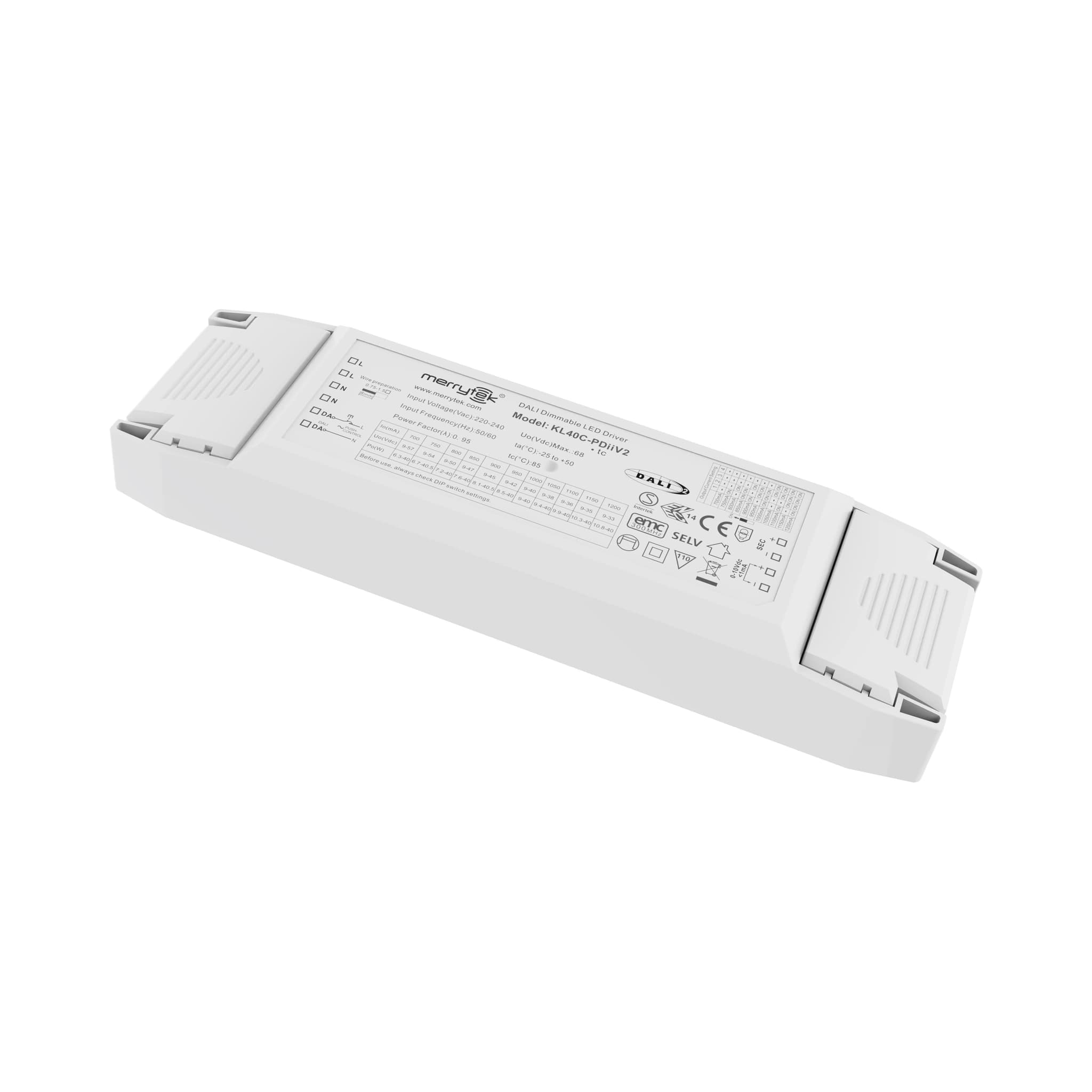

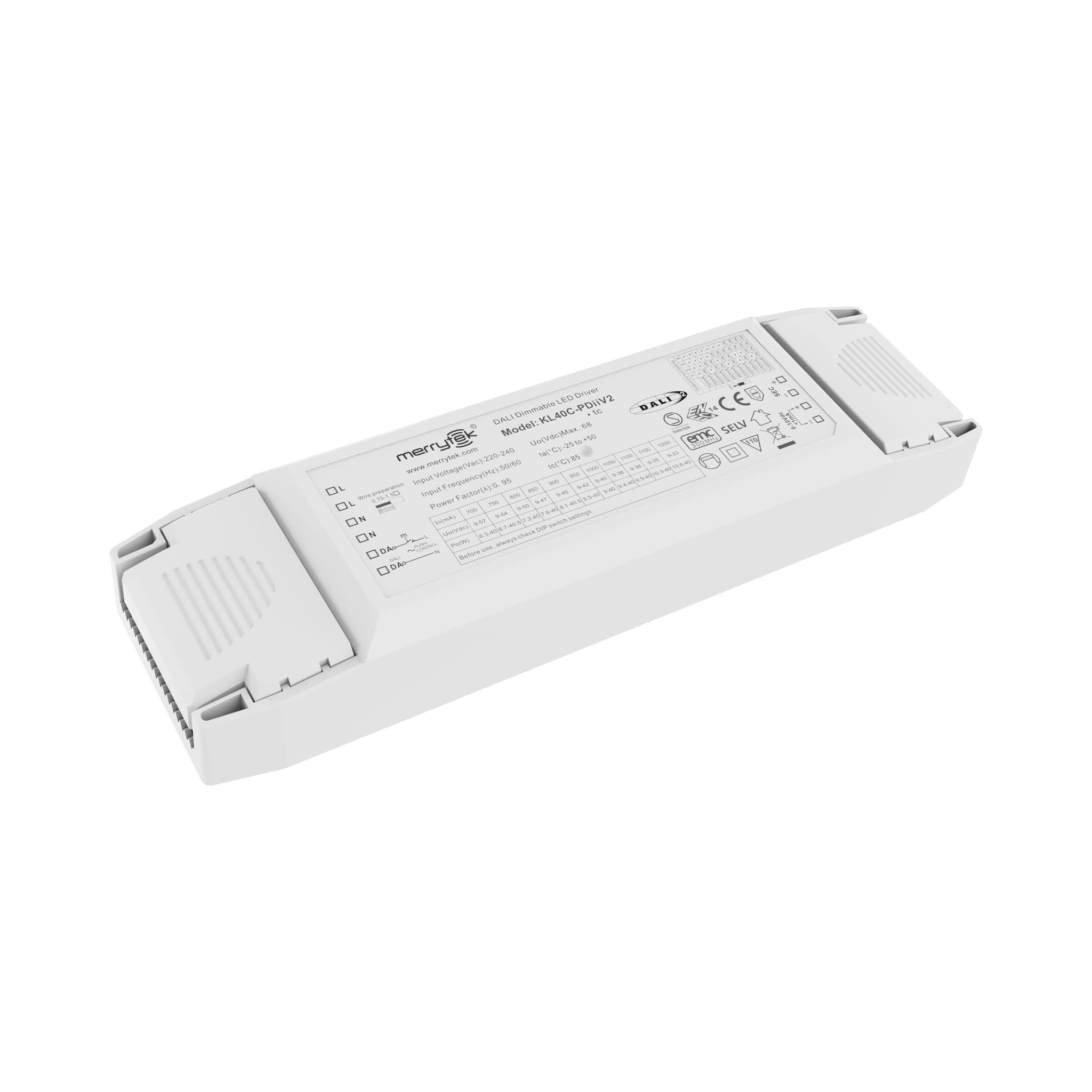

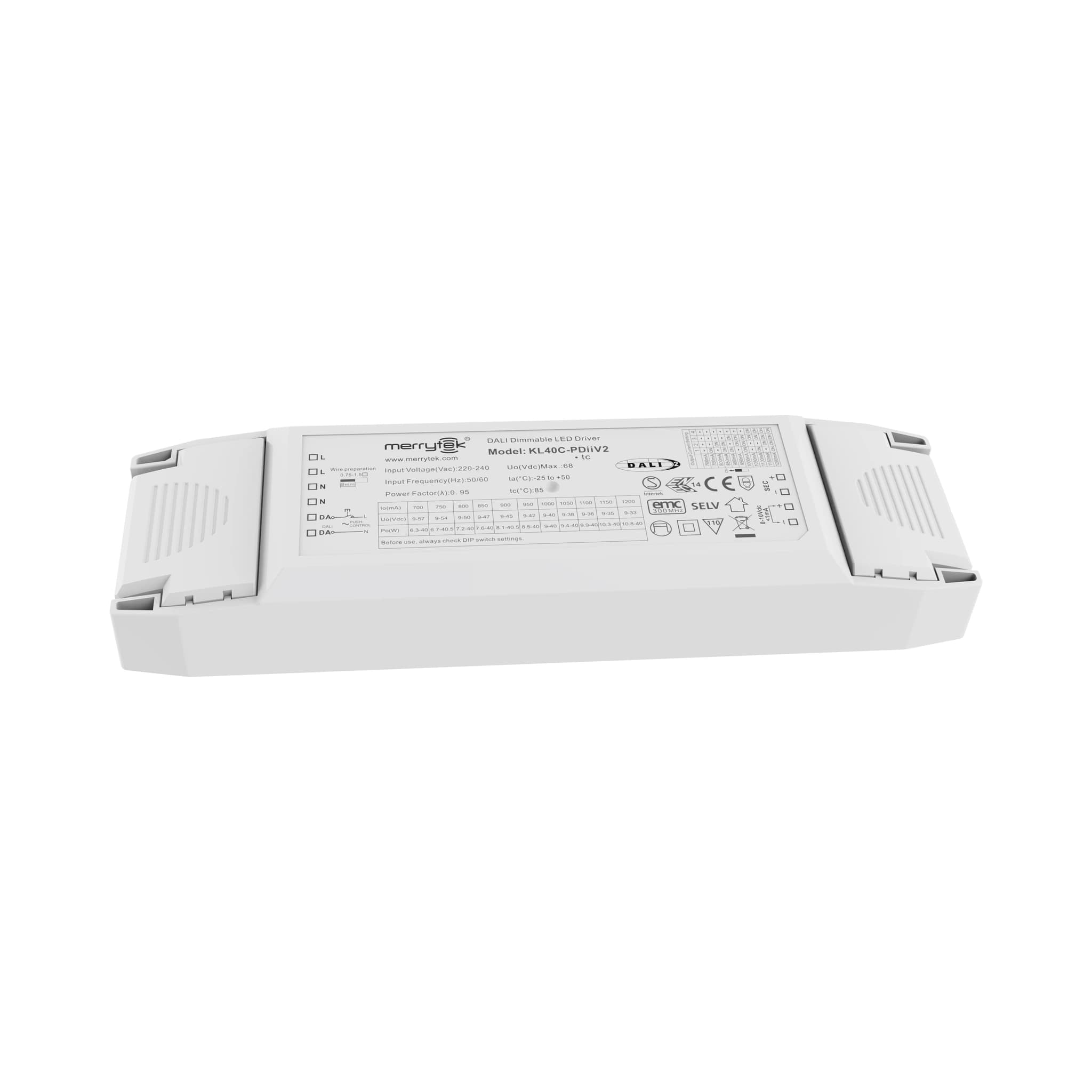

KL40C-PDiiV2
DALI dimming power
KL40C-PDiiV2 is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, 1–10V, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Primary PUSH, secondary 1-10V, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac , 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 85% Max. @230Vac
- Output current/voltage/power
- 700mA / 9-57Vdc / 40W 750mA / 9-54Vdc / 40W800mA / 9-50Vdc / 40W 850mA / 9-47Vdc / 40W900mA / 9-45Vdc / 40W 950mA / 9-42Vdc / 40W1000mA / 9-40Vdc / 40W 1050mA / 9-38Vdc / 40W1100mA / 9-36Vdc / 40W 1150mA / 9-35Vdc / 40W1200mA / 9-33Vdc / 40W
- Safety Standard
- EN61347-1, EN61347-2-13
- EMC standards
- EN55015 EN61547 EN61000-3-2 EN61000-3-3
- DALI standard
- ICE 62386 102, 207
- Certification
- CE, ENEC
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- 202*58*35
