Smart Drivers

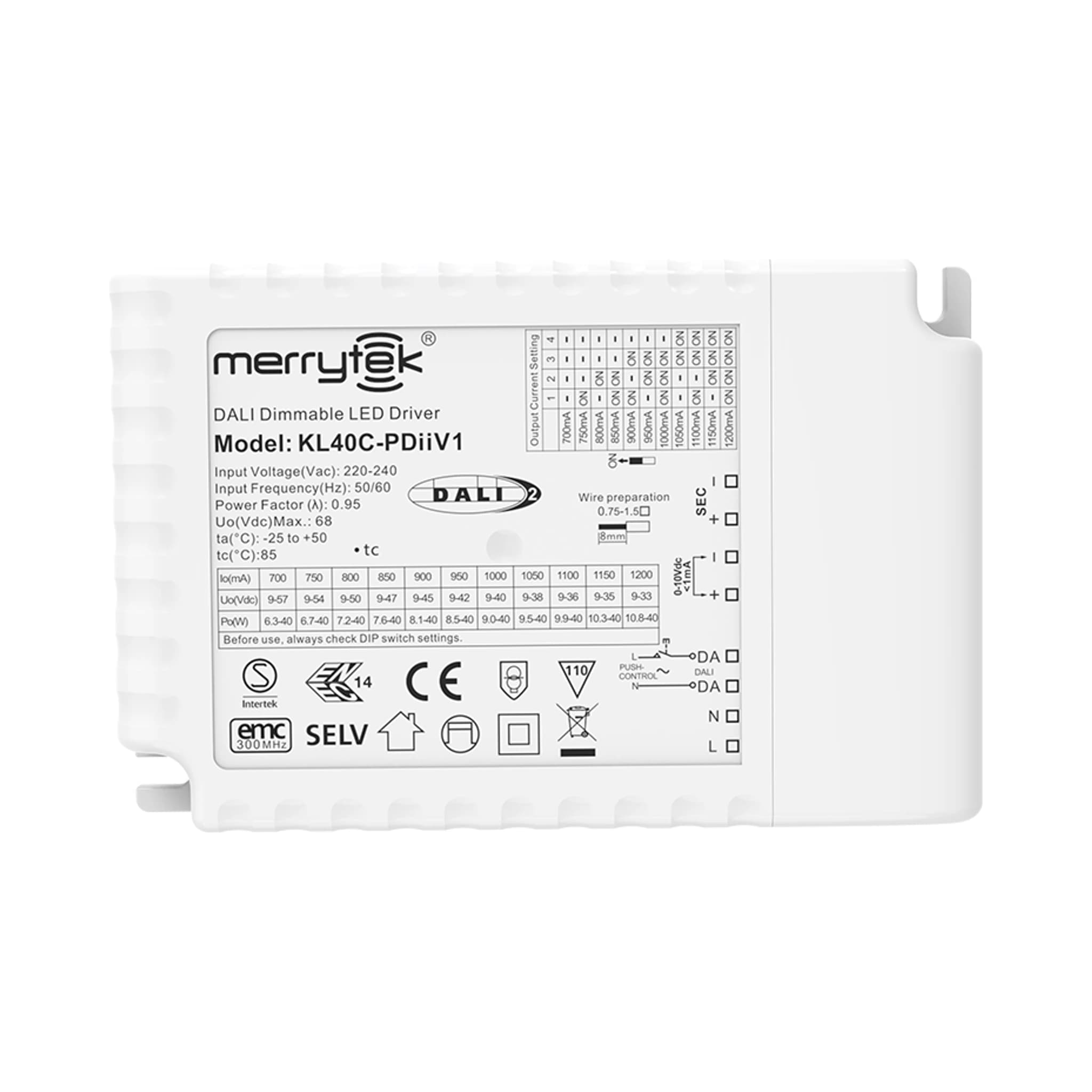

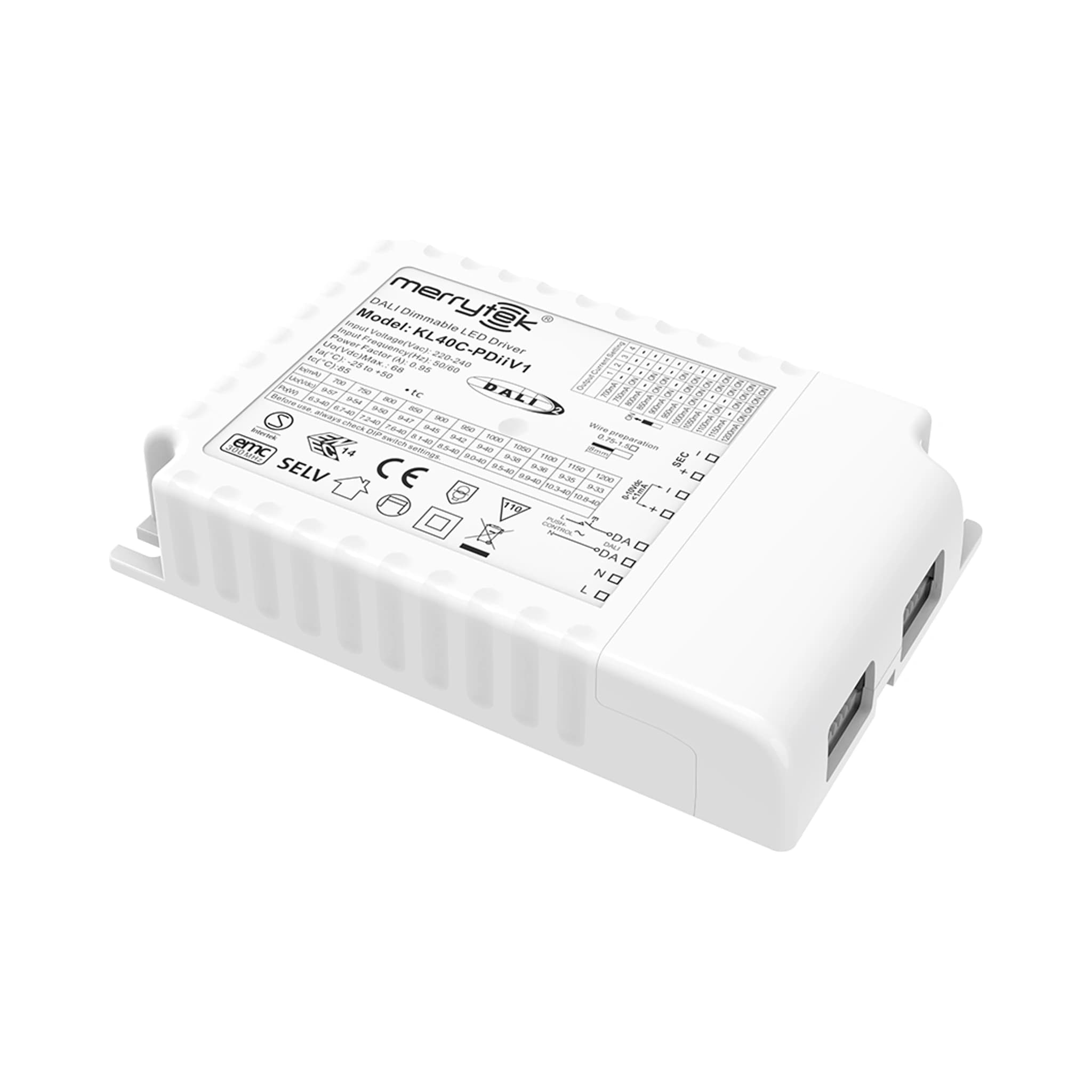

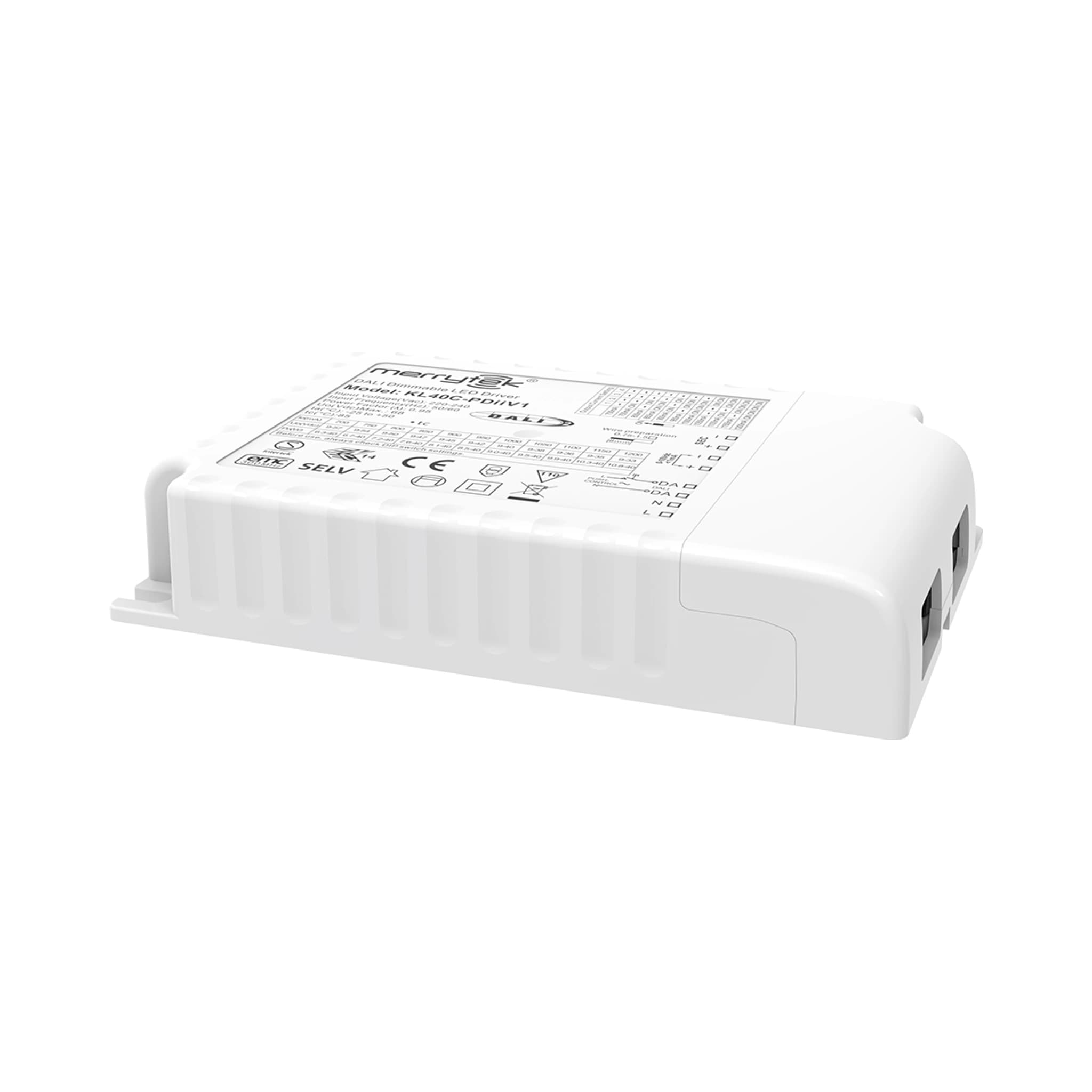

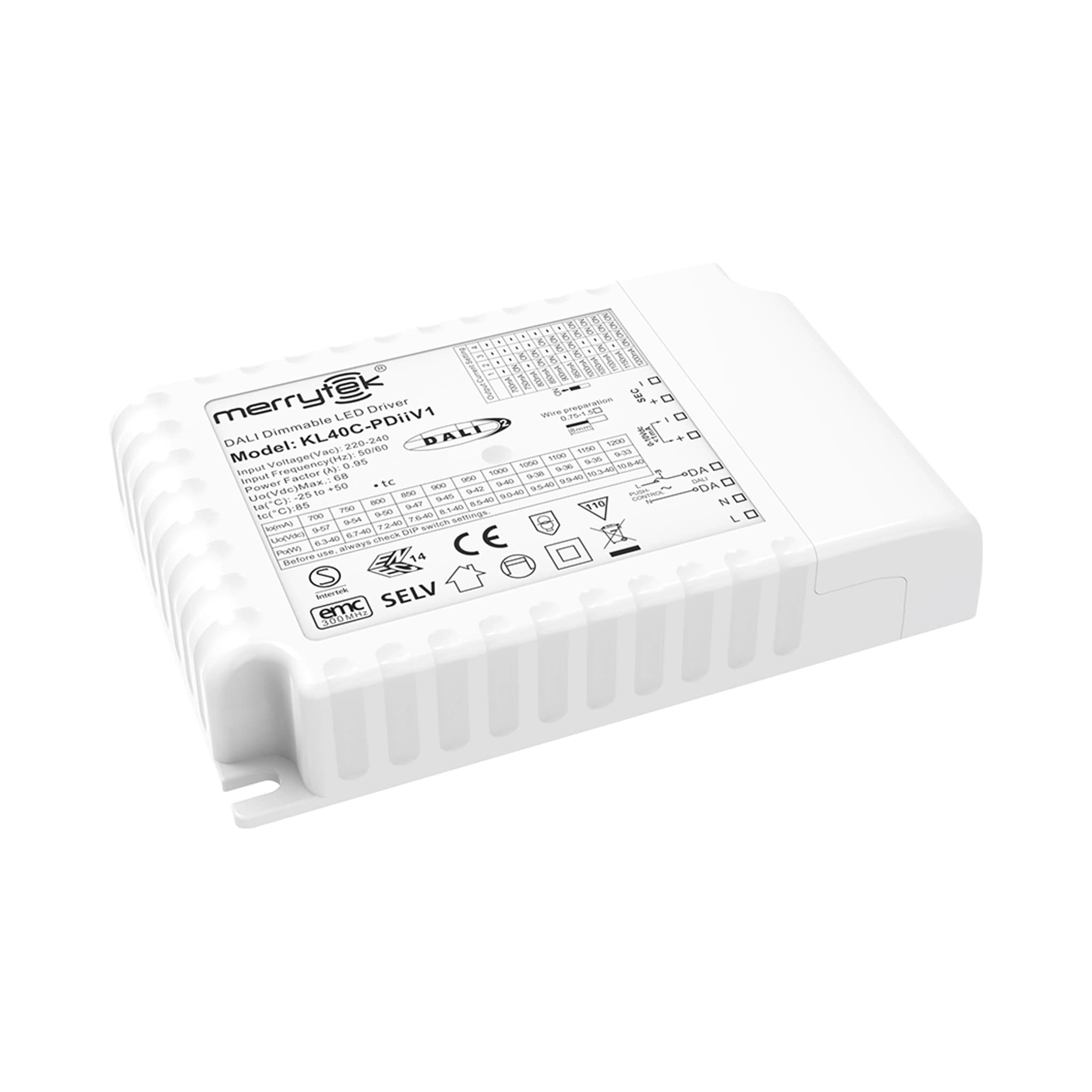

KL40C-PDiiV1
DALI dimming power
KL40C-PDiiV1 is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, 1–10V, PWM.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Primary PUSH, secondary 1-10V, primary PWM, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac, 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 86% Max. @230Vac
- Output current/voltage/power
- 700mA / 9- 57Vdc / 39.9W 750mA / 9- 54Vdc / 40.5W800mA / 9- 50Vdc / 40.0W 850mA / 9- 47Vdc / 39.9W900mA / 9- 45Vdc / 40.5W 950mA / 9- 42Vdc / 39.9W1000mA / 9- 40Vdc / 40.0W 1050mA / 9- 38Vdc / 39.9W1100mA / 9- 36Vdc / 39.6W 1150mA / 9- 35Vdc / 40W1200mA / 9- 33Vdc / 39.6W
- Safety Standard
- EN61347-1, EN61347-2-13
- EMC standards
- EN55015 EN61547 EN61000-3-2 EN61000-3-3
- DALI standard
- ICE 62386 102, 207
- Certification
- CE, ENEC
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- 123*79*23.8
