Smart Drivers

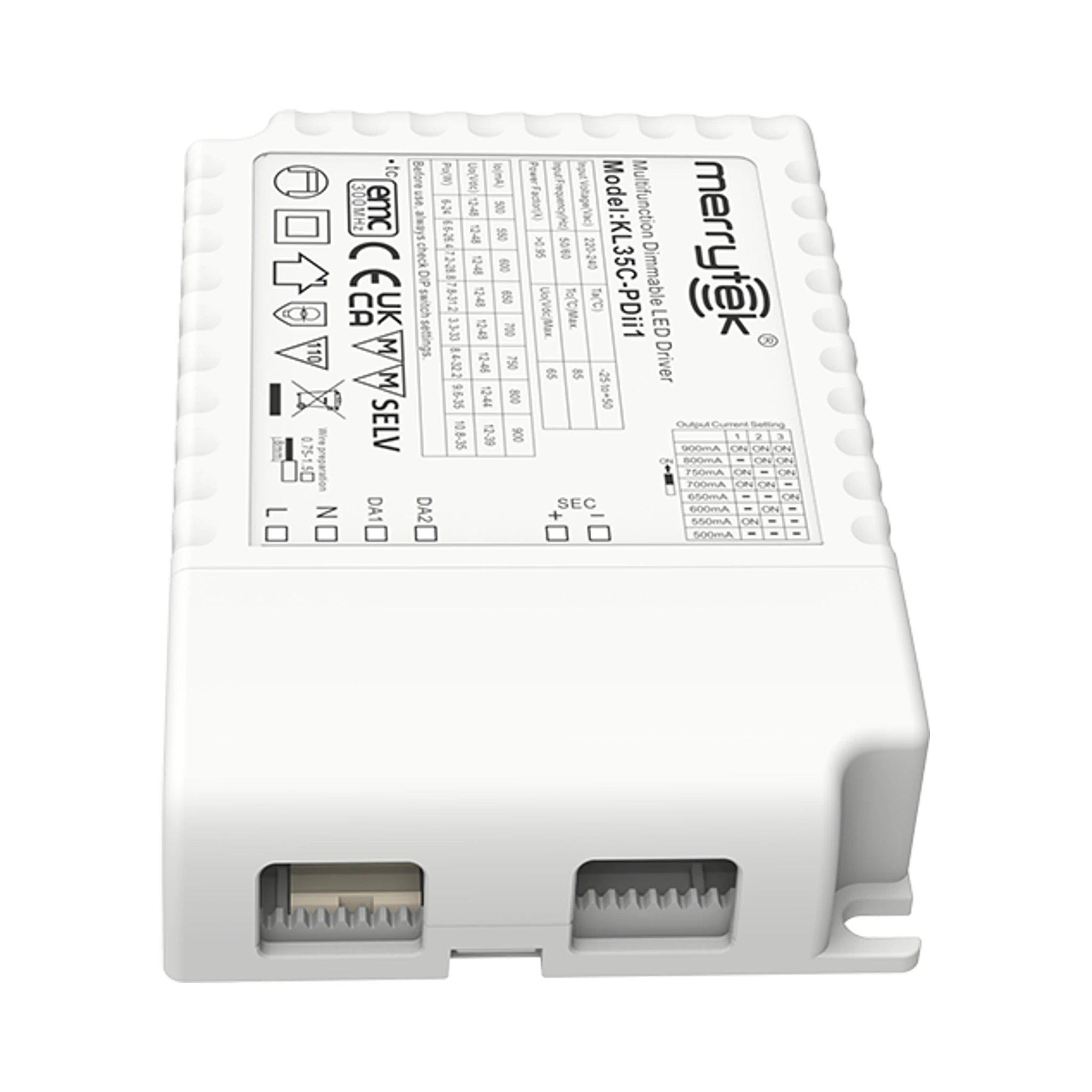

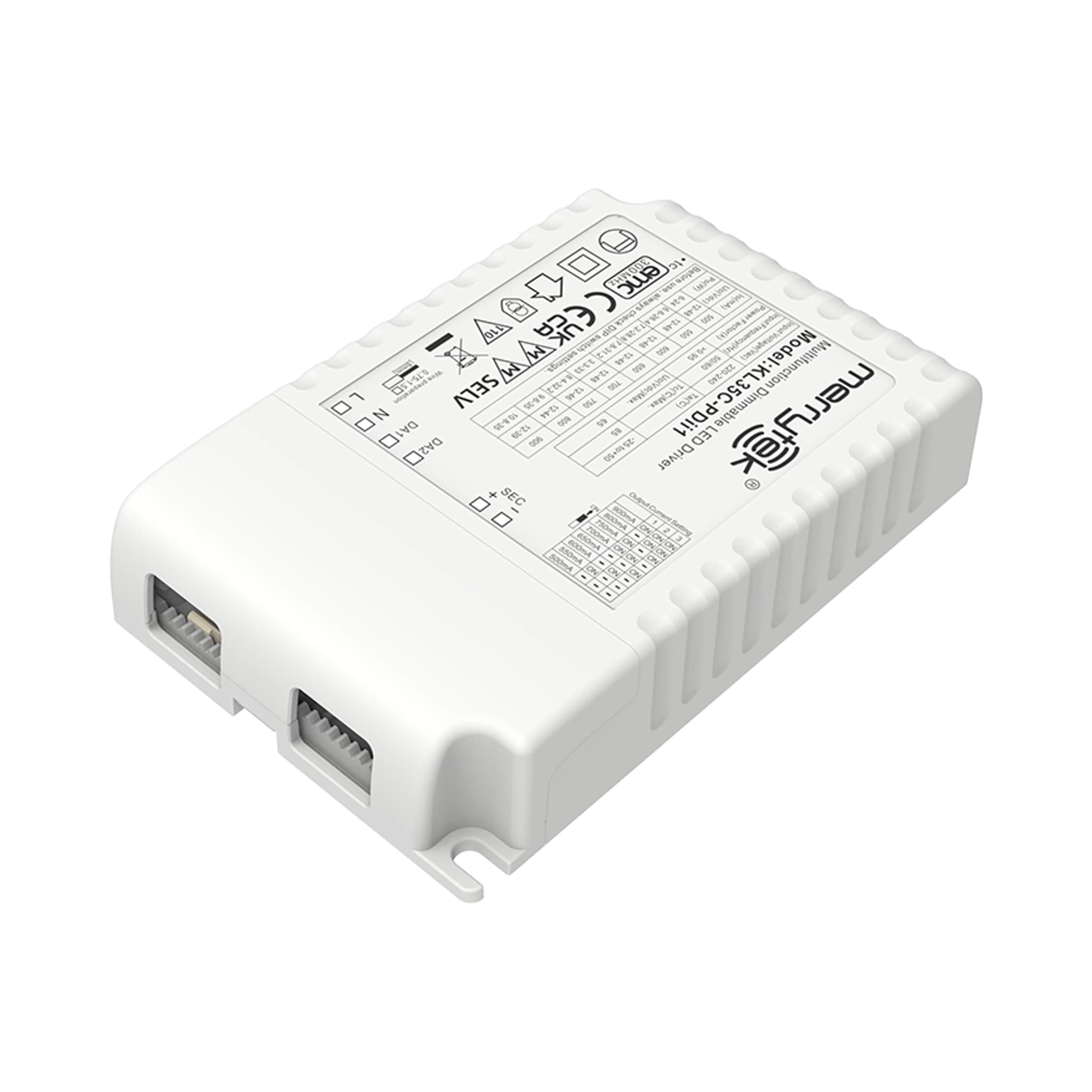

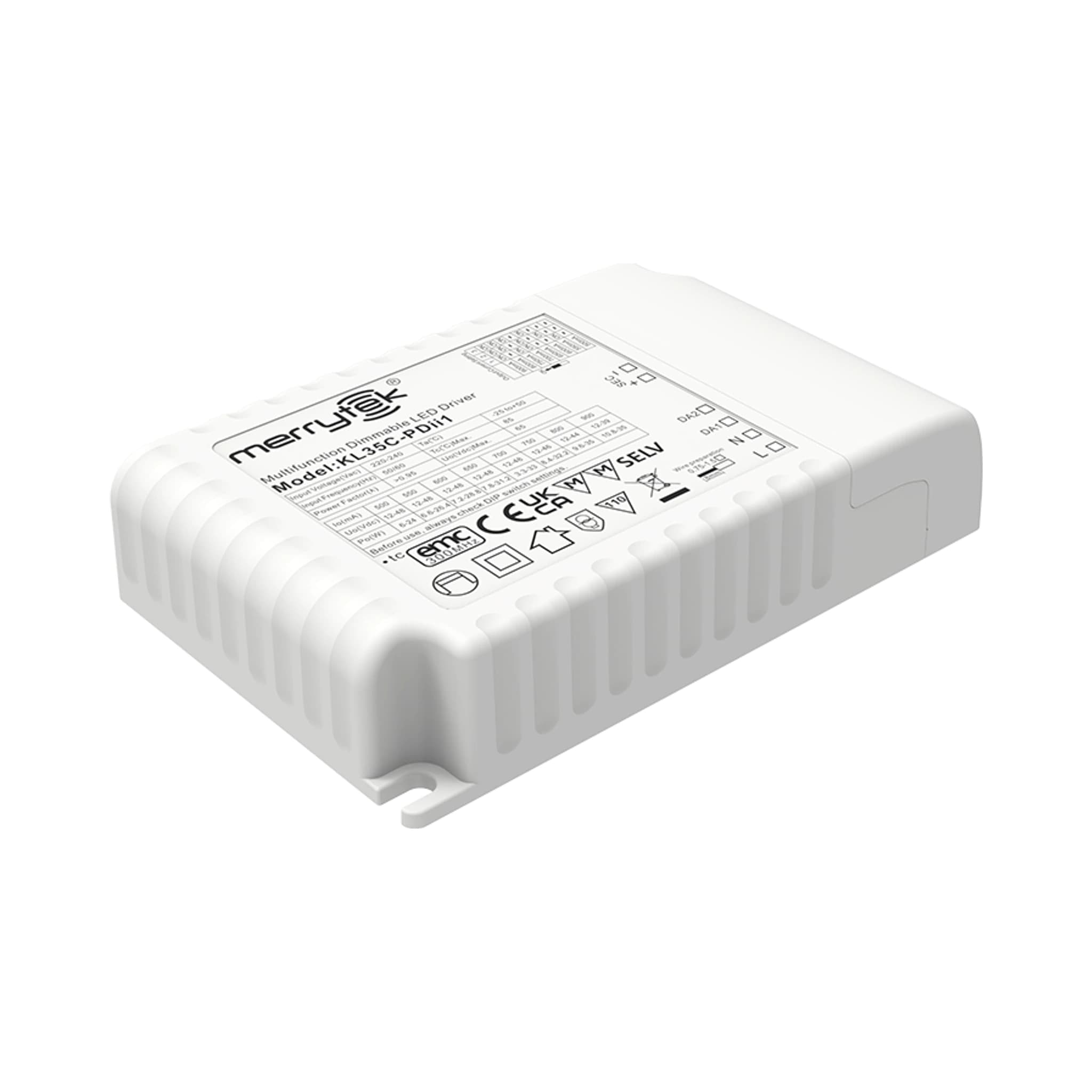

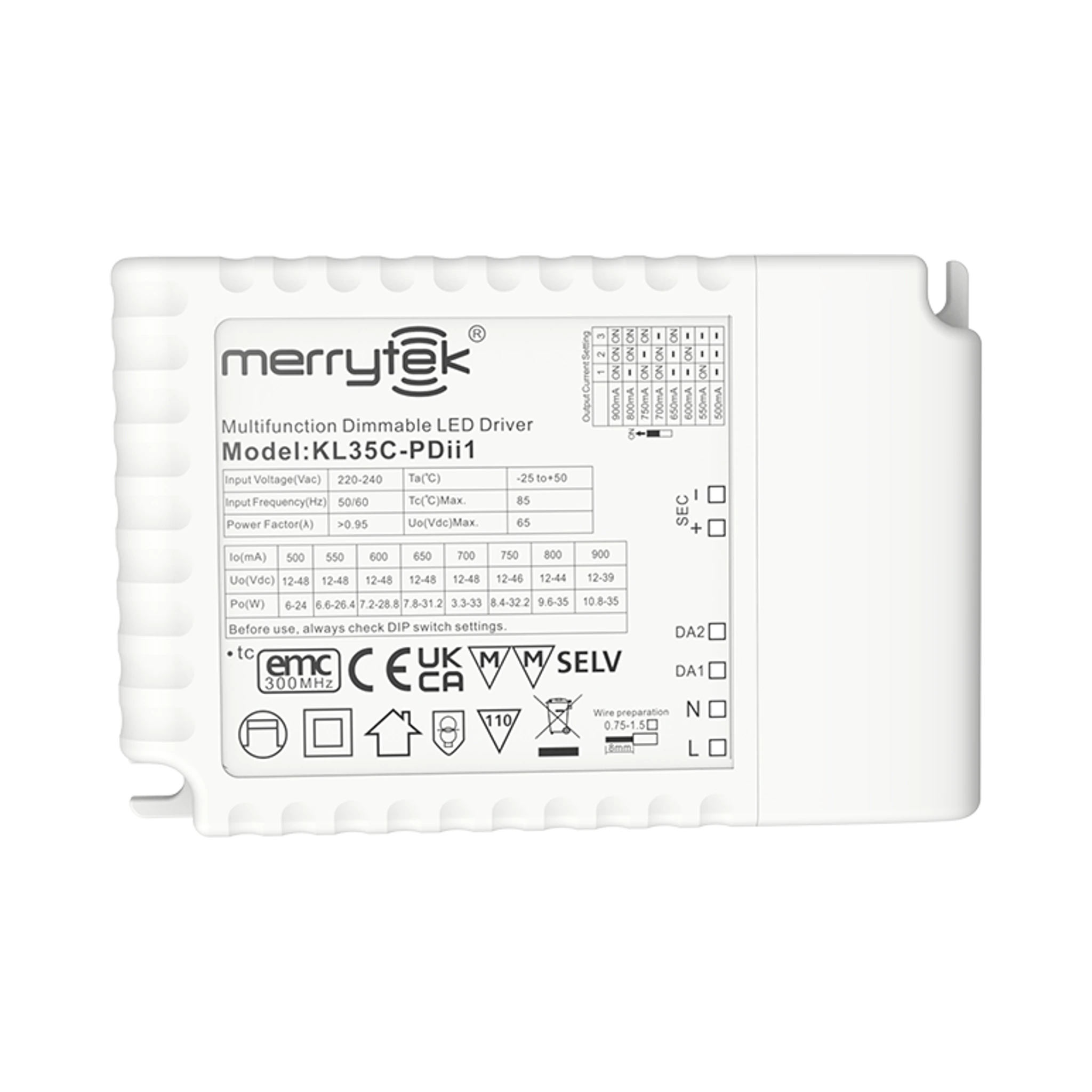

KL35C-PDii1
DALI dimming power - DT6
KL35C-PDii1 is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Junior PUSH, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac, 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 87% Max. @230Vac
- Output current/voltage/power
- 500mA / 12-48Vdc / 24W 550mA / 12-48Vdc / 26.4W600mA / 12-48Vdc / 28.8W 650mA / 12-48Vdc / 31.2W700mA / 12-48Vdc / 33.6W 750mA / 12-46Vdc / 34.5W800mA / 12-44Vdc / 35W 900mA / 12-39Vdc / 35W
- Safety Standard
- EN61347-1, EN61347-2-13, EN62493, EN60598-1
- EMC standards
- EN55015 EN61547 EN61000-3-2 EN61000-3-3
- DALI standard
- ICE 62386 102, 207, 220, 251, 252, 253
- Certification
- CE
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- 103*67*22
