Smart Drivers

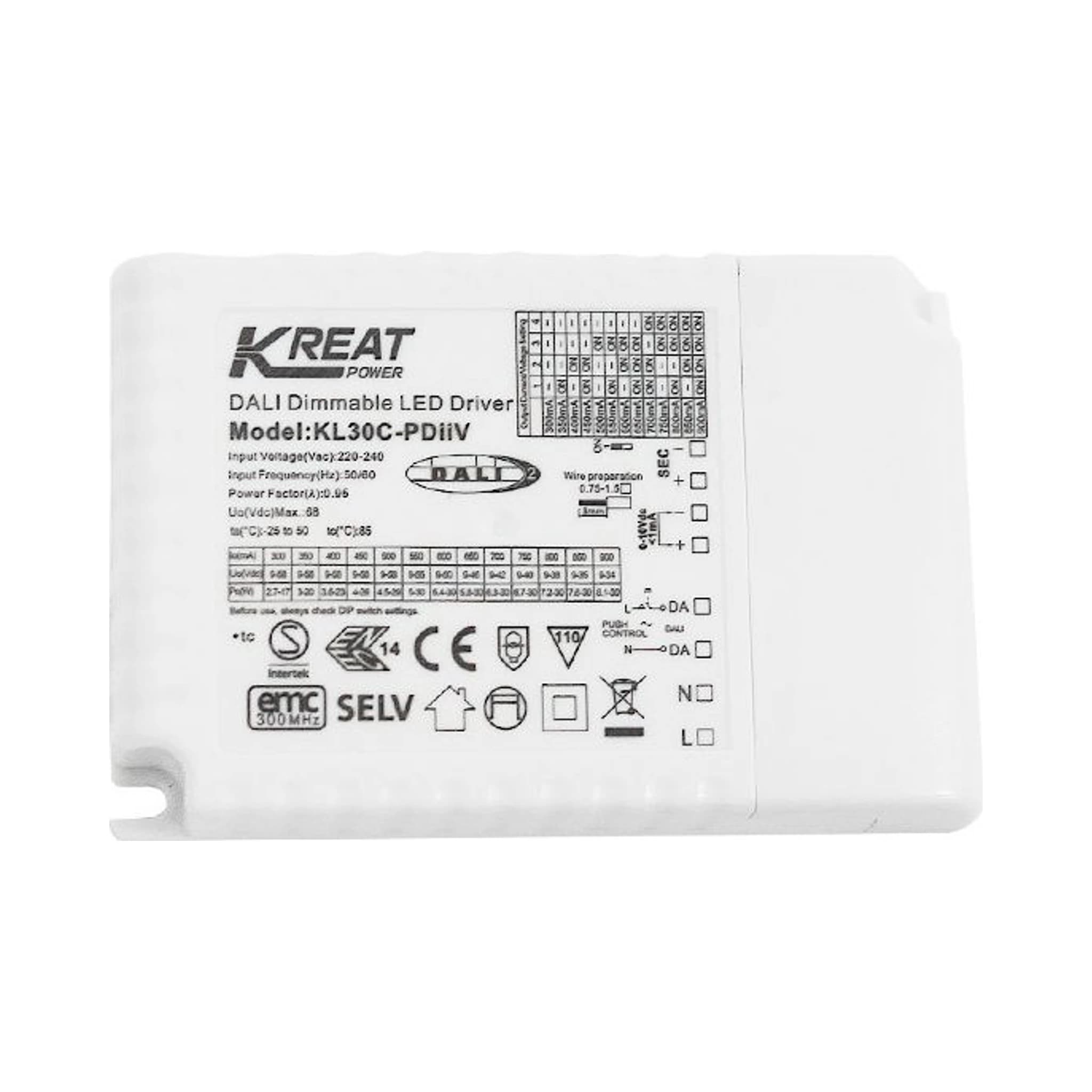

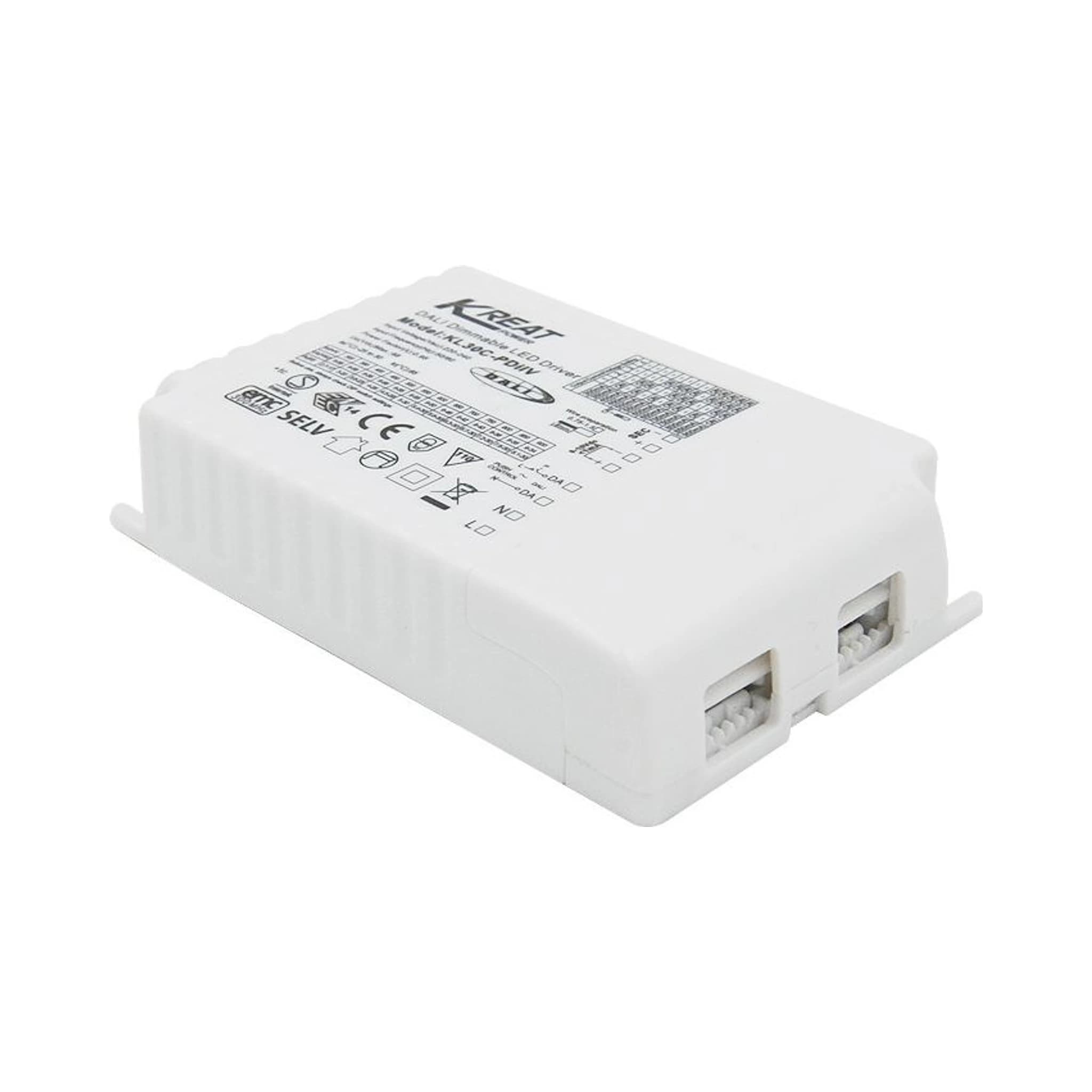

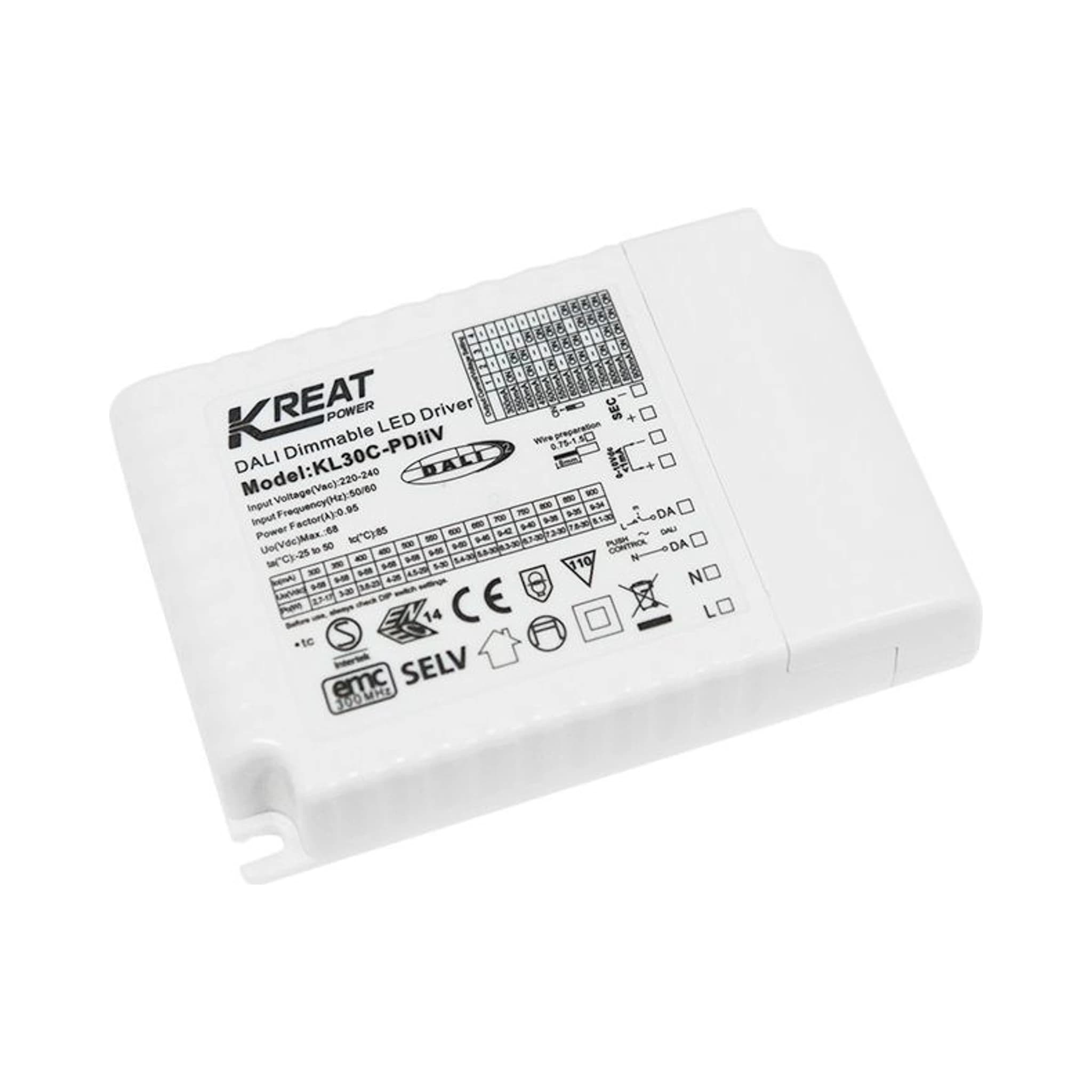

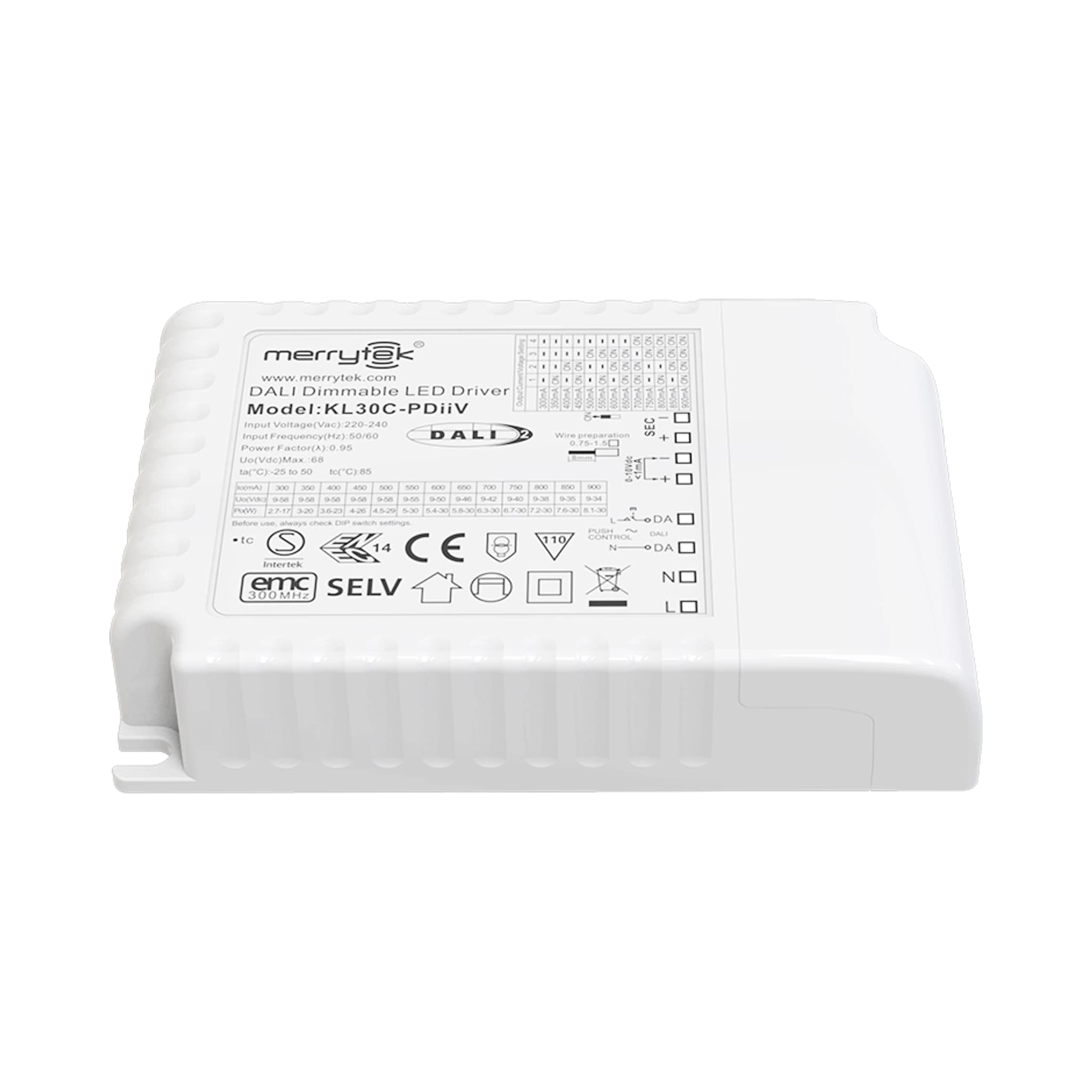

KL30C-PDiiV
DALI dimming power
KL30C-PDiiV is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, 1–10V, PWM.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Primary PUSH, secondary 1-10V, primary PWM, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac, 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 86% Max. @230Vac
- Output current/voltage/power
- 300mA / 9- 58Vdc / 17.4W 350mA / 9- 58Vdc / 20.3W400mA / 9- 58Vdc / 23.2W 450mA / 9- 58Vdc / 26.1W500mA / 9- 58Vdc / 29.0W 550mA / 9- 55Vdc / 30.2W600mA / 9- 50Vdc / 30.0W 650mA / 9- 46Vdc / 29.9W700mA / 9- 42Vdc / 29.4W 750mA / 9- 40Vdc / 30.0W800mA / 9- 38Vdc / 30.4W 850mA / 9- 35Vdc / 29.7W900mA / 9- 34Vdc / 30.6W
- Safety Standard
- EN61347-1, EN61347-2-13
- EMC standards
- EN55015 EN61547 EN61000-3-2 EN61000-3-3
- DALI standard
- ICE 62386 102, 207
- Certification
- CE, ENEC
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- 103*67*22
