Smart Drivers

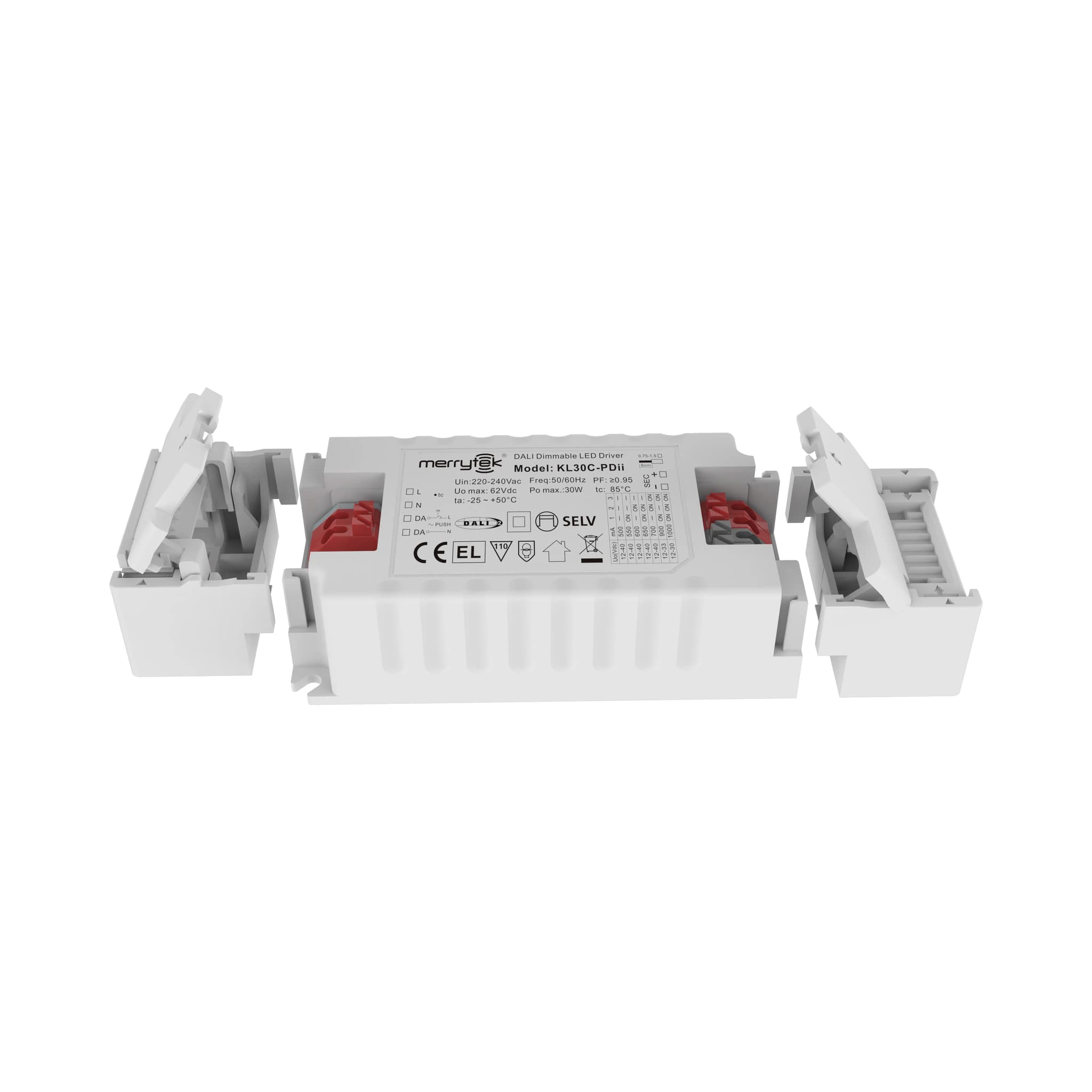

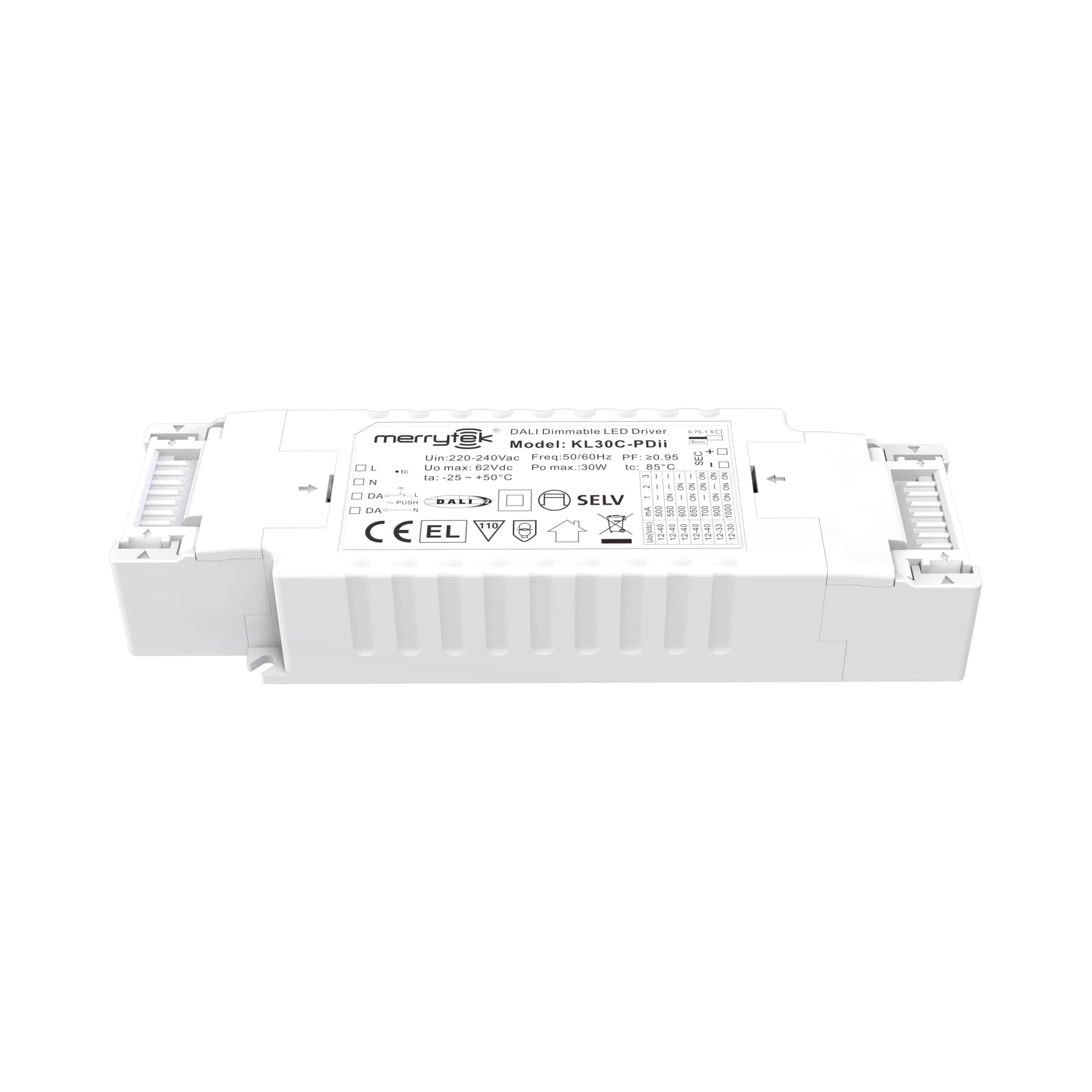

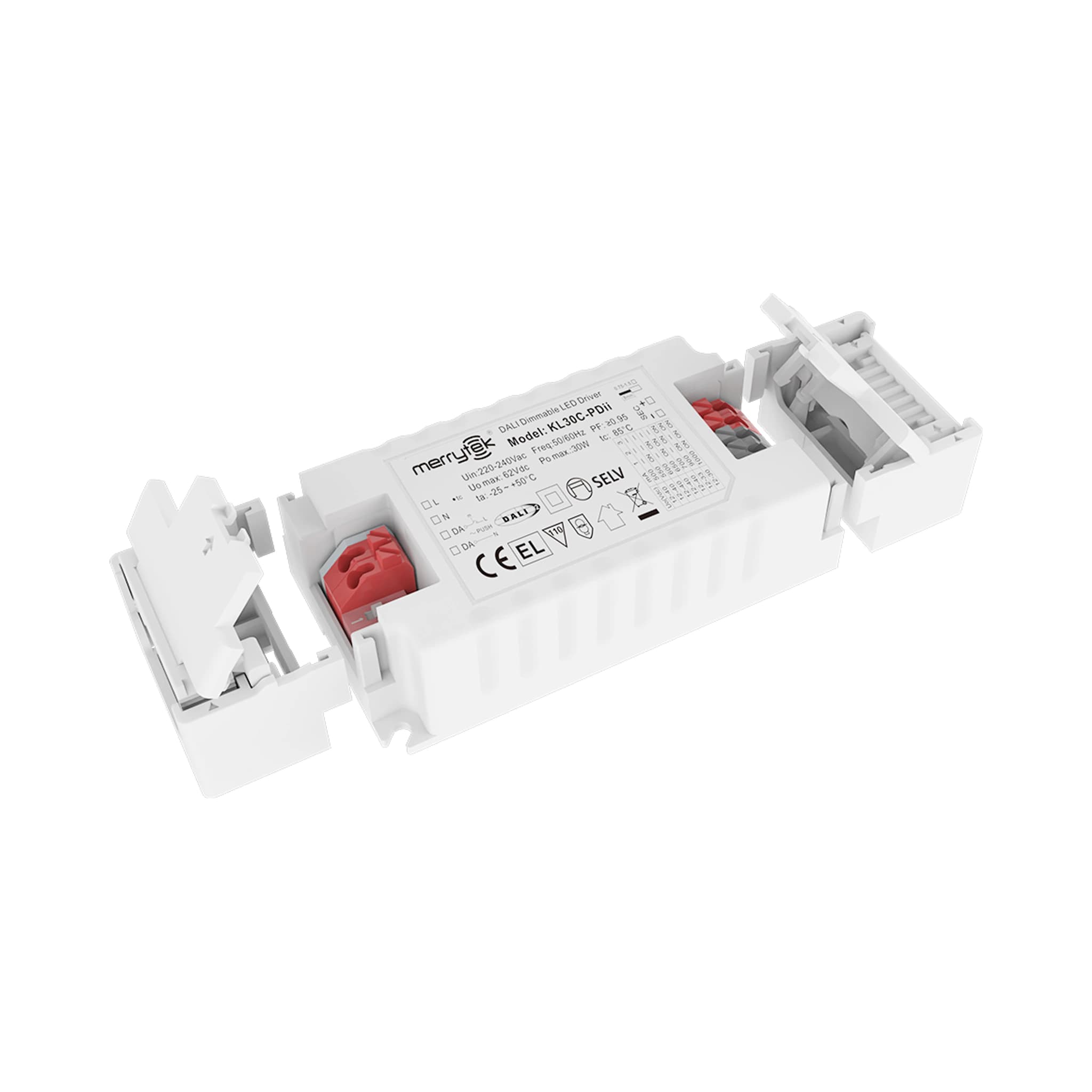

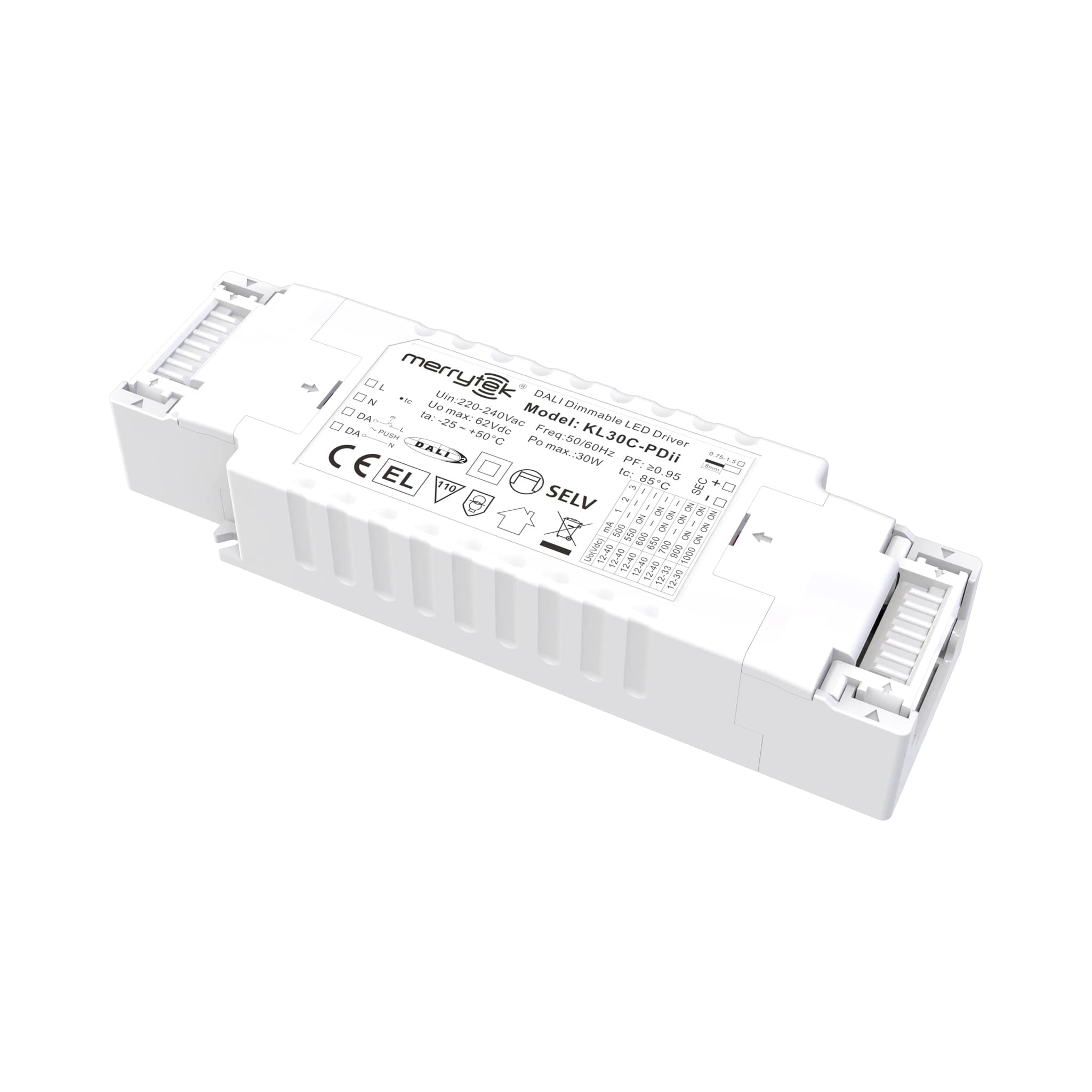

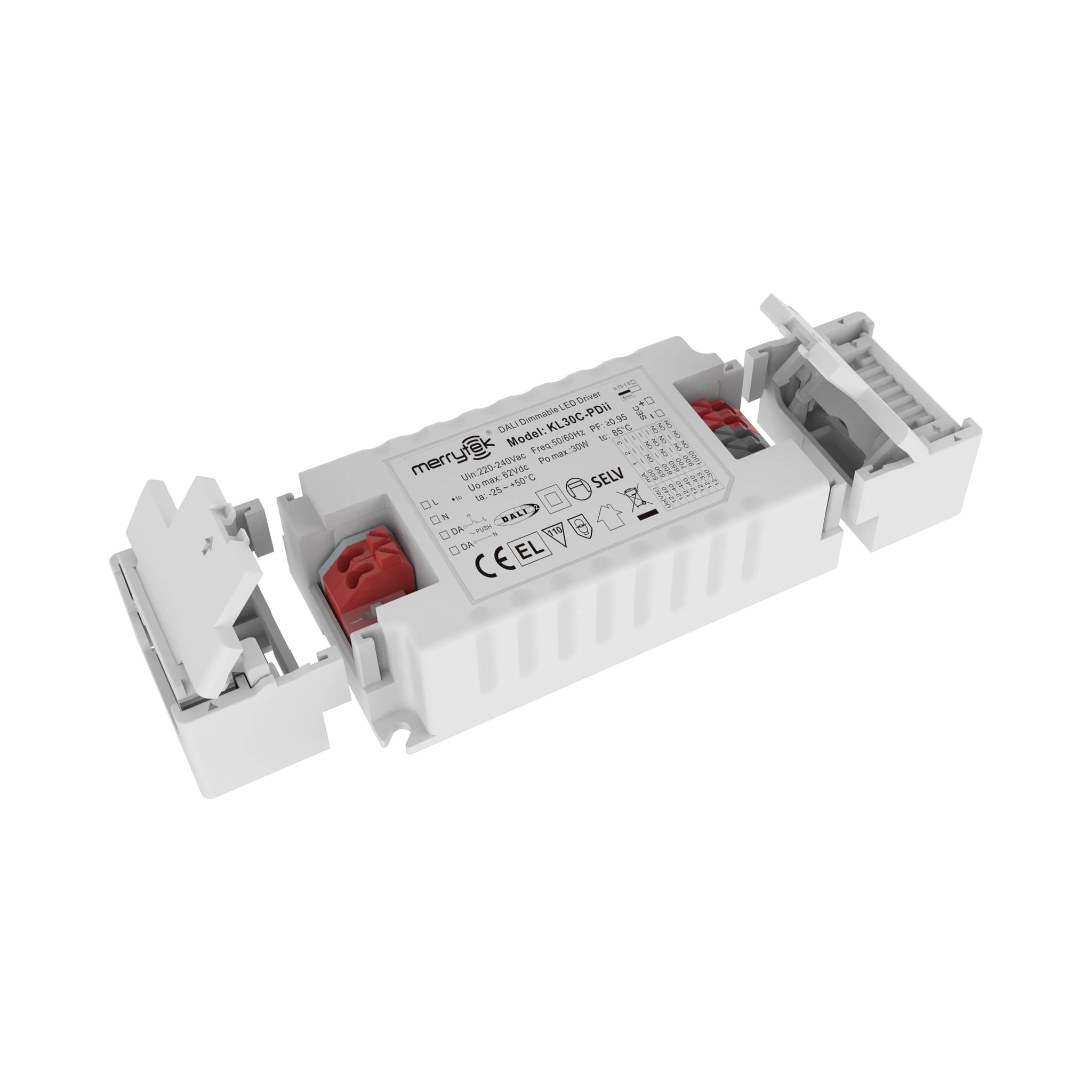

KL30C-PDii
DALI dimming power - DT6
KL30C-PDii is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Junior PUSH, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac, 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 88% Max. @230Vac
- Output current/voltage/power
- 500mA / 12-40Vdc / 20W 550mA / 12-40Vdc / 22W600mA / 12-40Vdc / 24W 650mA / 12-40Vdc / 26W700mA / 12-40Vdc / 28W 900mA / 12-33Vdc / 30W1000mA / 12-30Vdc / 30W
- Safety Standard
- EN61347-1, EN61347-2-13,EN62493,EN60598-1
- EMC standards
- EN55015, EN61547, EN61000-3-2, EN61000-3-3
- DALI standard
- ICE 62386 102, 207, 220, 251, 252, 253
- Certification
- CE
- Operating temperature
- -25℃-+60℃
- IP level
- IP20
- Dimensions
- External: 136*42*24 Internal: 96*42*24
