Smart Drivers

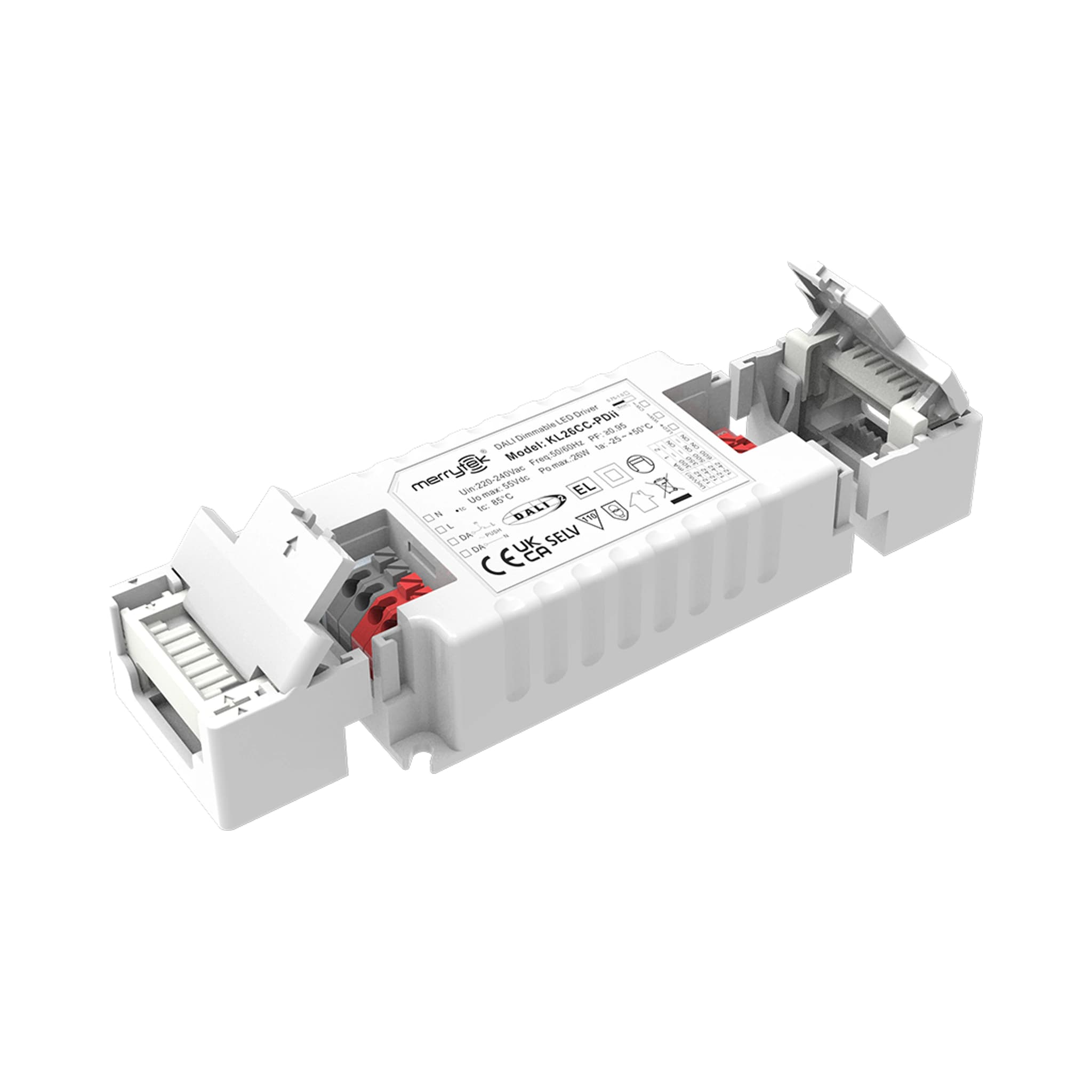

KL26CC-PDii
DALI dimming power - DT8
KL26CC-PDii is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Junior PUSH, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac , 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 85% Max. @230Vac
- Output current/voltage/power
- 300mA / 12-42Vdc / 12.6W350mA / 12-42Vdc / 14.7W500mA / 12-42Vdc / 21W600mA / 12-42Vdc / 25.2W
- Safety Standard
- EN61347-1, EN61347-2-13, EN62493,EN60598-1
- EMC standards
- EN55015, EN61547, EN61000-3-2, EN61000-3-3
- DALI standard
- ICE 62386 102, 209, 251, 252, 253
- Certification
- CE
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- External: 136*42*24 Internal: 96*42*24
