Smart Drivers

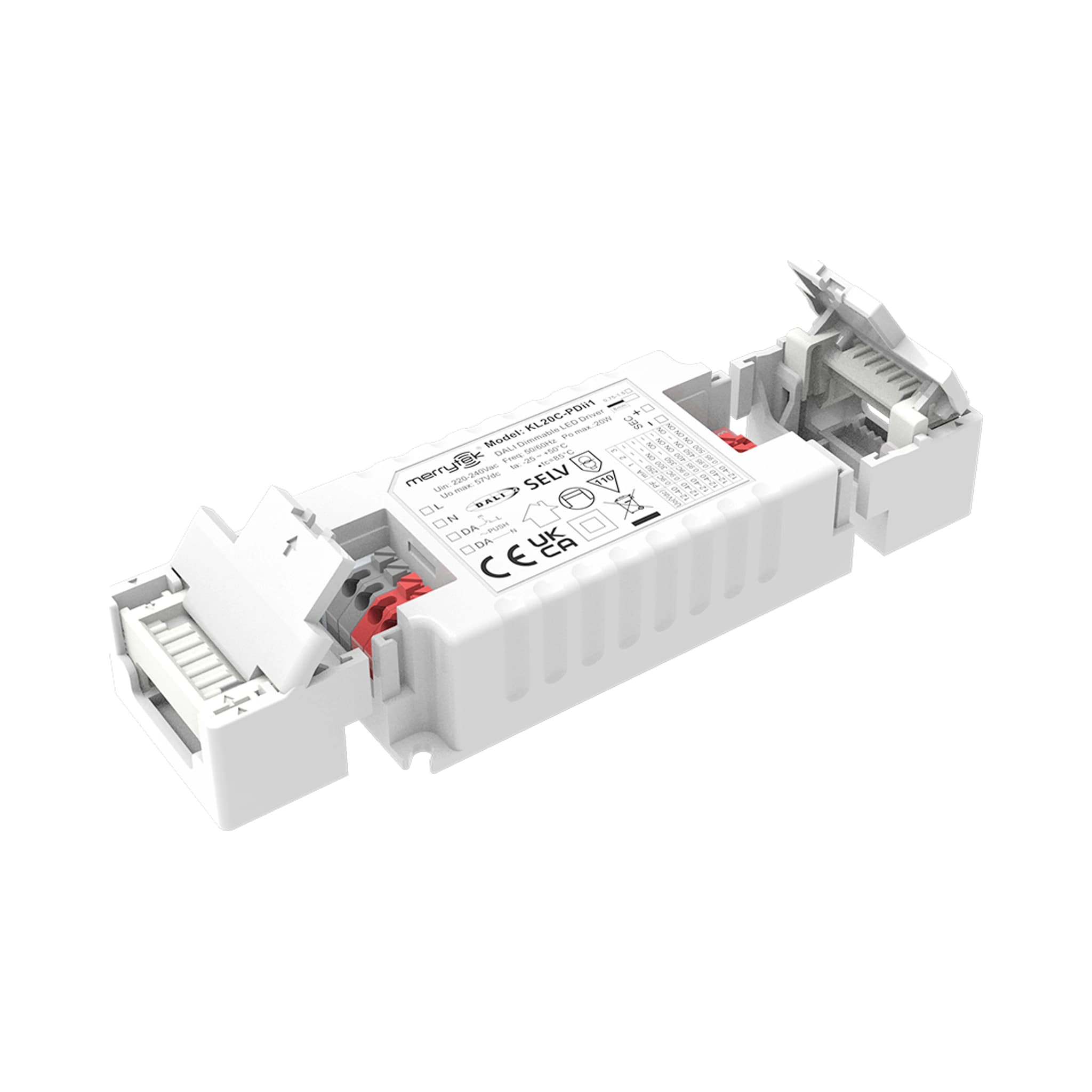

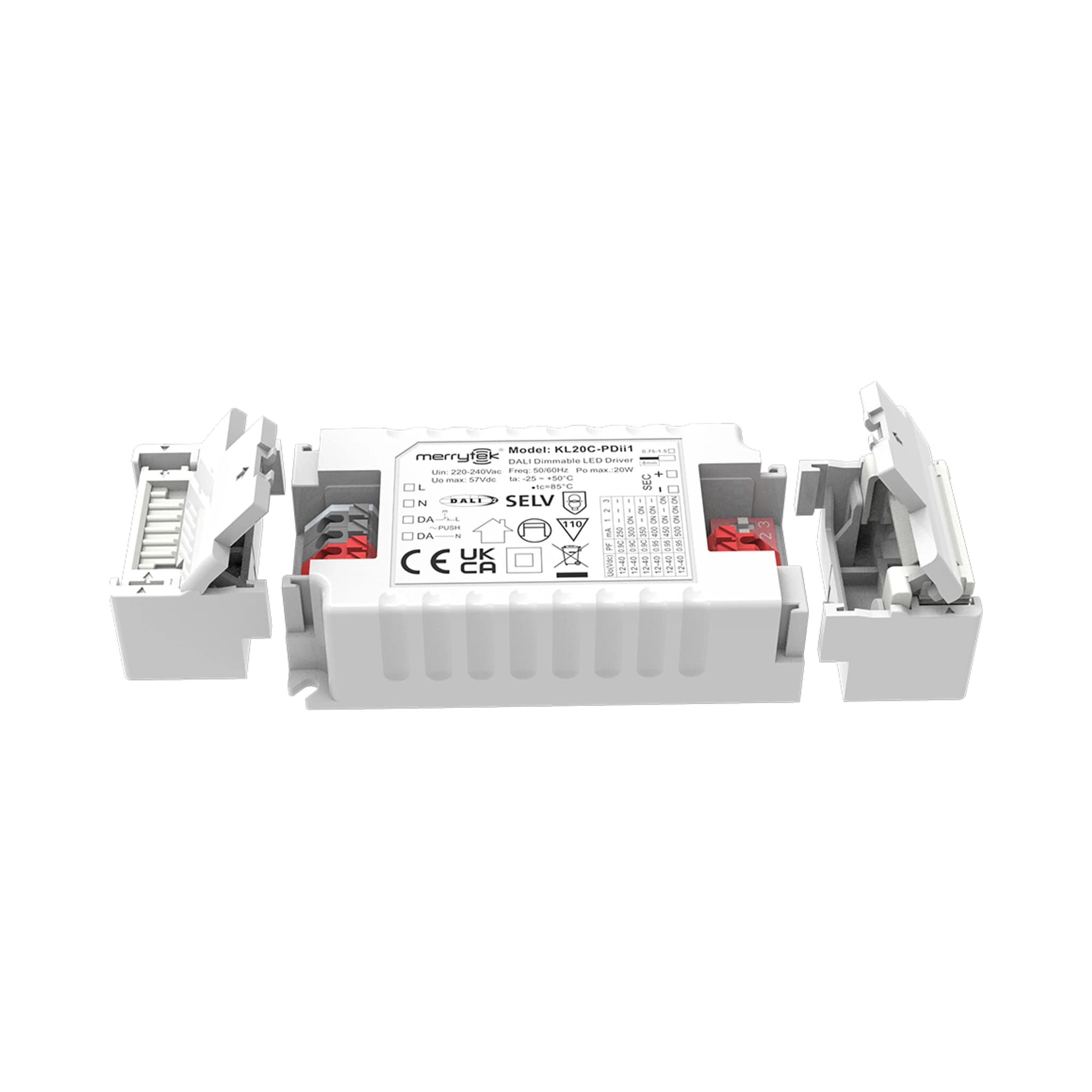

KL20C-PDii1
DALI dimming power - DT6
KL20C-PDii1 is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Junior PUSH, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac, 50Hz / 60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 85% Max. @230Vac
- Output current/voltage/power
- 250mA / 12-40Vdc / 10W 300mA / 12-40Vdc / 12W350mA / 12-40Vdc / 14W 400mA / 12-40Vdc / 16W450mA / 12-40Vdc / 18W 500mA / 12-40Vdc / 20W
- Safety Standard
- EN61347-1, EN61347-2-13
- EMC standards
- EN55015, EN61547, EN61000-3-2, EN61000-3-3
- DALI standard
- ICE 62386 102, 207, 220, 251, 252, 253
- Certification
- CE
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- External: 116*40*22 Internal: 78*40*22
