Smart Drivers

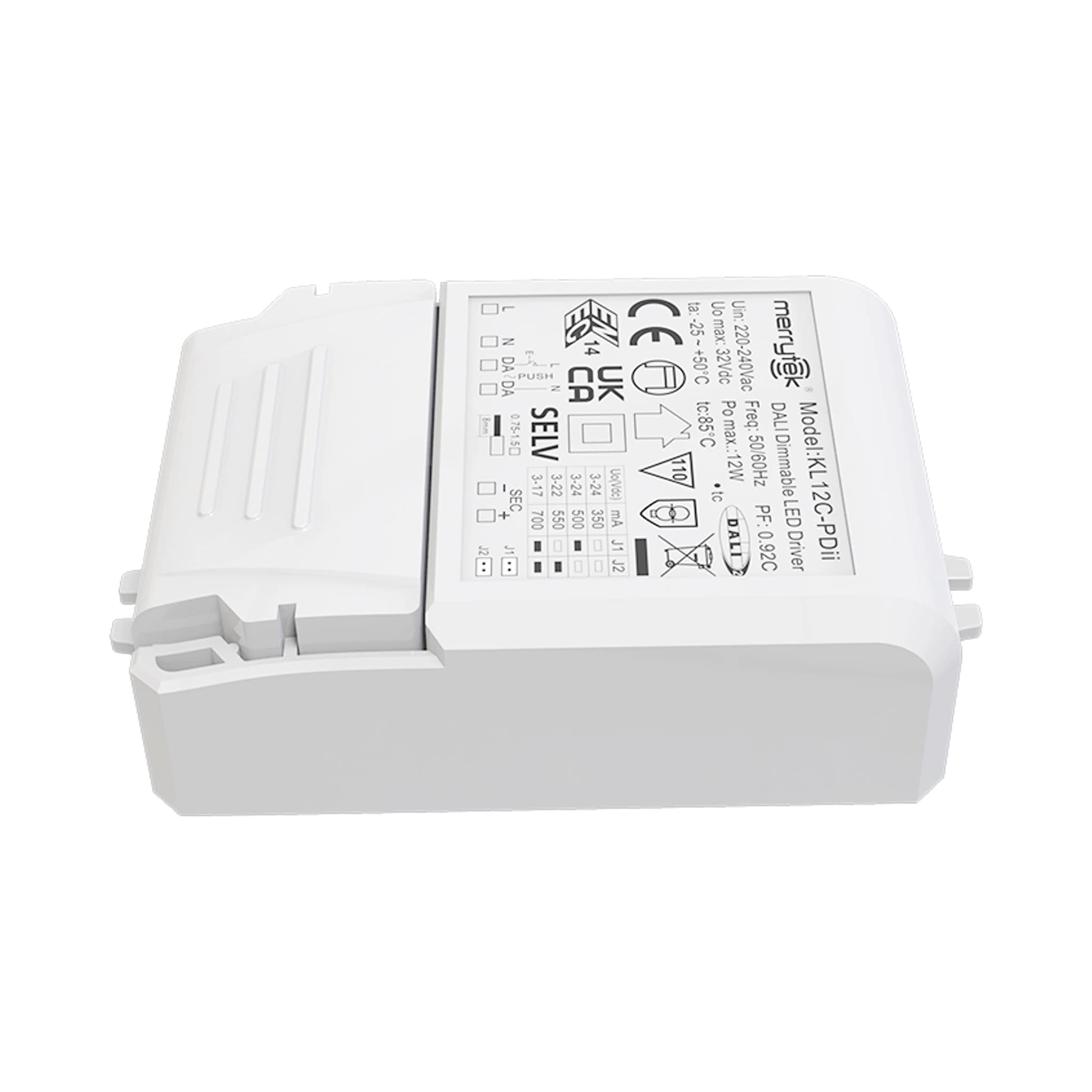

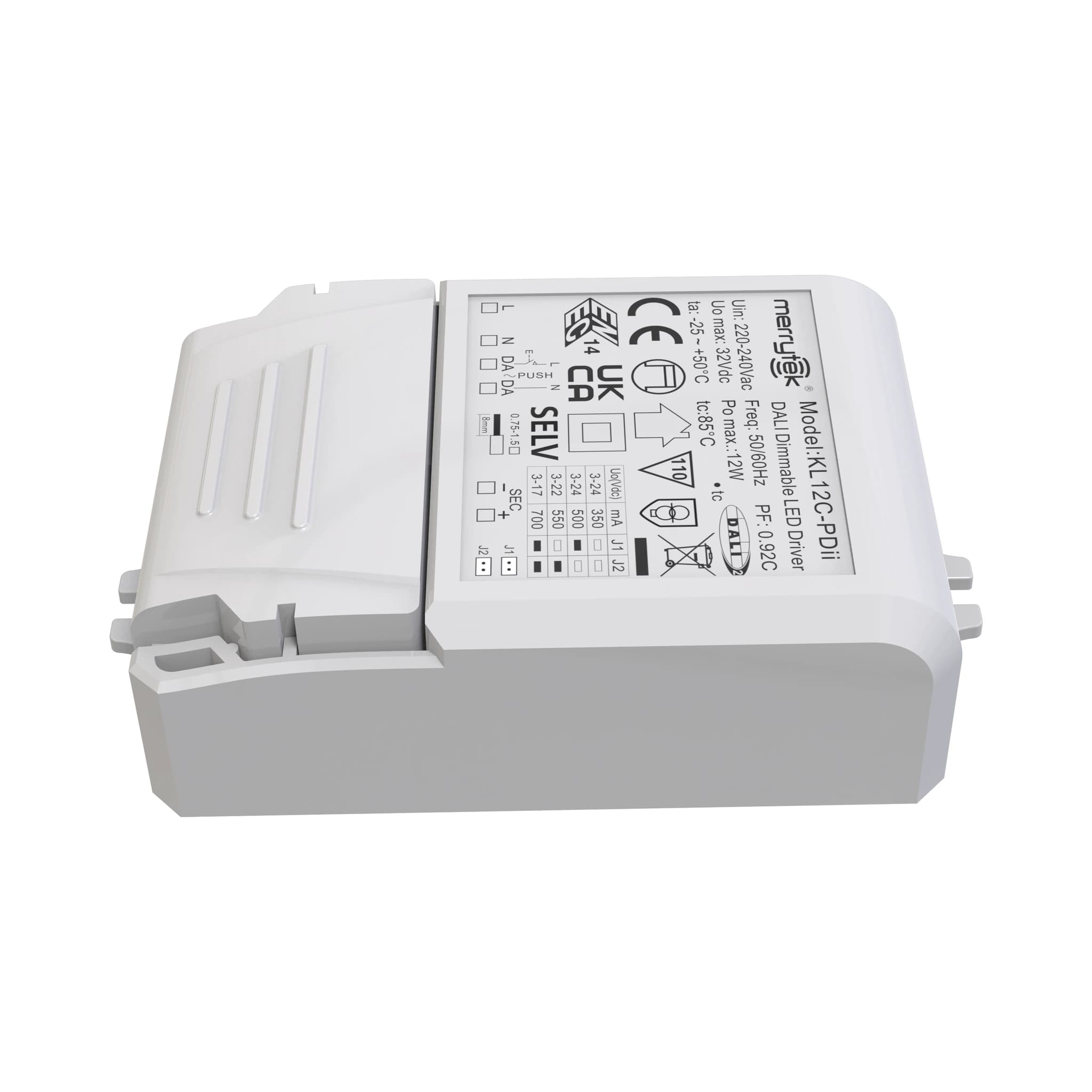

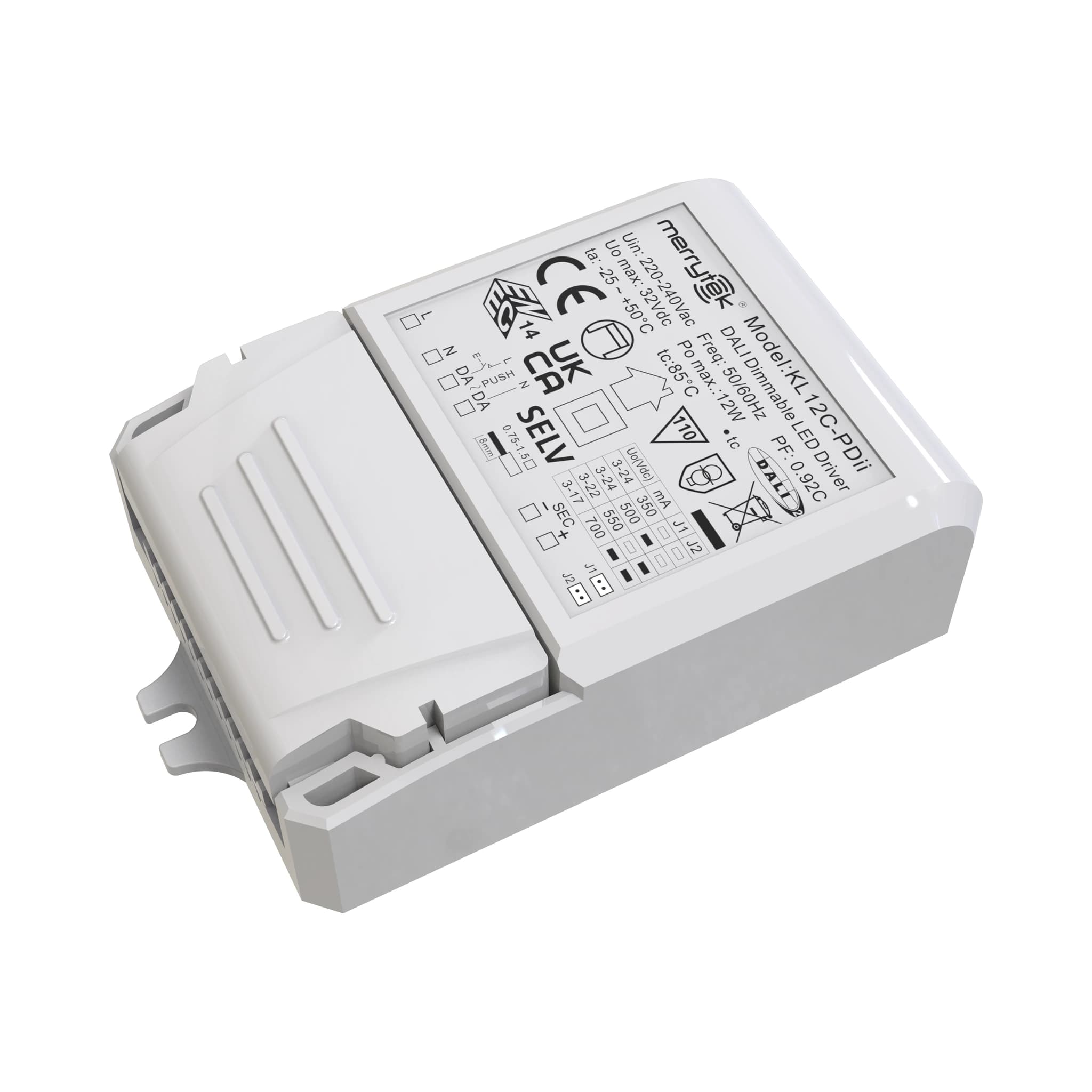

KL12C-PDii
DALI dimming power - DT6
KL12C-PDii is designed for professional lighting-control and building-automation applications. Supported technologies: DALI, IP20.
Verified product data
Specifications
Technical specifications
- Dimming interface
- Junior PUSH, DALI
- Dimming range
- 2%-100%
- Input voltage
- 220-240Vac, 50Hz /60Hz
- Standby power consumption
- <0.5W
- Work efficiency
- 83% Max. @230Vac
- Output current/voltage/power
- 350mA / 3-24Vdc / 8.4W500mA / 3-24Vdc / 12W550mA / 3-22Vdc / 12W700mA / 3-17Vdc / 12W
- Safety Standard
- EN61347-1, EN61347-2-13
- EMC standards
- EN55015, EN61547, EN61000-3-2, EN61000-3-3
- DALI standard
- ICE 62386 102, 207, 251, 252, 253
- Certification
- CE, CB, SAA
- Operating temperature
- -25℃-+50℃
- IP level
- IP20
- Dimensions
- 75*52*25
